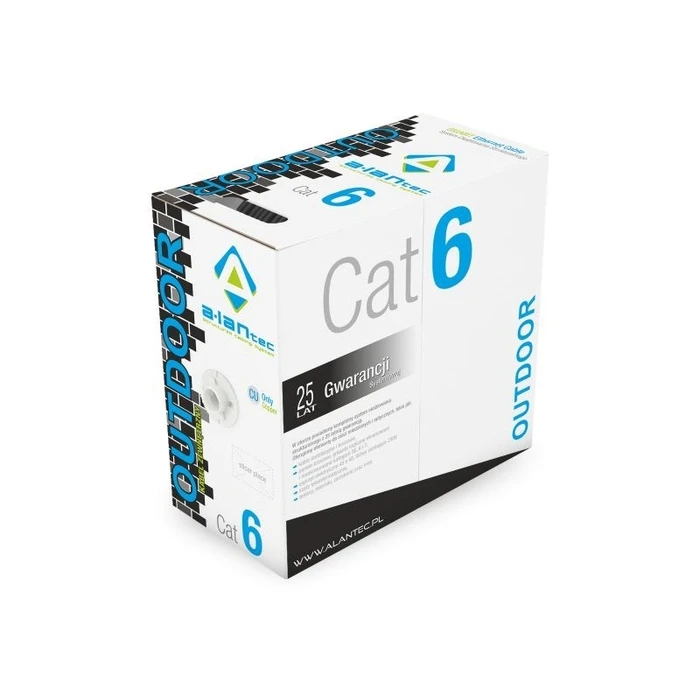

Καλώδιο Δικτύου Alantec U/UTP cat.6 PE 4x2x23AWG 305m EXTERNAL DRY
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Related Products
DIGITUS Fiber Optic Duplex SC to SC MM OM3 Aqua Ceramic Sleeve Coupler
DIGITUS Fiber Optic DIN Rail Box OS2 Equipped with SC Adapter Pigtail
The ALANTEC U/UTP Cat.6 PE 4x2x23AWG 305m External Dry Cable is a high-performance network cable crafted for outdoor installations, particularly in Information and Communication Technology (ICT) networks. This robust cable ensures reliable data transmission through advanced specifications.
Key Features:

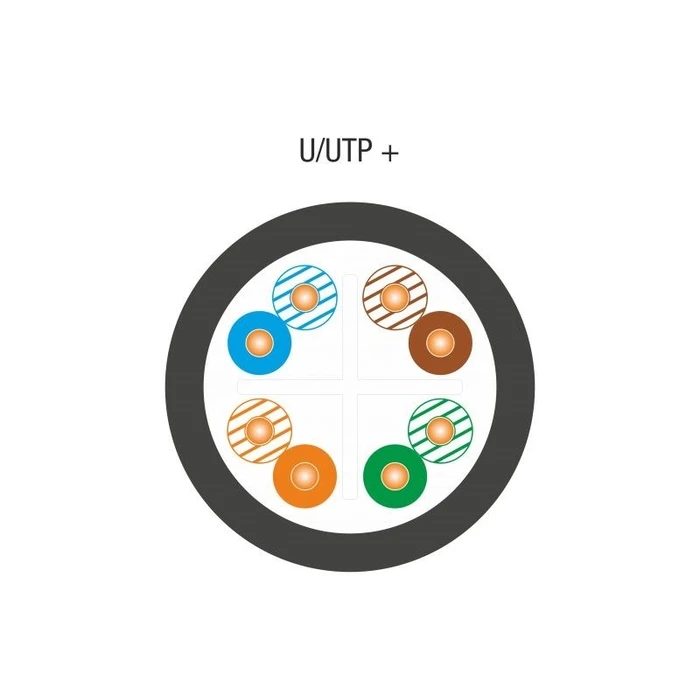

- Category: U/UTP (Unshielded/Unshielded Twisted Pair) Cat.6
- Conductors: 4 pairs of 23 AWG solid bare copper
- Insulation: High Density Polyethylene (HDPE)
- Jacket: Durable Polyethylene (PE)
Technical Specifications:
- Frequency Range: Up to 250 MHz
- Temperature Range: -30°C to +60°C
- Compatibility: Compliant with ANSI/TIA-568-C.2, ISO/IEC 11801, and EN 50173
Designed for outdoor environments, the cable's high-quality materials resist moisture and UV radiation, ensuring longevity. Furthermore, it supports Power over Ethernet (PoE) for devices requiring substantial power, making it an optimal choice for various applications like CCTV systems.
-
CategoryU/UTP Cat.6
-
Conductors4 pairs of 23 AWG solid bare copper
-
InsulationHigh Density Polyethylene (HDPE)
-
JacketPolyethylene (PE)
-
Conductor Diameter0.56 mm
-
Insulation Diameter1.03 mm
-
Outer Jacket Diameter6.4 mm
-
Frequency RangeUp to 250 MHz
-
NEXT72.3 dB/100m
-
PSNEXT70.3 dB/100m
-
ACR72.3 dB/100m
-
PSACR70.3 dB/100m
-
ELFEXT67.8 dB/100m
-
PSELFEXT64.8 dB/100m
-
Return Loss4 dB/100m
-
Delay Skew40 ns/100m
-
Operating Temperature-30°C to +60°C
-
Installation Temperature0°C to +50°C
-
Minimum Bend Radius (Stationary Installation)23 mm
-
Minimum Bend Radius (Installation)46 mm
-
Maximum Pull Tension80 N
-
Standards ComplianceANSI/TIA-568-C.2, ISO/IEC 11801, EN 50173
-
Power over Ethernet (PoE)Up to 90W
-
CertificationCPR Euroclass Eca, UKCA Class Eca
Ratings
Description
The ALANTEC U/UTP Cat.6 PE 4x2x23AWG 305m External Dry Cable is a high-performance network cable crafted for outdoor installations, particularly in Information and Communication Technology (ICT) networks. This robust cable ensures reliable data transmission through advanced specifications.
Key Features:
- Category: U/UTP (Unshielded/Unshielded Twisted Pair) Cat.6
- Conductors: 4 pairs of 23 AWG solid bare copper
- Insulation: High Density Polyethylene (HDPE)
- Jacket: Durable Polyethylene (PE)
Technical Specifications:
- Frequency Range: Up to 250 MHz
- Temperature Range: -30°C to +60°C
- Compatibility: Compliant with ANSI/TIA-568-C.2, ISO/IEC 11801, and EN 50173
Designed for outdoor environments, the cable's high-quality materials resist moisture and UV radiation, ensuring longevity. Furthermore, it supports Power over Ethernet (PoE) for devices requiring substantial power, making it an optimal choice for various applications like CCTV systems.
Technical Specifications
-
CategoryU/UTP Cat.6
-
Conductors4 pairs of 23 AWG solid bare copper
-
InsulationHigh Density Polyethylene (HDPE)
-
JacketPolyethylene (PE)
-
Conductor Diameter0.56 mm
-
Insulation Diameter1.03 mm
-
Outer Jacket Diameter6.4 mm
-
Frequency RangeUp to 250 MHz
-
NEXT72.3 dB/100m
-
PSNEXT70.3 dB/100m
-
ACR72.3 dB/100m
-
PSACR70.3 dB/100m
-
ELFEXT67.8 dB/100m
-
PSELFEXT64.8 dB/100m
-
Return Loss4 dB/100m
-
Delay Skew40 ns/100m
-
Operating Temperature-30°C to +60°C
-
Installation Temperature0°C to +50°C
-
Minimum Bend Radius (Stationary Installation)23 mm
-
Minimum Bend Radius (Installation)46 mm
-
Maximum Pull Tension80 N
-
Standards ComplianceANSI/TIA-568-C.2, ISO/IEC 11801, EN 50173
-
Power over Ethernet (PoE)Up to 90W
-
CertificationCPR Euroclass Eca, UKCA Class Eca
