Αναλυτής Ενέργειας Solplanet 3 Phase for Inverters / Eastron SDM630-MCT

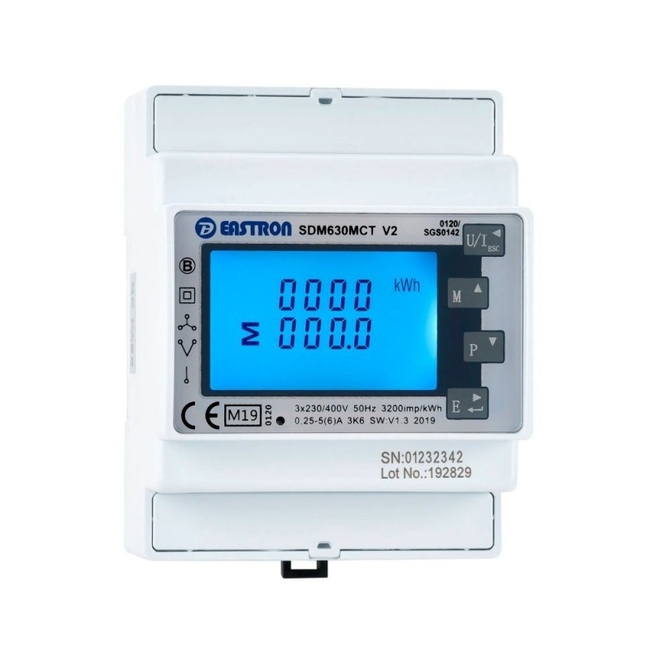

The Solplanet 3 Phase Energy Analyzer / Eastron SDM630-MCT is engineered as a multifunctional energy meter that provides in-depth monitoring and analysis of electrical parameters specifically for solar photovoltaic installations. This device seamlessly integrates with Solplanet inverters, offering essential insights that aid in energy management strategies.
Key Features:
- Voltage (AC nominal): 3 ? 230/400 VAC with a range from 50 to 600 VAC.
- Current input: Primary range from 1 to 9999 A and secondary options for 100 mA or 100 mV.
- Frequency: Rated at 50/60 Hz, operational within 45 to 65 Hz.
- Power consumption: ? 2 W / 10 VA, ensuring high efficiency.
- Display: Readable LCD screen with white backlighting for easy visibility.
- Max readings: Capacity to handle up to 99,999,999 kWh/kVArh.
- Accuracy: Industrial-grade durability with voltage withstand up to 4 kV.
- Operating Environment: Functional from -25°C to +55°C and storage from -40°C to +70°C.
- Communication: Equipped with an RS485 Modbus RTU interface.
- Installation: Easy DIN rail mounting with secure RJ12 connections.
This device is perfect for users requiring precise energy analysis across multiple channels, making it suitable for various three-phase electrical systems.
-
Voltage (AC nominal)3 ? 230/400 VAC
-
Voltage Range50 to 600 VAC
-
Primary Current Input1 to 9999 A
-
Secondary Current Input100 mA or 100 mV
-
Overcurrent Tolerance20 times Imax for 0.5 seconds
-
Frequency Rated50/60 Hz
-
Operational Frequency Range45 to 65 Hz
-
Power Consumption? 2 W / 10 VA
-
Max Readings99,999,999 kWh/kVArh
-
Voltage Withstandup to 4 kV for 1 minute
-
Impulse Voltage Withstand6 kV (1.2΅S waveform)
-
Operating Temperature-25°C to +55°C
-
Storage Temperature-40°C to +70°C
-
Relative Humidity0-95% non-condensing
-
Communication TypeRS485 Modbus RTU
-
Installation TypeDIN rail mountable with RJ12 connection
Ratings
Description
The Solplanet 3 Phase Energy Analyzer / Eastron SDM630-MCT is engineered as a multifunctional energy meter that provides in-depth monitoring and analysis of electrical parameters specifically for solar photovoltaic installations. This device seamlessly integrates with Solplanet inverters, offering essential insights that aid in energy management strategies.
Key Features:
- Voltage (AC nominal): 3 ? 230/400 VAC with a range from 50 to 600 VAC.
- Current input: Primary range from 1 to 9999 A and secondary options for 100 mA or 100 mV.
- Frequency: Rated at 50/60 Hz, operational within 45 to 65 Hz.
- Power consumption: ? 2 W / 10 VA, ensuring high efficiency.
- Display: Readable LCD screen with white backlighting for easy visibility.
- Max readings: Capacity to handle up to 99,999,999 kWh/kVArh.
- Accuracy: Industrial-grade durability with voltage withstand up to 4 kV.
- Operating Environment: Functional from -25°C to +55°C and storage from -40°C to +70°C.
- Communication: Equipped with an RS485 Modbus RTU interface.
- Installation: Easy DIN rail mounting with secure RJ12 connections.
This device is perfect for users requiring precise energy analysis across multiple channels, making it suitable for various three-phase electrical systems.
Technical Specifications
-
Voltage (AC nominal)3 ? 230/400 VAC
-
Voltage Range50 to 600 VAC
-
Primary Current Input1 to 9999 A
-
Secondary Current Input100 mA or 100 mV
-
Overcurrent Tolerance20 times Imax for 0.5 seconds
-
Frequency Rated50/60 Hz
-
Operational Frequency Range45 to 65 Hz
-
Power Consumption? 2 W / 10 VA
-
Max Readings99,999,999 kWh/kVArh
-
Voltage Withstandup to 4 kV for 1 minute
-
Impulse Voltage Withstand6 kV (1.2΅S waveform)
-
Operating Temperature-25°C to +55°C
-
Storage Temperature-40°C to +70°C
-
Relative Humidity0-95% non-condensing
-
Communication TypeRS485 Modbus RTU
-
Installation TypeDIN rail mountable with RJ12 connection
