The AMS AWS-144M is a compact antenna amplifier for home TV installations. Frequency range: 87–694 MHz with integrated LTE filter. F-type connector, 75 Ω impedance, adjustable gain and attenuation control, and low noise figure. Power supply: 12 VDC / 150 mA (power supply not included). Can be...
More

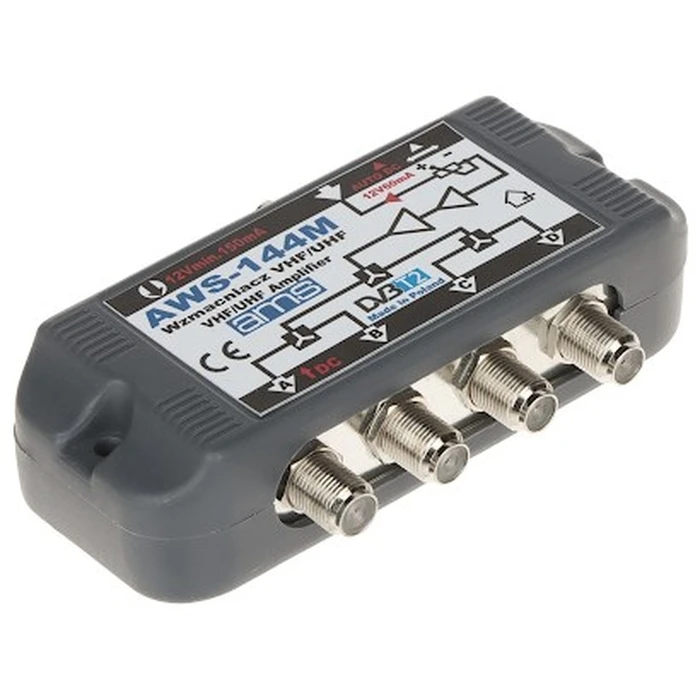

AMS AWS-144M Antenna Amplifier
Product Code: 1127730072
Upon Order
47,74 €
or
1,49€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 144 Loyalty Points
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The AMS AWS-144M is a compact antenna amplifier for home TV installations. Frequency range: 87–694 MHz with integrated LTE filter. F-type connector, 75 Ω impedance, adjustable gain and attenuation control, and low noise figure. Power supply: 12 VDC / 150 mA (power supply not included). Can be powered via coax (AUTO DC LED indicator). Maximum recommended current supply for an additional amplifier: 60 mA. Compact dimensions and lightweight design make it suitable for indoor antenna setups to improve reception of digital and analog TV signals.
-
BrandAMS
-
ModelAWS-144M
-
Frequency range87 MHz - 694 MHz
-
Integrated filterLTE filter (built-in)
-
Inputs / Outputs1 / 4
-
Impedance75 Ω
-
Connector typeF-type
-
Gain14 / 17 dB ± 1.5 dB
-
Attenuation control0 ... 10 dB ± 2 dB
-
Noise figure (Φασματικός θόρυβος)≤ 4 dB
-
Maximum output level (2kTV)100 dBµV
-
IMA3 60dB94 dBµV
-
IMA2 60dB81 dBµV
-
Return loss (Επιστροφή απωλειών)≥ 10 dB
-
Operating temperature-25 °C ... 55 °C
-
Power supply12 VDC / 150 mA (power supply not included)
-
Can be powered via coaxYes (AUTO DC, LED indicator)
-
Maximum current available for downstream amplifier60 mA
-
Weight0.09 kg
-
Product dimensions111 x 64 x 28 mm
Ratings
Description
The AMS AWS-144M is a compact antenna amplifier for home TV installations. Frequency range: 87–694 MHz with integrated LTE filter. F-type connector, 75 Ω impedance, adjustable gain and attenuation control, and low noise figure. Power supply: 12 VDC / 150 mA (power supply not included). Can be powered via coax (AUTO DC LED indicator). Maximum recommended current supply for an additional amplifier: 60 mA. Compact dimensions and lightweight design make it suitable for indoor antenna setups to improve reception of digital and analog TV signals.
Technical Specifications
-
BrandAMS
-
ModelAWS-144M
-
Frequency range87 MHz - 694 MHz
-
Integrated filterLTE filter (built-in)
-
Inputs / Outputs1 / 4
-
Impedance75 Ω
-
Connector typeF-type
-
Gain14 / 17 dB ± 1.5 dB
-
Attenuation control0 ... 10 dB ± 2 dB
-
Noise figure (Φασματικός θόρυβος)≤ 4 dB
-
Maximum output level (2kTV)100 dBµV
-
IMA3 60dB94 dBµV
-
IMA2 60dB81 dBµV
-
Return loss (Επιστροφή απωλειών)≥ 10 dB
-
Operating temperature-25 °C ... 55 °C
-
Power supply12 VDC / 150 mA (power supply not included)
-
Can be powered via coaxYes (AUTO DC, LED indicator)
-
Maximum current available for downstream amplifier60 mA
-
Weight0.09 kg
-
Product dimensions111 x 64 x 28 mm
