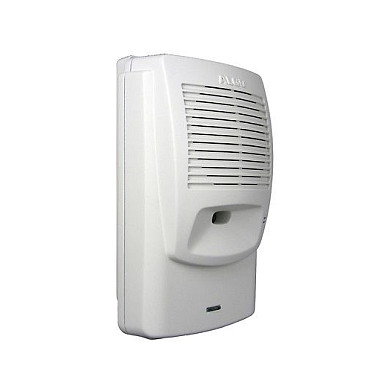

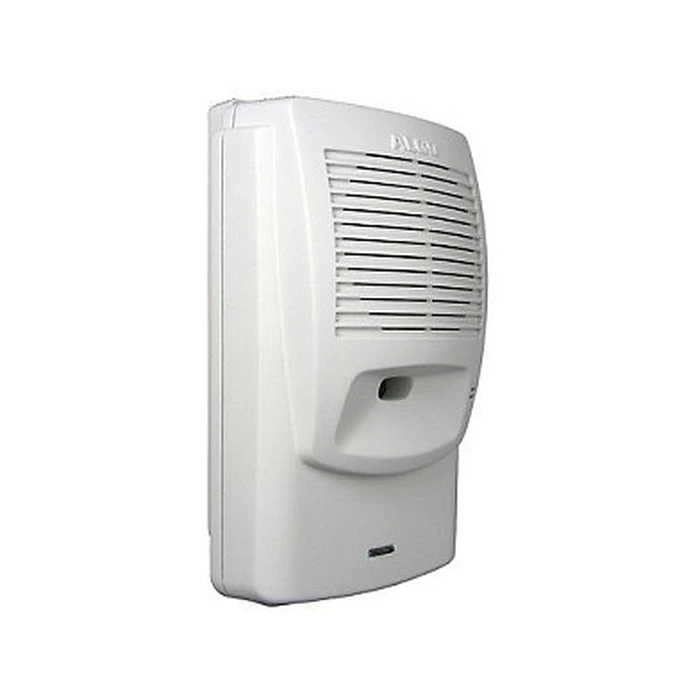

ALGO 8180 IP Audio Alerter

Description

Technical Specifications

• Brand
  ALGO (Algo Communication)
• Model / MPN
  8180
• SKU
  21132346
• EAN / Barcode
  0628123910008
• Product Type
  SIP IP Audio Alerter / IP speaker / Paging speaker
• Category
  Netzwerk > Netzwerkartikel
• Power Source
  Power over Ethernet (IEEE 802.3af, 48 V PoE Class 0)
• Maximum Power Consumption
  12.95 W
• Idle Power Consumption
  1 W
• Audio Codec
  G.722 wideband HD audio (also supports narrowband codecs)
• Speaker Output
  8 W RMS into 8 Ω (documentation notes some variants list 5.5 W RMS)
• Sound Pressure Level (internal)
  ~106 dBA
• Sound Pressure Level (external horn)
  up to 120 dBA (with optional external horn)
• Ambient Noise Compensation
  SoundSure™ (built-in microphone for level adjustment)
• Paging / Multicast
  Multicast send/receive, master/slave paging, up to 50 page zones
• SIP Support
  Two SIP extensions (ring detection + auto-answer paging), RFC3261 compliant
• Security
  TLS and SRTP support for Secure SIP, HTTPS for web configuration
• Interfaces
  PoE RJ45, relay output (30 V, 50 mA max), speaker/line outputs, built-in mic
• Memory / Audio Storage
  Product sheet: 1 GB internal memory (some user guides reference 3 MB for older firmware/hardware)
• Provisioning / Configuration
  Web interface, HTTPS, auto-provisioning supported
• Dimensions (product)
  7 in x 4 in x 2 in (approx. 17.8 x 10.2 x 5.1 cm)
• Weight (product)
  695 g
• Certifications
  CE, FCC, RoHS, EN60950 (reported), CSA (USA & Canada), IEEE 802.3
• Environment / Mounting
  Indoor dry location, wiring inside building perimeter
• Manufacturer Part Number (MPN)
  8180
