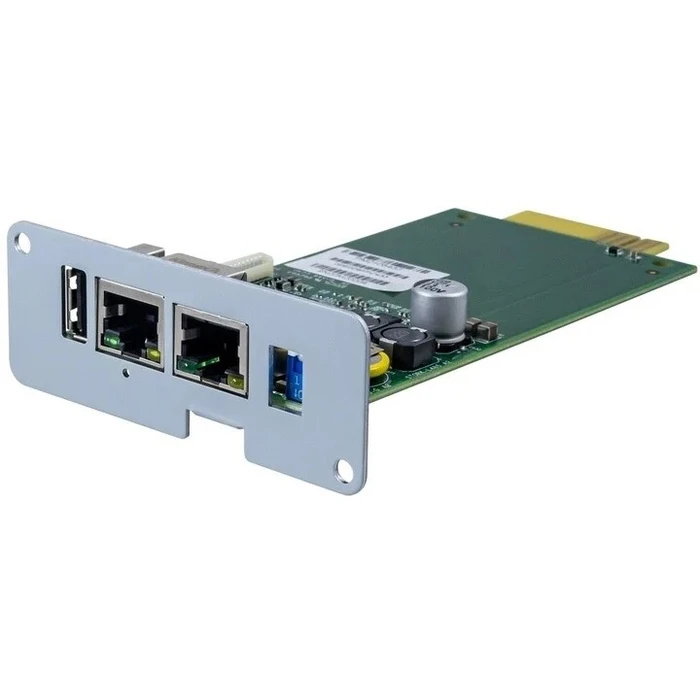

The SNMP card CS102 SK 311058 is a specialized network management card crafted by Legrand for effective management of Uninterruptible Power Supply (UPS) systems.

This advanced card allows users to monitor and control their UPS systems using various protocols, including SNMP (Simple Network Management Protocol), HTTP, and MODBUS. It is essential for administrators to efficiently set up network configurations and manage communication protocols for enhanced security.

Key Features:

• Power Supply: Operates within +5.5 Vdc to +40 Vdc with a maximum consumption of 3 watts.
• Dimensions: 68 mm (W) x 133 mm (D) x 43 mm (H).
• Weight: Approximately 69 grams.
• Protocols Supported: SNMP, HTTP, MODBUS for Ethernet management.

The card's configuration flexibility allows administrators to set up IP settings and protocol ports, enhancing network security by enabling only necessary protocols.

SNMP Settings:

• Control: Default enabled.
• Port: 161.
• On Battery Trap Repeat Time: 1.

Additionally, the card provides SMTP and SSH settings to further streamline communication:

• SMTP Control: Default enabled.
• SMTP Port: 25.
• SSH Control: Default disabled.
• SSH Port: 22.

This SNMP card significantly enhances the management capabilities of UPS systems through a robust and secure network management solution.
