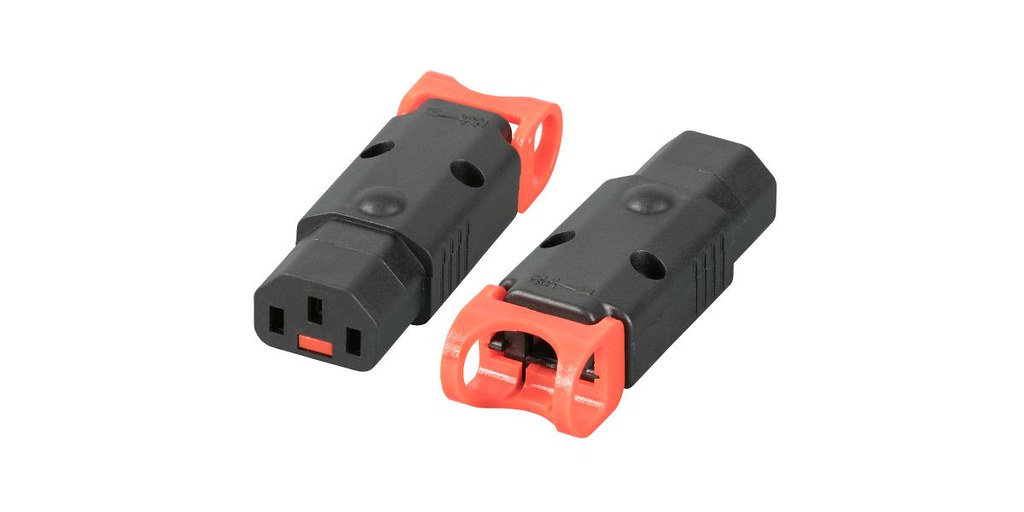

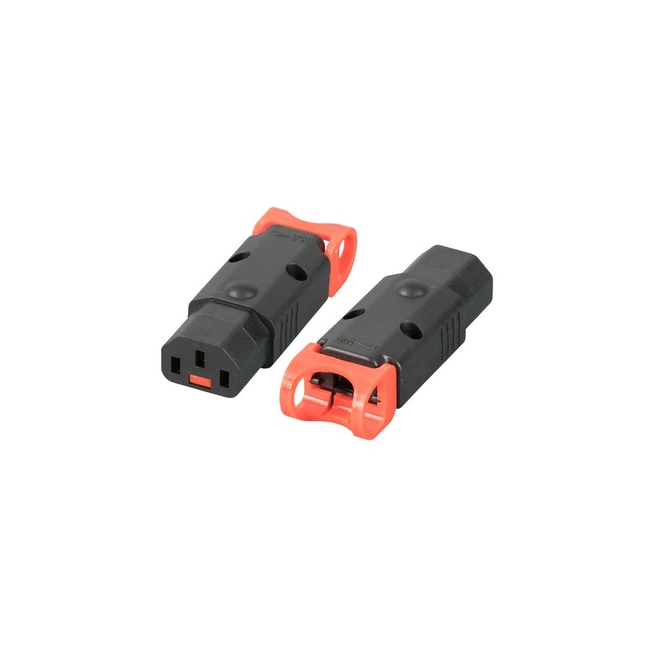

The EFB tamper-proof IEC-Lock+ C13 power inlet is a high-quality locking connector designed for secure power connections. Engineered to prevent accidental disconnections due to vibration or tampering, it is ideal for demanding environments such as data centers and industrial applications.
Featuring a unique internal locking mechanism, this connector securely mates with standard C14 IEC inlets without the need for modified equipment. It is rewireable, allowing for easy replacement or customization of cables, and constructed from durable low-smoke, zero-halogen (LSZH) materials for enhanced safety.
- Tamper-Proof Locking: Ensures a secure connection against unauthorized disconnection.
- Universal Compatibility: Compatible with all standard C14 IEC inlets.
- Rewireable: Facilitates easy cable maintenance.
- Enhanced Safety: Low Smoke Zero Halogen materials minimize risk in fire scenarios.
- High Withdrawal Force: Designed to withstand significant tension.
This EFB IEC-Lock+ C13 power inlet is a robust solution that emphasizes reliability and safety in every application.
-
Connector TypeIEC-Lock+ C13 (rewireable, locking)
-
Inlet CompatibilityStandard C14 IEC inlet
-
Rated Current10A (IEC/ENEC), 15A (UL/CSA)
-
Rated Voltage250V AC (IEC/ENEC), 125V AC (UL/CSA)
-
Terminal Capacity3-core, up to 1.5mm² (AWG 16)
-
Terminal Screw Torque0.4 Nm
-
Strain Relief Clamping Screw Torque0.3 Nm
-
Dielectric Strength1.5 kV (typical)
-
Withdrawal Force>100 N (typical)
-
Locking MechanismPull-back locking system (tamper-proof)
-
Housing MaterialNylon (PA66) LSZH (RAL 9004 Signal Black)
-
Cable RestraintNylon (PA66)
-
Temperature Range-25°C to +70°C (operation and storage)
-
Protection CategoryIP20 (IEC 60529)
-
High Potential Test Voltage2000 VAC (1 min, 50 Hz) between P–PE and P–N
-
CertificationsENEC, UL, CSA
