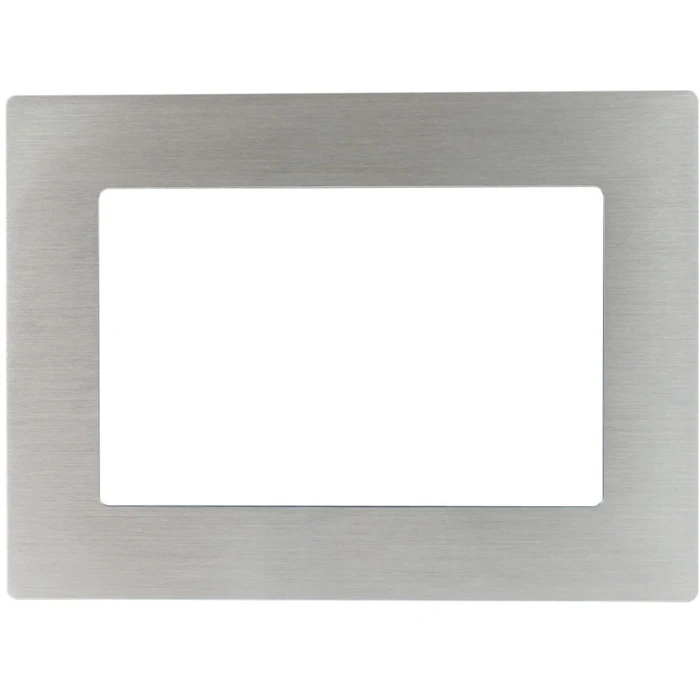

Αξεσουάρ Tablet Allnet 10" Blende for Einbaurahmen, Silver wide
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Transceiver TP-Link ISM311LM network Fiber optic 1.25 Mbit/s SFP 850 nm
Converter TP-Link Omada MC211CS-2 network media 1000 Mbit/s 1310 nm Single-mode Black
Converter TP-Link Omada MC212CS-2 network media 1000 Mbit/s 1550 nm Single-mode Black
Converter Planet 4-Port 1G Ethernet PoE to VDSL2 Extender IVC-234GPT
Converter Planet 10/100TX - 100Base-FX (SC) Single Mode Bridge Fiber

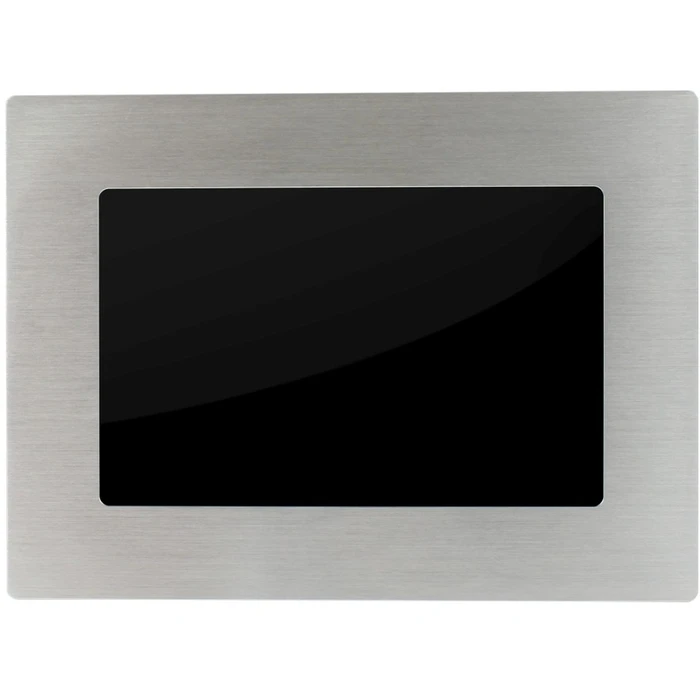

The ALLNET Touch Display Tablet 10 Zoll zbh. Blende f?r Einbaurahmen, silber breit is an advanced display solution tailored for seamless integration into building automation and telephony systems. This device stands out with its multifaceted capabilities and modern features designed to enhance user experience.
Featuring a 10-inch IPS LCD capacitive touch screen, the tablet is both user-friendly and highly responsive. It can function as a standalone unit or be incorporated into various applications, providing flexibility in its usage.
Key Technical Specifications:
- Front Panel: Plastic design for durability
- RAM / ROM: Options of 4GB or 16GB for smooth performance
- Display: 10-inch IPS LCD, resolution 1280x800 pixels
- Wi-Fi: IEEE802.11 b/g/n at 2.4GHz for reliable connectivity
- BLE: Supports Bluetooth Low Energy (BLE) 4.2
- Microphone: Sensitive microphone with -26dB sensitivity
It includes performance features like dual speakers (4W/3W) for audio output, a Micro SD slot for storage expansion, and an RS485 port for serial communication. The dimensions of the device are 251x182.5x29.75mm, making it compact and suitable for various installation environments.
Additional Features:
- SIP Integration: Use as a PBX phone with systems like Fritz Box
- Touch to Wake: Device activates upon touch for efficiency
- SOS Function: Configurable for emergency services
The ALLNET Touch Display Tablet is ultimately a versatile device made for enhancing automation workflows, equipped with robust technical features and user-centered design.
-
Front PanelPlastic
-
RAM4GB or 16GB
-
ROM4GB or 16GB
-
Display Size10 inch
-
Display Resolution1280x800 pixels
-
Contrast Ratio900:1
-
Luminance350 cd/m²
-
Viewing Angle80°
-
Touch ScreenCapacitive
-
Wi-FiIEEE802.11 b/g/n at 2.4GHz
-
BLE Version4.2
-
Micro SD Slot1
-
RS485 PortYes
-
Relays Out2
-
Bell In1
-
Microphone Sensitivity-26dB
-
Speaker Power Output4W/3W
-
Ethernet Port1 RJ45
-
Ethernet Speed10/100Mbps
-
PoE Support802.3af
-
Power SupplyPoE or 12V DC
-
Tamper ResistantYes
-
Dimensions251x182.5x29.75 mm
-
Working Humidity10% to 90%
-
Working Temperature-10°C to +45°C
-
Storage Temperature-20°C to +70°C
-
Display ModeNormally black and transmissive
-
Aspect Ratio16:10
-
Protocols SupportedIPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
-
Auto-ProvisioningYes
-
Web Management PortalYes
-
Web-Based Packet DumpYes
-
Configuration Backup/RestoreYes
-
Firmware UpgradeYes
-
System LogsYes
Ratings
Description
The ALLNET Touch Display Tablet 10 Zoll zbh. Blende f?r Einbaurahmen, silber breit is an advanced display solution tailored for seamless integration into building automation and telephony systems. This device stands out with its multifaceted capabilities and modern features designed to enhance user experience.
Featuring a 10-inch IPS LCD capacitive touch screen, the tablet is both user-friendly and highly responsive. It can function as a standalone unit or be incorporated into various applications, providing flexibility in its usage.
Key Technical Specifications:
- Front Panel: Plastic design for durability
- RAM / ROM: Options of 4GB or 16GB for smooth performance
- Display: 10-inch IPS LCD, resolution 1280x800 pixels
- Wi-Fi: IEEE802.11 b/g/n at 2.4GHz for reliable connectivity
- BLE: Supports Bluetooth Low Energy (BLE) 4.2
- Microphone: Sensitive microphone with -26dB sensitivity
It includes performance features like dual speakers (4W/3W) for audio output, a Micro SD slot for storage expansion, and an RS485 port for serial communication. The dimensions of the device are 251x182.5x29.75mm, making it compact and suitable for various installation environments.
Additional Features:
- SIP Integration: Use as a PBX phone with systems like Fritz Box
- Touch to Wake: Device activates upon touch for efficiency
- SOS Function: Configurable for emergency services
The ALLNET Touch Display Tablet is ultimately a versatile device made for enhancing automation workflows, equipped with robust technical features and user-centered design.
Technical Specifications
-
Front PanelPlastic
-
RAM4GB or 16GB
-
ROM4GB or 16GB
-
Display Size10 inch
-
Display Resolution1280x800 pixels
-
Contrast Ratio900:1
-
Luminance350 cd/m²
-
Viewing Angle80°
-
Touch ScreenCapacitive
-
Wi-FiIEEE802.11 b/g/n at 2.4GHz
-
BLE Version4.2
-
Micro SD Slot1
-
RS485 PortYes
-
Relays Out2
-
Bell In1
-
Microphone Sensitivity-26dB
-
Speaker Power Output4W/3W
-
Ethernet Port1 RJ45
-
Ethernet Speed10/100Mbps
-
PoE Support802.3af
-
Power SupplyPoE or 12V DC
-
Tamper ResistantYes
-
Dimensions251x182.5x29.75 mm
-
Working Humidity10% to 90%
-
Working Temperature-10°C to +45°C
-
Storage Temperature-20°C to +70°C
-
Display ModeNormally black and transmissive
-
Aspect Ratio16:10
-
Protocols SupportedIPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
-
Auto-ProvisioningYes
-
Web Management PortalYes
-
Web-Based Packet DumpYes
-
Configuration Backup/RestoreYes
-
Firmware UpgradeYes
-
System LogsYes
