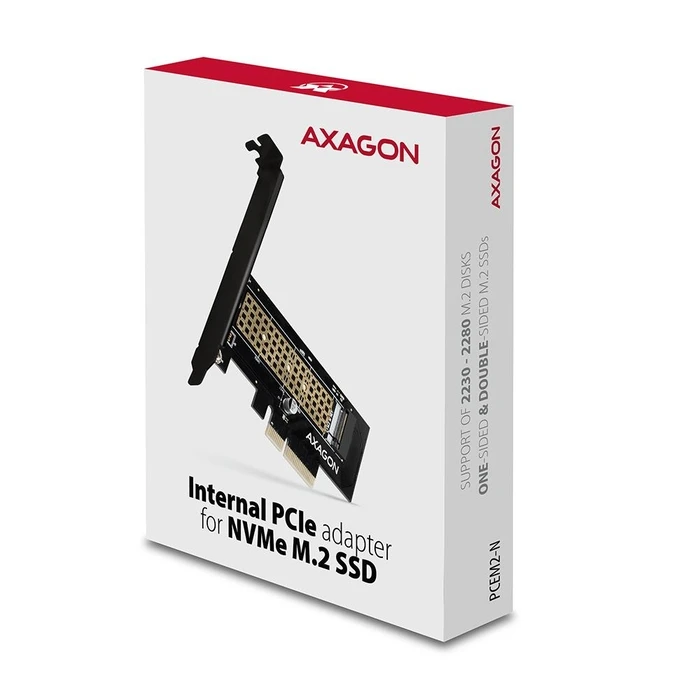

Αξεσουάρ SSD Axagon Adapter Pcie Nvme/M.2/Sp&Lp Pcem2-N
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Θήκη για Σκληρό Δίσκο Chieftec Mobiles Speicher-Rack CMR-625 2.5" (6.4 cm)
Πλαίσιο We-Ra. Icy Dock Extra Tray for MB840M2P, MB852M2PO, MB872M2P,
Καλώδιο Icy Dock MCIO 8i 74 pin SFF-TA-1016 to 2 x OCulink 42 pin 4i
Θήκη για Σκληρό Δίσκο Axagon ADSA-FP2A USB-A 5Gbps HDD/SSD SATA6G 2.
Θήκη Για Σκληρούς Δίσκους Icy Dock 8x2.5" SATA/SAS in 1x5.25"m bay mobile
The AXAGON PCEM2-N is a versatile PCIe 3.0 x4 adapter that allows you to connect a single M.2 NVMe SSD to your desktop PC through a PCI Express slot. This is especially beneficial if your motherboard lacks available M.2 slots or they are already occupied.
This adapter supports both single-sided and double-sided M.2 SSDs, accommodating sizes of 2230, 2242, 2260, and 2280 mm, featuring 75-pin M-key or B+M-key connectors. It is fully compatible with PCIe slots x4, x8, and x16, while also supporting PCIe interface versions 1.0a through 4.0.
Key Features:
- Transfer Speeds: Up to 8 GB/s bidirectional
- M.2 Support: NGFF 75-pin M-key
- Compatibility: Windows 7, 8, 8.1, 10 (both 32-bit and 64-bit)
With dimensions of 105 mm (length) x 49 mm (width) x 8 mm (height) and weighing approximately 32 grams, the AXAGON PCEM2-N combines compact size with robust performance.
Additional Features:
- LED indicators for connection and data transfer status
- Low profile bracket included for installation in smaller PC cases
- Plug and Play support, no drivers required
- Supports booting from the installed NVMe SSD
This product is particularly ideal for those looking to upgrade their desktops that lack native M.2 slots, enhancing your system with high-speed PCIe 3.0 connectivity efficiently.
-
PCI-Express interface3.0 (compatible with 1.x, 2.x, 3.x, and 4.0)
-
PCIe lanes4-lane (x4)
-
Maximum data transfer speed8 GB/s bidirectional
-
M.2 slotNGFF 75-pin M-key supporting NVMe SSDs
-
Supported M.2 SSD sizes2230, 2242, 2260, 2280 (up to 80 mm length)
-
Supported SSD typesSingle-sided and double-sided NVMe (PCIe) M.2 SSDs with no capacity limitation
-
Dimensions105 mm (length) x 49 mm (width) x 8 mm (height)
-
CoolingPassive cooling with thermally conductive pad and copper-plated ventilation
-
Power supplyPowered directly by the PCIe bus; no external power required
-
CompatibilityCompatible with Windows 7, 8, 8.1, and 10 (both 32-bit and 64-bit versions)
Ratings
Description
The AXAGON PCEM2-N is a versatile PCIe 3.0 x4 adapter that allows you to connect a single M.2 NVMe SSD to your desktop PC through a PCI Express slot. This is especially beneficial if your motherboard lacks available M.2 slots or they are already occupied.
This adapter supports both single-sided and double-sided M.2 SSDs, accommodating sizes of 2230, 2242, 2260, and 2280 mm, featuring 75-pin M-key or B+M-key connectors. It is fully compatible with PCIe slots x4, x8, and x16, while also supporting PCIe interface versions 1.0a through 4.0.
Key Features:
- Transfer Speeds: Up to 8 GB/s bidirectional
- M.2 Support: NGFF 75-pin M-key
- Compatibility: Windows 7, 8, 8.1, 10 (both 32-bit and 64-bit)
With dimensions of 105 mm (length) x 49 mm (width) x 8 mm (height) and weighing approximately 32 grams, the AXAGON PCEM2-N combines compact size with robust performance.
Additional Features:
- LED indicators for connection and data transfer status
- Low profile bracket included for installation in smaller PC cases
- Plug and Play support, no drivers required
- Supports booting from the installed NVMe SSD
This product is particularly ideal for those looking to upgrade their desktops that lack native M.2 slots, enhancing your system with high-speed PCIe 3.0 connectivity efficiently.
Technical Specifications
-
PCI-Express interface3.0 (compatible with 1.x, 2.x, 3.x, and 4.0)
-
PCIe lanes4-lane (x4)
-
Maximum data transfer speed8 GB/s bidirectional
-
M.2 slotNGFF 75-pin M-key supporting NVMe SSDs
-
Supported M.2 SSD sizes2230, 2242, 2260, 2280 (up to 80 mm length)
-
Supported SSD typesSingle-sided and double-sided NVMe (PCIe) M.2 SSDs with no capacity limitation
-
Dimensions105 mm (length) x 49 mm (width) x 8 mm (height)
-
CoolingPassive cooling with thermally conductive pad and copper-plated ventilation
-
Power supplyPowered directly by the PCIe bus; no external power required
-
CompatibilityCompatible with Windows 7, 8, 8.1, and 10 (both 32-bit and 64-bit versions)
