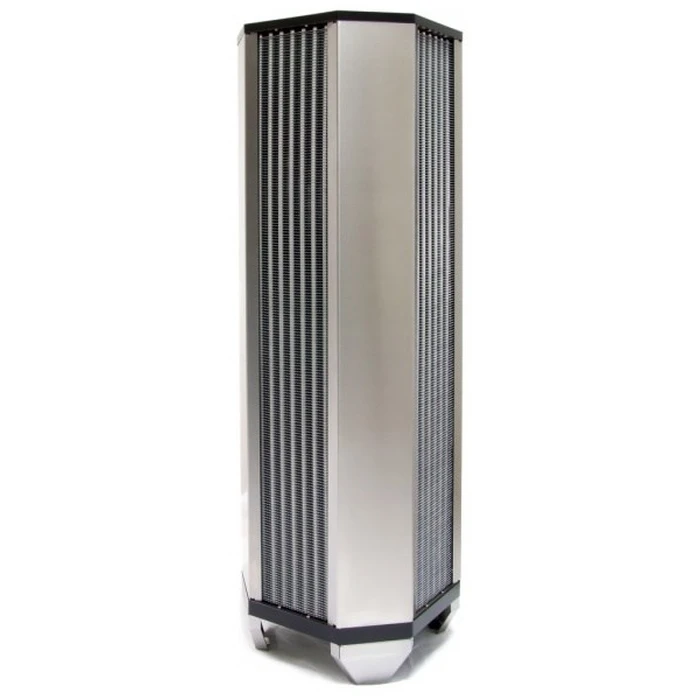

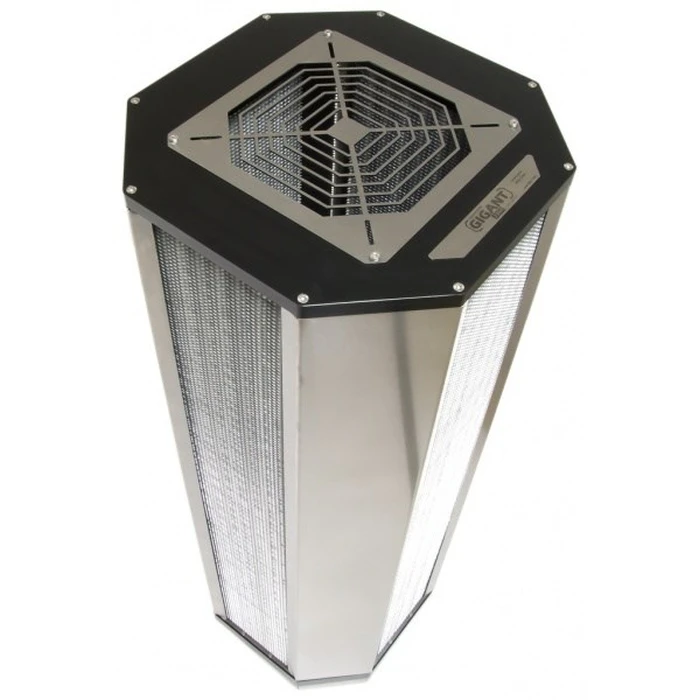

The Aqua Computer airplex GIGANT 3360 Fan is a premium cooling accessory specifically engineered for custom liquid cooling systems. This product is notable for its choice of materials, being available with either aluminum or copper fins, which offers flexibility based on user preference.

Technical Specifications

• Dimensions: Approx. 310 x 310 x 960 mm (Width x Height x Depth)
• Weight: Varies by material; Aluminum fins version weighs around 15.6 kg, while the Copper fins version weighs about 20.4 kg.
• Materials: The cooling ducts consist of copper, and the fin options include aluminum or copper.
• Connection Threads: Equipped with 4 x G1/4" ports to facilitate water cooling integration.
• Fan Compatibility: Supports a single 170-180 mm fan installation on the top cover or base, with options for 140 mm fans using separate fan rails.

Pressure Rating: The unit can handle pressures up to 0.8 bar.

Flow and Cooling Features

• Cooling liquid avoids contact with aluminum components, using copper pipes instead.
• Designed for low flow resistance, compatible with smaller pumps.
• Features a large fin surface area with optimized spacing for enhanced passive cooling.

Additional Features: For aquaero versions, it includes a programmable four-channel fan controller, USB connectivity, and multiple sensor inputs for temperature and flow, making it highly configurable.
