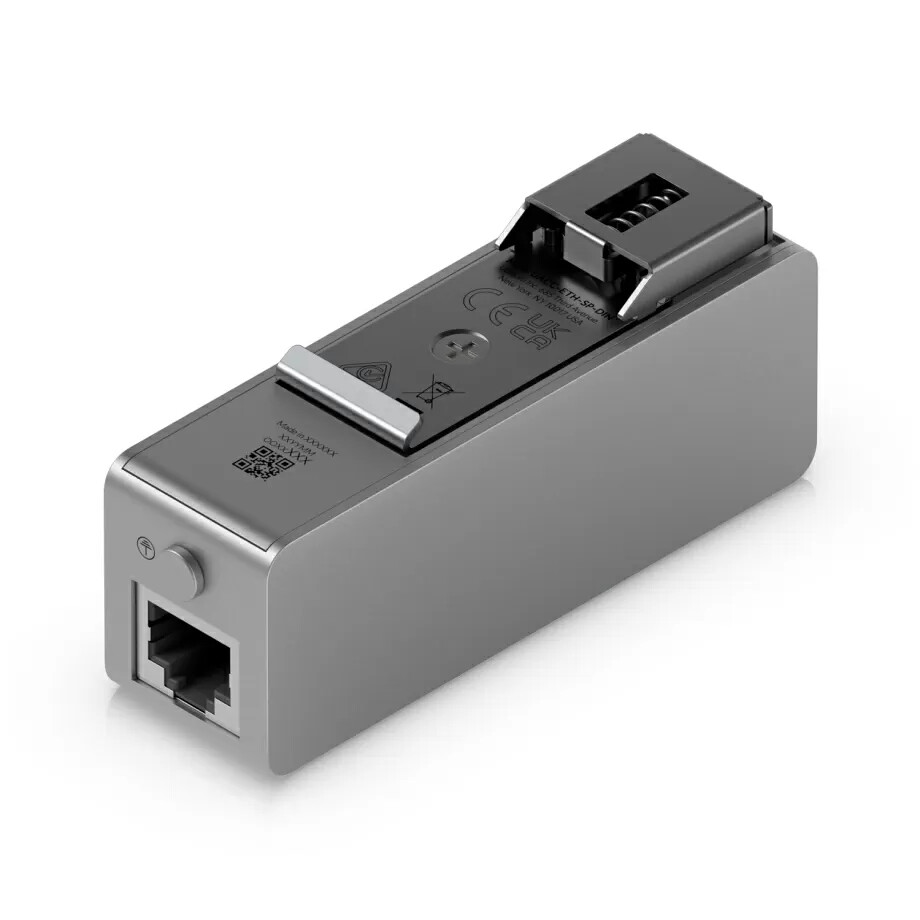

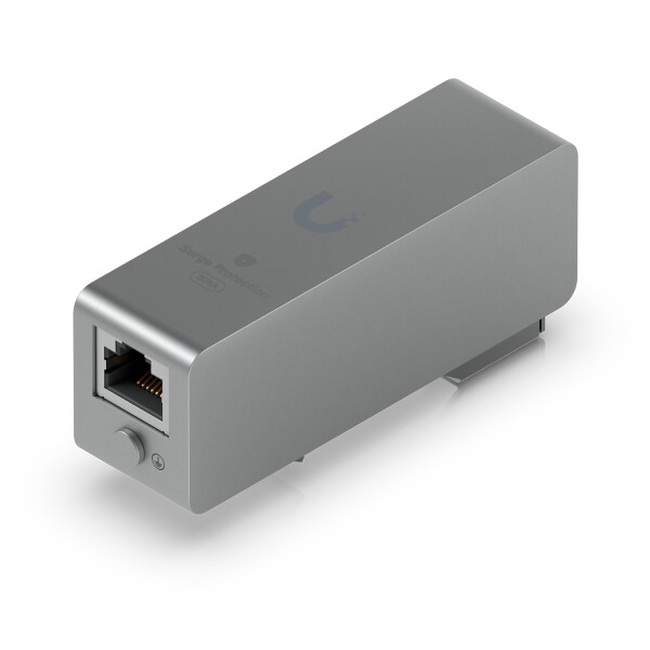

The Ubiquiti Ethernet Surge Protector DIN (UACC-ETH-SP-DIN) is an essential device for protecting your Ethernet-connected equipment from harmful electrical surges. With its two RJ45 female connectors, it ensures easy installation into existing networks, maintaining high-speed data transfer rates of up to 10 Gbps.
Constructed with a blend of polycarbonate and galvanized steel (SGCC), this surge protector is designed to be both durable and lightweight. Its compact size of 89 x 25.5 x 37.4 mm and a weight of only 74 grams allow for a variety of mounting options, including DIN rail and wall mounting.
What makes this device stand out is its technical specifications, which include:
- Bidirectional Surge Protection: Protects against voltage spikes with a DC spark-over voltage of 90 V at 100 V/s.
- Maximum Impulse Spark-Over Voltage: Capable of withstanding 600 V at 1 kV/µs.
- Surge Current Discharge: Can safely handle currents up to 20 kA.
Additional specifications include:
- ESD/EMP Protection: Absorbs transient currents with rapid surge voltage response.
- Maximum Capacitance: 1.0 pF at 1 MHz, ensuring minimal signal loss.
- Insulation Resistance: Maximum of 1 GΩ ensuring effective isolation.
- Operating Temperature: Ranges from -40 °C to +80 °C.
- Operating Humidity: Between 10% to 90% non-condensing.
In conclusion, the Ubiquiti Ethernet Surge Protector DIN is designed to provide comprehensive protection to sensitive Ethernet devices, ensuring network stability and equipment longevity even in environments susceptible to electrical disturbances.
-
Connectors2 × RJ45 female
-
Data Transfer RateUp to 10 Gbps
-
DC Spark-Over Voltage90 V @ 100 V/s
-
Maximum Impulse Spark-Over Voltage600 V @ 1 kV/µs
-
Discharge Current20 kA
-
Maximum Capacitance1.0 pF @ 1 MHz
-
Insulation ResistanceMax 1 GΩ @ 50 V
-
Operating Temperature-40 °C to +80 °C
-
Operating Humidity10% to 90% non-condensing
-
Dimensions89 × 25.5 × 37.4 mm
-
Weight74 g
-
MaterialPolycarbonate, Galvanized Steel (SGCC)
-
MountingDIN Rail or Wall Mount
-
PoE SupportYes
