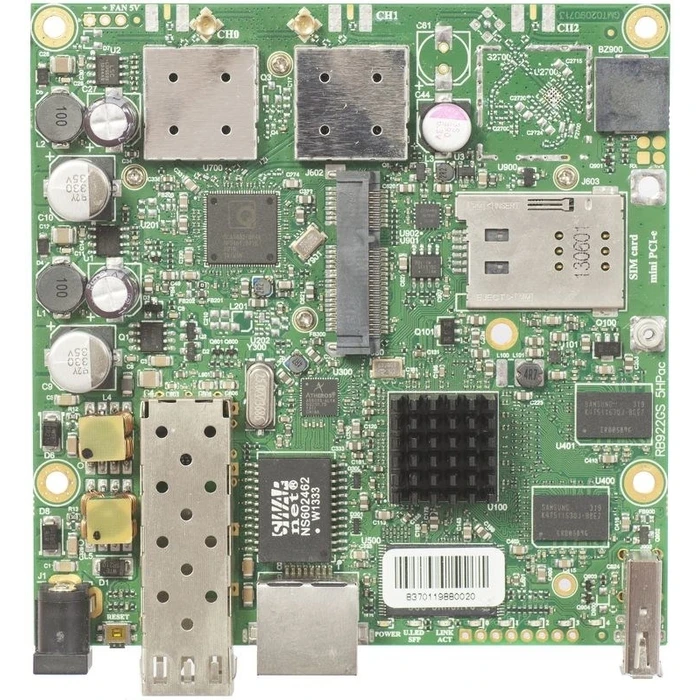

The Mikrotik RB922UAGS-5HPacD Motherboard is an advanced wireless router board that excels in high-performance applications. Supporting the 802.11ac Wi-Fi 5 standard, it ensures high-speed wireless connectivity in various environments.
Powered by a 720 MHz single-core QCA9557 CPU, this device is designed to deliver reliable performance. With 128 MB RAM and 128 MB NAND storage, it runs the MikroTik RouterOS with a Level 4 license, allowing for significant versatility and functionality.
- Dimensions: 105 x 105 mm
- Operating Temperature: -40°C to 70°C
- Maximum Data Rate: 867 Mbit/s
- Connectivity Options: 1x Gigabit Ethernet, 1x SFP cage
- Power Supply: Dual DC inputs with a range of 8-30 V
This board also features critical wireless technologies:
- Wireless chip: QCA9882
- MIMO: 2x2 dual chains
- RF connectors: 2x MMCX for external antennas
It is specifically built for rugged outdoor use and has been certified with various standards, including CE/RED and FCC. MTBF is approximately 100,000 hours at 25°C, ensuring long-lasting service.
-
CPUQCA9557, single-core, 720 MHz
-
ArchitectureMIPSBE
-
Memory128 MB RAM (DDR2), 128 MB NAND flash storage
-
Operating SystemRouterOS (License Level 4)
-
Wireless5 GHz band, supports 802.11a/n/ac standards
-
Maximum Data Rate867 Mbit/s
-
Ethernet Port1x Gigabit Ethernet (10/100/1000 Mbps)
-
Fiber1x SFP cage with DDMI support
-
Expansion Slots1x miniPCI-e slot with SIM slot for 3G/4G modem
-
USB Port1x USB type A with USB power reset capability (max 1 A)
-
PoweringDual DC inputs, 8-30 V, max consumption 17 W
-
CoolingPassive
-
RF Connectors2x MMCX for external antennas
-
MTBFApproximately 100,000 hours at 25°C
-
CertificationsCE/RED, FCC, IC, EAC, ROHS
-
EnvironmentalTested for operation in temperatures from -40°C to +70°C
-
Additional InfoUS version locked to 5170-5250 MHz and 5725-5835 MHz
