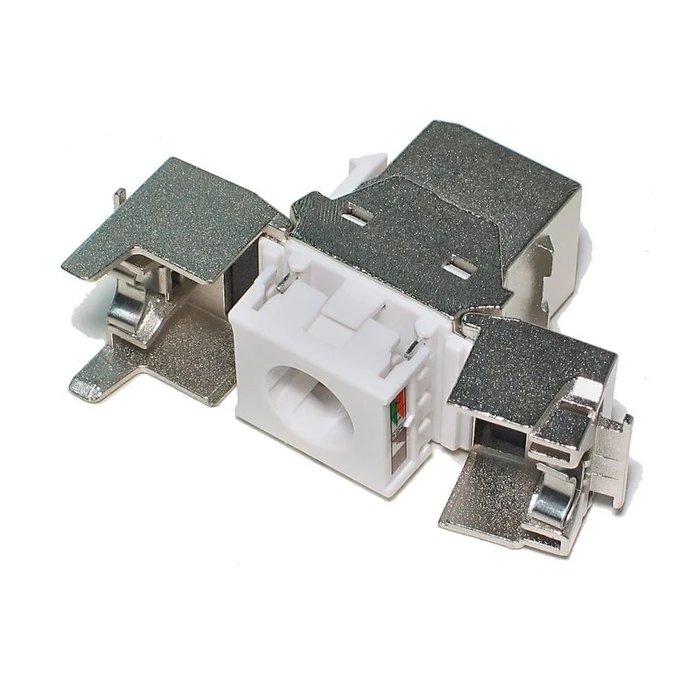

Αξεσουάρ Δικτύου EFB RJ45 KKeystone STP, Cat.6, 250MHz, Tool-free, shielded
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- Ship with ACS Courier
- Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
Pickup from BoxNow automated machine:
With BoxNow you can pick up your package from an Automated Pickup Machine near you at any time, 24/7. Cash on delivery available with an additional €1 fee.
-
Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Related Products
Keystone Digitus RJ45-Stecker Cat6a for field applications Unshielded
Transceiver TP-Link Omada Nek SM311LS Fiber Converter SFP/LX/LC V5.2
Αξεσουάρ Δικτύο Auerswald COMpact 5200R telephone system (19" rackmount enclosure)
Αξεσουάρ Δικτύου Delock Keystone Modul USB 3.0 A Female to USB 3.0 A Female

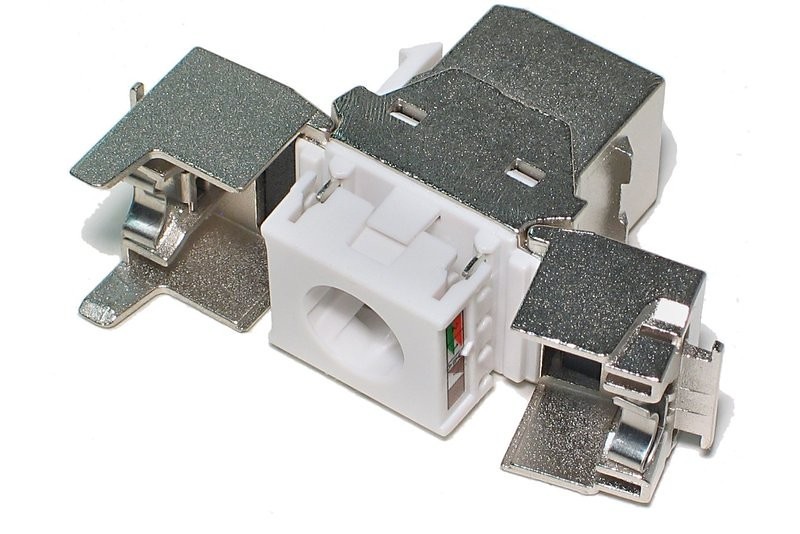

The EFB RJ45 Keystone STP is an advanced network connector module that excels in providing high transmission qualities. This fully shielded design makes it ideal for professional installations.
This RJ45 keystone module ensures a simple and tool-free assembly process. It supports up to 5 Gigabit Ethernet applications, which is a significant advantage for modern networking needs.
The module’s reliable performance is due to its fully shielded construction, designed to withstand the rigors of long-term use in various network environments.
- Category: Cat.6
- Frequency: 250 MHz
- Screened: Yes (STP)
- Temperature Range: -40 to 66 °C
- Mating Cycles: ≥ 750
This product is compatible with solid core, round cable, and litz wire conductors, making it versatile for many applications.
Included in the package are various accessories such as a cable coder and dust cover, ensuring you have everything needed for installation.
-
CategoryCat.6
-
Frequency250 MHz
-
Connector TypeRJ45 8(8)
-
Connection TypeInsulation displacement connector
-
AWG Range24 – 22
-
Max. Cable Diameter8.0 mm
-
ScreenedYes
-
Housing MaterialZinc die cast
-
Contact Resistance≤ 20 mΩ
-
Insulation Resistance≥ 500 MΩ
-
Dielectric Withstanding Voltage1000 V AC 60Hz
-
Current Rating2 A
-
Temperature Range-40 – 66 °C
-
Mating Cycles≥ 750
-
Contact Coating50 µm
-
Dust CoverIncluded
-
4PPOE CertifiedYes
-
UL94 ComplianceV-0
Ratings
Description
The EFB RJ45 Keystone STP is an advanced network connector module that excels in providing high transmission qualities. This fully shielded design makes it ideal for professional installations.
This RJ45 keystone module ensures a simple and tool-free assembly process. It supports up to 5 Gigabit Ethernet applications, which is a significant advantage for modern networking needs.
The module’s reliable performance is due to its fully shielded construction, designed to withstand the rigors of long-term use in various network environments.
- Category: Cat.6
- Frequency: 250 MHz
- Screened: Yes (STP)
- Temperature Range: -40 to 66 °C
- Mating Cycles: ≥ 750
This product is compatible with solid core, round cable, and litz wire conductors, making it versatile for many applications.
Included in the package are various accessories such as a cable coder and dust cover, ensuring you have everything needed for installation.
Technical Specifications
-
CategoryCat.6
-
Frequency250 MHz
-
Connector TypeRJ45 8(8)
-
Connection TypeInsulation displacement connector
-
AWG Range24 – 22
-
Max. Cable Diameter8.0 mm
-
ScreenedYes
-
Housing MaterialZinc die cast
-
Contact Resistance≤ 20 mΩ
-
Insulation Resistance≥ 500 MΩ
-
Dielectric Withstanding Voltage1000 V AC 60Hz
-
Current Rating2 A
-
Temperature Range-40 – 66 °C
-
Mating Cycles≥ 750
-
Contact Coating50 µm
-
Dust CoverIncluded
-
4PPOE CertifiedYes
-
UL94 ComplianceV-0
