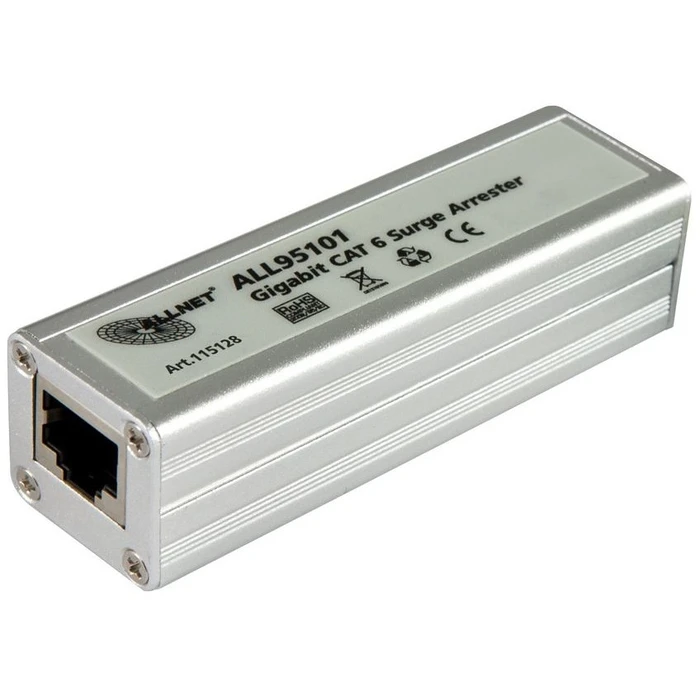

Αξεσουάρ Δικτύου Allnet TP Cat 6/ADSL/VDSL/ISDN Surge-/lightning ALL95101
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Transceiver TP-Link ISM311LM network Fiber optic 1.25 Mbit/s SFP 850 nm
Converter TP-Link Omada MC211CS-2 network media 1000 Mbit/s 1310 nm Single-mode Black
Converter TP-Link Omada MC212CS-2 network media 1000 Mbit/s 1550 nm Single-mode Black
Converter Planet 4-Port 1G Ethernet PoE to VDSL2 Extender IVC-234GPT
Converter Planet 10/100TX - 100Base-FX (SC) Single Mode Bridge Fiber
The ALLNET TP Cat 6/ADSL/VDSL/ISDN ?berspannungs-/Blitzschutz ALL95101 is an essential surge protector designed to safeguard sensitive network equipment. Protecting against power surges, lightning strikes, and other electrical disturbances is its primary function. A compact and durable solution, it is ideally suited for outdoor environments or Power over Ethernet (PoE) settings.

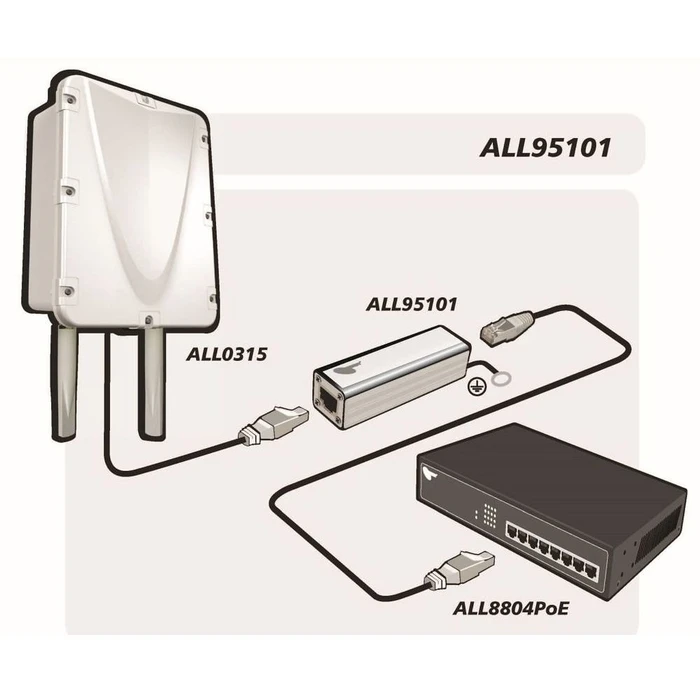

This device features a plug-and-play design, which simplifies installation. Simply insert it between the network cable or xDSL/ISDN connection and the equipment to be protected. Key features of the ALLNET ALL95101 include:
- Two RJ45 Ports: Supporting 10/100/1000Mbps speeds, it caters to various network devices.
- PoE Capability: Complies with IEEE802.3 standards and handles up to 90W, suitable for devices like IP cameras.
- High Arrest Capacity: Robust protection with a handling capacity of 10kA and 100A against surges.
- Durable Housing: Constructed in a sturdy metal case ensures longevity.
In summary, the ALLNET ALL95101 surge protector is a reliable choice for safeguarding critical network equipment, minimizing potential downtime and costly replacements.
-
Network Interface2 x RJ45 ports
-
PoE CapabilitySupports IEEE802.3af, at, and LTPoE++ standards, up to 90W
-
Arrest Capacity10kA (8/20΅s) and 100A (10/1000΅s)
-
Ignition VoltageUp to 90VDC ±20%
-
Clamping VoltageLess than 15V
-
Clamping TimeLess than 5ns
-
Peak Current30Apk
-
Differential CapacityLess than 4.0pF
-
Lines ProtectedAll eight pins of an 8-pin modular plug
-
Test MarksCertified for IEEE 802.3, CAT 5, and CAT 6 standards
-
ESD ProtectionIEC 61000-4-2 class 4, contact discharge of 10kV
-
HousingMetal case
-
Operating Temperature-15°C to 40°C
-
Operating Humidity10% to 95% (non-condensed)
-
CertificationsCE and RoHS
-
Dimensions82 x 25 x 25 mm
-
Weight200 grams
-
Package ContentIncludes surge protector and Quick Installation Guide
Ratings
Description
The ALLNET TP Cat 6/ADSL/VDSL/ISDN ?berspannungs-/Blitzschutz ALL95101 is an essential surge protector designed to safeguard sensitive network equipment. Protecting against power surges, lightning strikes, and other electrical disturbances is its primary function. A compact and durable solution, it is ideally suited for outdoor environments or Power over Ethernet (PoE) settings.
This device features a plug-and-play design, which simplifies installation. Simply insert it between the network cable or xDSL/ISDN connection and the equipment to be protected. Key features of the ALLNET ALL95101 include:
- Two RJ45 Ports: Supporting 10/100/1000Mbps speeds, it caters to various network devices.
- PoE Capability: Complies with IEEE802.3 standards and handles up to 90W, suitable for devices like IP cameras.
- High Arrest Capacity: Robust protection with a handling capacity of 10kA and 100A against surges.
- Durable Housing: Constructed in a sturdy metal case ensures longevity.
In summary, the ALLNET ALL95101 surge protector is a reliable choice for safeguarding critical network equipment, minimizing potential downtime and costly replacements.
Technical Specifications
-
Network Interface2 x RJ45 ports
-
PoE CapabilitySupports IEEE802.3af, at, and LTPoE++ standards, up to 90W
-
Arrest Capacity10kA (8/20΅s) and 100A (10/1000΅s)
-
Ignition VoltageUp to 90VDC ±20%
-
Clamping VoltageLess than 15V
-
Clamping TimeLess than 5ns
-
Peak Current30Apk
-
Differential CapacityLess than 4.0pF
-
Lines ProtectedAll eight pins of an 8-pin modular plug
-
Test MarksCertified for IEEE 802.3, CAT 5, and CAT 6 standards
-
ESD ProtectionIEC 61000-4-2 class 4, contact discharge of 10kV
-
HousingMetal case
-
Operating Temperature-15°C to 40°C
-
Operating Humidity10% to 95% (non-condensed)
-
CertificationsCE and RoHS
-
Dimensions82 x 25 x 25 mm
-
Weight200 grams
-
Package ContentIncludes surge protector and Quick Installation Guide
