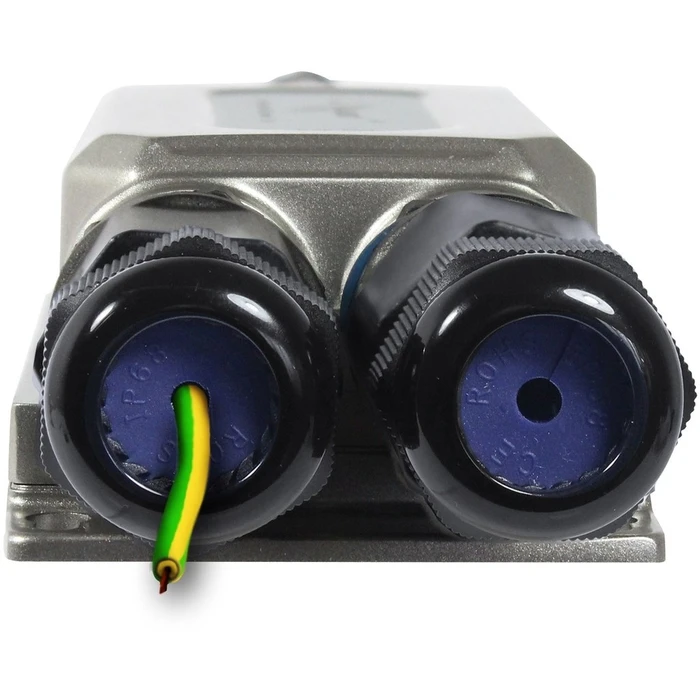

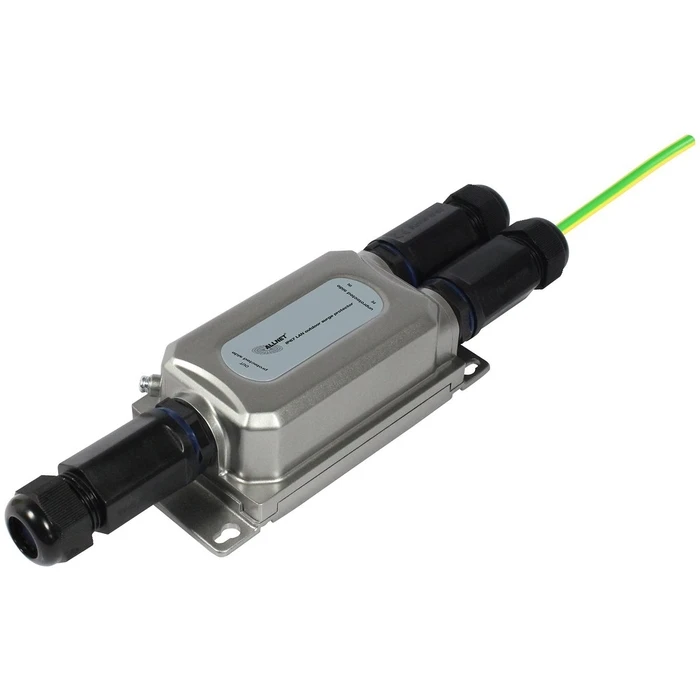

Αξεσουάρ Δικτύου Allnet TP Cat 6 Surge-/lightning Surge Protector ALL95102O IP66 outdoor
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Transceiver TP-Link ISM311LM network Fiber optic 1.25 Mbit/s SFP 850 nm
Converter TP-Link Omada MC211CS-2 network media 1000 Mbit/s 1310 nm Single-mode Black
Converter TP-Link Omada MC212CS-2 network media 1000 Mbit/s 1550 nm Single-mode Black
The ALLNET TP Cat 6 ?berspannungs-/Blitzschutz Surge Protector ALL95102O is a robust and reliable surge protector designed to safeguard sensitive devices from electrical surges and lightning strikes. This device excels in outdoor environments, making it ideal for various applications.
This surge protector is housed in an IP66 weatherproof enclosure, ensuring its durability against harsh weather conditions. Here are some key features:
- Network Interface: 2x RJ45 ports supporting speeds of 10/100/1000 Mbps.
- PoE Capability: Supports Power over Ethernet (PoE) standards with a maximum power supply of 90W.
- Robust Protection: Arrest capacity of 10kA and 100A for high surge currents.
- Clamping Specifications: Differential clamping voltage of <15V with a rapid response time.
Its operating temperature range of -15°C to 40°C and humidity tolerance of 10% to 95% make it suitable for various environments. Additionally, it has received CE and RoHS certifications, ensuring compliance with safety standards.
In conclusion, the ALL95102O proves to be a reliable solution for outdoor applications such as IP cameras, Wi-Fi access points, and outdoor LAN devices.
-
Network Interface2x RJ45 ports
-
PoE CapabilityUp to 90W
-
Arrest Capacity10kA, 100A
-
Ignition Voltage90VDC ±20%
-
Clamping Voltage<15V
-
Response Time<5ns
-
Peak Current30A
-
Operating Temperature Range-15°C to 40°C
-
Humidity Range10% to 95%
-
Dimensions200 x 75 x 45 mm
-
Weight329 grams
-
CertificationsCE, RoHS
-
ESD ProtectionUp to 10kV CD
-
Test MarkIEEE 802.3, CAT 5 and 6
Ratings
Description
The ALLNET TP Cat 6 ?berspannungs-/Blitzschutz Surge Protector ALL95102O is a robust and reliable surge protector designed to safeguard sensitive devices from electrical surges and lightning strikes. This device excels in outdoor environments, making it ideal for various applications.
This surge protector is housed in an IP66 weatherproof enclosure, ensuring its durability against harsh weather conditions. Here are some key features:
- Network Interface: 2x RJ45 ports supporting speeds of 10/100/1000 Mbps.
- PoE Capability: Supports Power over Ethernet (PoE) standards with a maximum power supply of 90W.
- Robust Protection: Arrest capacity of 10kA and 100A for high surge currents.
- Clamping Specifications: Differential clamping voltage of <15V with a rapid response time.
Its operating temperature range of -15°C to 40°C and humidity tolerance of 10% to 95% make it suitable for various environments. Additionally, it has received CE and RoHS certifications, ensuring compliance with safety standards.
In conclusion, the ALL95102O proves to be a reliable solution for outdoor applications such as IP cameras, Wi-Fi access points, and outdoor LAN devices.
Technical Specifications
-
Network Interface2x RJ45 ports
-
PoE CapabilityUp to 90W
-
Arrest Capacity10kA, 100A
-
Ignition Voltage90VDC ±20%
-
Clamping Voltage<15V
-
Response Time<5ns
-
Peak Current30A
-
Operating Temperature Range-15°C to 40°C
-
Humidity Range10% to 95%
-
Dimensions200 x 75 x 45 mm
-
Weight329 grams
-
CertificationsCE, RoHS
-
ESD ProtectionUp to 10kV CD
-
Test MarkIEEE 802.3, CAT 5 and 6
