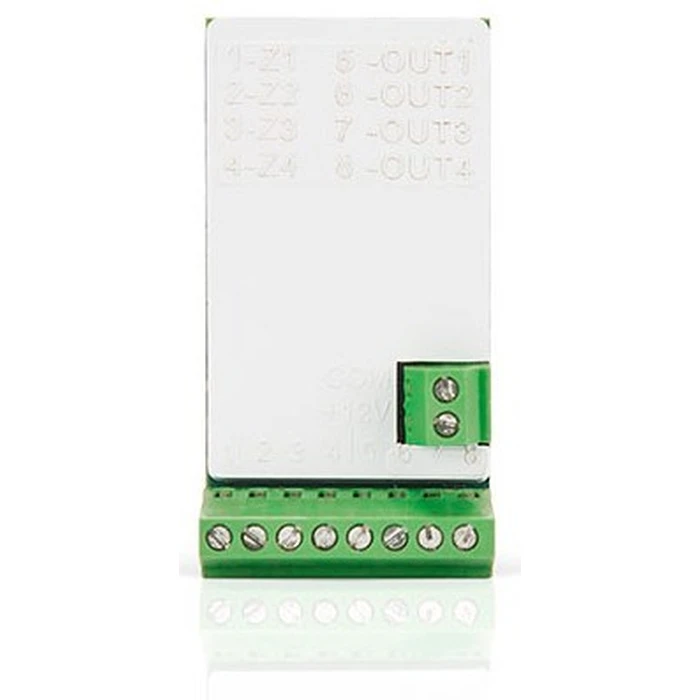

Αξεσουάρ CCTV Satel ACX-210 alarm / detector accessory
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Related Products
Αξεσουάρ CCTV Reolink USB-C extension cable 4.5m for solar panel (Black)
Αξεσουάρ CCTV TP-Link Omada VJB-240(UN) VIGI Anschlussbox for Networks
The Satel ACX-210 is a compact and versatile wireless expander module designed for seamless integration of wired devices into ABAX and ABAX 2 wireless alarm systems. Ideal for use in CCTV, intrusion detection, and access control installations, the ACX-210 enables the connection of up to 4 wired detectors, signalers, or other security devices, making it a valuable accessory for expanding the capabilities of modern alarm and surveillance setups.
Key Features:
- Enables wired devices (detectors, signalers, etc.) to be used within ABAX 2/ABAX wireless systems.
- 4 programmable inputs and 4 programmable outputs for flexible configuration.
- Supports NO, NC, EOL, and 2EOL/NO input types.
- Remote configuration and firmware update (ABAX 2 system only).
- Miniature design for discreet installation, even inside other device enclosures.
Technical Specifications:
- Supply Voltage: 4–24 V DC
- Standby Current Consumption: 30 mA
- Maximum Current Consumption: 35 mA
- Frequency Band: 868.0 – 868.6 MHz
- Operating Temperature: -10°C to +55°C
- Output Type: Open Collector (OC)
- Number of Inputs: 4
- Number of Outputs: 4
- Housing: No (module only)
- Power Supply: Not included (requires external power)
The Satel ACX-210 is a reliable and space-saving solution for professionals seeking to expand the input/output capabilities of their wireless alarm or CCTV systems, offering easy installation and robust performance in a wide range of environments.
-
Supply Voltage4–24 V DC
-
Standby Current Consumption30 mA
-
Maximum Current Consumption35 mA
-
Frequency Band868.0 – 868.6 MHz
-
Operating Temperature-10 to 55 °C
-
Output TypeOpen Collector (OC)
-
Number of Inputs4
-
Number of Outputs4
-
HousingNo (module only)
-
Power SupplyNot included (requires external power)
Ratings
Description
The Satel ACX-210 is a compact and versatile wireless expander module designed for seamless integration of wired devices into ABAX and ABAX 2 wireless alarm systems. Ideal for use in CCTV, intrusion detection, and access control installations, the ACX-210 enables the connection of up to 4 wired detectors, signalers, or other security devices, making it a valuable accessory for expanding the capabilities of modern alarm and surveillance setups.
Key Features:
- Enables wired devices (detectors, signalers, etc.) to be used within ABAX 2/ABAX wireless systems.
- 4 programmable inputs and 4 programmable outputs for flexible configuration.
- Supports NO, NC, EOL, and 2EOL/NO input types.
- Remote configuration and firmware update (ABAX 2 system only).
- Miniature design for discreet installation, even inside other device enclosures.
Technical Specifications:
- Supply Voltage: 4–24 V DC
- Standby Current Consumption: 30 mA
- Maximum Current Consumption: 35 mA
- Frequency Band: 868.0 – 868.6 MHz
- Operating Temperature: -10°C to +55°C
- Output Type: Open Collector (OC)
- Number of Inputs: 4
- Number of Outputs: 4
- Housing: No (module only)
- Power Supply: Not included (requires external power)
The Satel ACX-210 is a reliable and space-saving solution for professionals seeking to expand the input/output capabilities of their wireless alarm or CCTV systems, offering easy installation and robust performance in a wide range of environments.
Technical Specifications
-
Supply Voltage4–24 V DC
-
Standby Current Consumption30 mA
-
Maximum Current Consumption35 mA
-
Frequency Band868.0 – 868.6 MHz
-
Operating Temperature-10 to 55 °C
-
Output TypeOpen Collector (OC)
-
Number of Inputs4
-
Number of Outputs4
-
HousingNo (module only)
-
Power SupplyNot included (requires external power)
