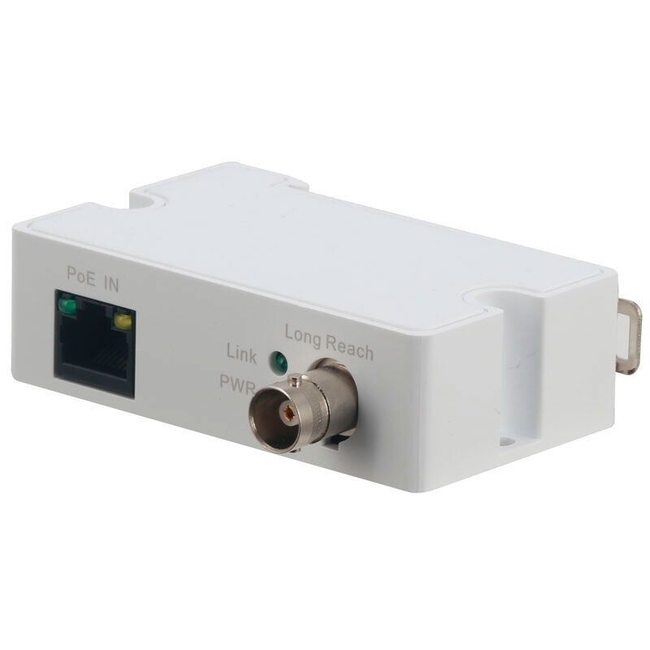

The Dahua LR1002-1EC-V3 is a highly efficient single-port Ethernet over Coax (EoC) receiver, meticulously designed to extend Ethernet signals through coaxial cables. This product is a part of the renowned Dahua V3 series, ensuring robust power supply transmission over considerable distances.

Key Functionality: The LR1002-1EC-V3 operates as a converter, enabling seamless Ethernet connectivity by transitioning signals from an RJ45 port to a BNC port. It supports both 100Mbps and 10Mbps transmission modes, working efficiently alongside the transmitter model LR1002-1ET to create a comprehensive EoC system.

Technical Specifications:

• Ports:
• RJ45 Port: 1 x 10/100 Mbps Base-TX port for Ethernet connectivity.
• BNC Port: 1 BNC port for coaxial cable connection.
• Transmission Bandwidth:
• With RG59 Coaxial Cable, it achieves up to 400 meters at 100Mbps and up to 1,000 meters at 10Mbps.
• Power Supply:
• Supports 48V passive PoE for efficient power delivery.
• Power consumption is less than 2 watts.
• Network Standards: Compliant with IEEE802.3, IEEE802.3u, and IEEE802.3x standards.
• Operating Conditions:
• Operating temperature ranges from -30°C to +65°C.
• Relative humidity operates between 5% to 95%.
• Dimensions: Measures 79 mm x 52 mm x 23 mm.
• Weight: Weighs 61 grams.

Additional Features: The LR1002-1EC-V3 boasts MDI/MDIX self-adaptation, simplifying installation processes and offering flexibility in cable arrangements. It also supports coaxial power supply, facilitating long-range power transmission efficiently.

This receiver guarantees reliable Ethernet signal extension over coaxial cables, catering to diverse applications in the surveillance and networking industries.
