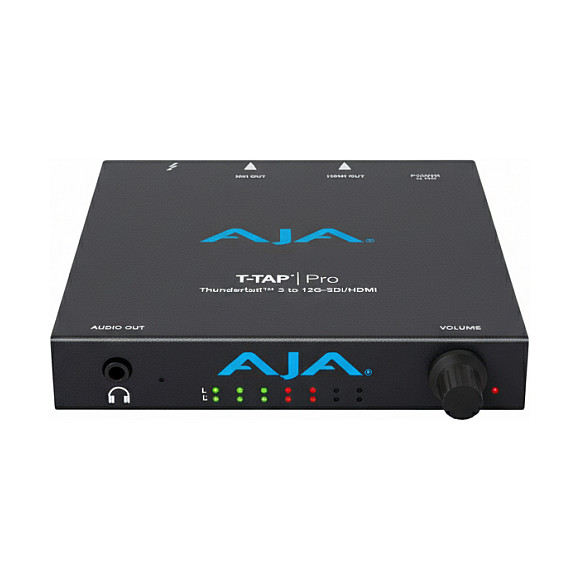

AJA T-TAP Pro (T-TAP-PRO-R0) - Thunderbolt 3 12G-SDI & HDMI 2.0 Video Output/Monitoring Adapter

Description

Technical Specifications

• Brand
  AJA
• Model
  T-TAP Pro (T-TAP-PRO-R0)
• EAN / Barcode
  0812321032536
• SKU
  21169554
• Device Type
  Thunderbolt 3 video output / monitoring converter
• Thunderbolt Port
  1 × Thunderbolt 3 (compatible with Thunderbolt 4/5 systems)
• SDI Output
  1 × 12G-SDI BNC (supports 12G/6G/3G/HD/SD)
• HDMI Output
  1 × HDMI 2.0 (supports up to 4K/UltraHD 60p)
• Max Resolution / Frame Rate
  Up to 4K/UltraHD 60p over single cable
• Color / Bit Depth Support
  RGB 4:4:4 12-bit; YCbCr 4:2:2 10-bit
• HDR Support
  HLG, PQ, HDR10 (Dolby Vision via SDK/third-party integration may be supported)
• Audio (SDI)
  Embedded audio up to 16 channels
• Audio (HDMI)
  Embedded audio up to 8 channels
• Headphone Output
  3.5 mm (1/8") stereo TRS headphone jack; front-panel volume knob
• Front Panel
  Status LEDs for Thunderbolt/power/connection; audio level reference / VU meters
• Power
  Requires external power supply (included); Thunderbolt bus power insufficient (supply ~18W max reported)
• Design
  Compact, silent-running desktop/mobile monitoring unit
• Compatibility
  Mac, Windows, Linux; compatible with major NLEs and apps (Final Cut Pro, Adobe Premiere Pro, Avid, Pro Tools, etc.)
• Warranty
  3-year limited warranty (manufacturer)
• Included Accessories
  External power supply, Thunderbolt connection cable (depending on bundle/retailer), documentation
• Use Case
  On-set and studio monitoring, color-accurate external monitoring, playback output from editing systems
• Packaging
  Retail box with device, power supply, documentation
• MPN
  T-TAP-PRO-R0
