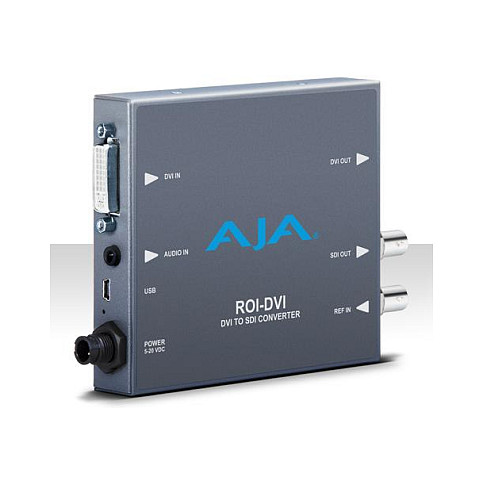

AJA ROI-DVI DVI/HDMI to SDI ROI Scan Converter (ROI-DVI-R0)

Description

Technical Specifications

• Brand
  AJA
• Model
  ROI-DVI (MPN: ROI-DVI-R0)
• SKU
  21169577
• EAN/Barcode
  0892448000151
• Product Type
  DVI/HDMI to 3G/HD/SD-SDI scan converter (ROI mini-converter)
• Input Connectors
  DVI-D input (supports VGA to WUXGA up to 1920x1200@60Hz), HDMI-compatible signals
• DVI Receiver Rate
  Maximum 165 MHz
• Loop-through
  DVI-D loop-through / pass-through (can be adapted to HDMI)
• Output Connectors
  1x SDI output (3G/HD/SD)
• Supported Output Formats
  3G-SDI (1080p60 max), 1080i, 720p, 525i/625i and common HD/SD formats
• ROI Scaling
  User-adjustable Region of Interest (selectable area upscaled to output)
• Aspect Ratio
  4:3 / 16:9 conversion modes; aspect ratio preservation; matte color fill option
• Frame-rate Conversion
  Supported; automatic configuration to input raster/frame rate
• Audio Support
  Up to 8-channel HDMI embedded audio; 2-channel analog input (3.5 mm); SDI embedded audio up to 8 channels, 24-bit
• Reference/Genlock
  Reference input supporting black burst or tri-level sync
• HDCP
  Honors HDCP; HDCP-protected content will not pass to SDI or DVI loop-through
• Configuration
  USB port for configuration with AJA Mini-Config software (Mac/PC)
• Power
  Universal +5V power supply (AJA DWP-U-R1 typically included); listed range on some retailer data 5–20 VDC; ~3 W typical
• Dimensions
  Approx. 146.56 x 102.11 x 22.86 mm (5.77 x 4.02 x 0.90 in)
• Weight
  Product weight ~300 g
• Warranty
  5-year limited warranty (per AJA documentation)
• Other Features
  Edge filtering disable, horizontal/vertical delay via sync input, portable design for pro AV integration
• Accessories
  Power supply (kit-dependent), USB cable, documentation/manual
