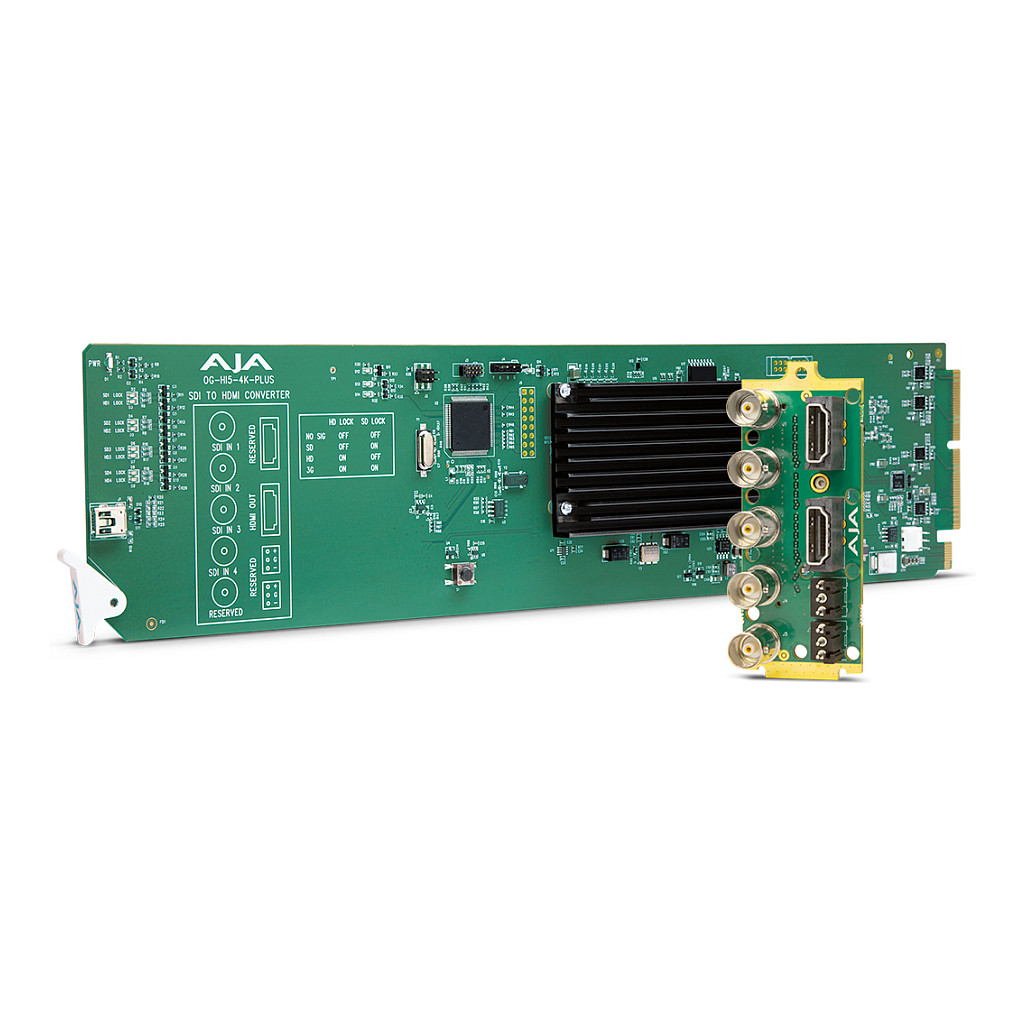

AJA OG-Hi5-4K-Plus openGear 3G-SDI to HDMI 2.0 Converter (4K/UltraHD)

Description

Technical Specifications

• Brand
  AJA
• Model
  OG-Hi5-4K-Plus
• SKU
  21169591
• MPN
  OG-Hi5-4K-Plus
• EAN / Barcode
  0812321031409
• Product Type
  openGear SDI-to-HDMI converter (card)
• Primary Function
  3G-SDI to HDMI 2.0 conversion for professional monitoring
• Supported Input Types
  Quad 3G-SDI, Quad 1.5G-SDI, Dual 3G-SDI
• Pixel Mapping
  Two Sample Interleave (2SI), Square Division (Quadrant)
• Supported Resolutions
  4096×2160 (4K), 3840×2160 (UltraHD), 2048×1080 (2K), 1920×1080 / 1080i / 720p (HD), 720×576i / 720×480i (SD)
• Max Frame Rate
  Up to 60p (format dependent)
• Color Depth
  8-, 10-, or 12-bit supported
• Chroma/Subsampling
  HDMI output supports 4:2:2 / 4:4:4 / 4:2:0; RGB 4:4:4 supported on input
• HDR Support
  Generates HDMI v2.0b / CTA-861.3 metadata; supports HDR10 and HLG
• Audio Support
  SDI embedded audio up to 16 channels (24-bit); HDMI embedded audio passthrough up to 8 channels (24-bit)
• Control Interface
  openGear DashBoard network control software (Windows, macOS, Linux)
• Form Factor
  openGear standard 2-slot module (requires rear card)
• Power Consumption
  Approximately 12.0 watts max per card
• Weight
  0.3 kg (0.5 lb)
• Warranty
  Five-year warranty
• 3D Support
  Not supported
• Notable Limitations
  720p 4:4:4 formats not supported in current release
• Typical Use Cases
  High-density monitoring and SDI-to-HDMI conversion in openGear frames for broadcast and pro AV workflows
• Included Items
  OG-Hi5-4K-Plus card (openGear module) — rear card required (sold/installed in frame)
• Compliance / Standards
  HDMI 2.0 / CTA-861.3, SMPTE SDI formats
