The AJA OG-FIDO-TR-MM is an openGear 1-channel 3G-SDI LC multi-mode fiber transceiver. It supports 150 Mbps to 3 Gbps (format agnostic), automatic SDI rate selection (270 Mbps, 1.483/1.485 Gbps, 2.966/2.970 Gbps), bidirectional conversion between 3G-SDI and multi-mode fiber (LC), and provides...
More

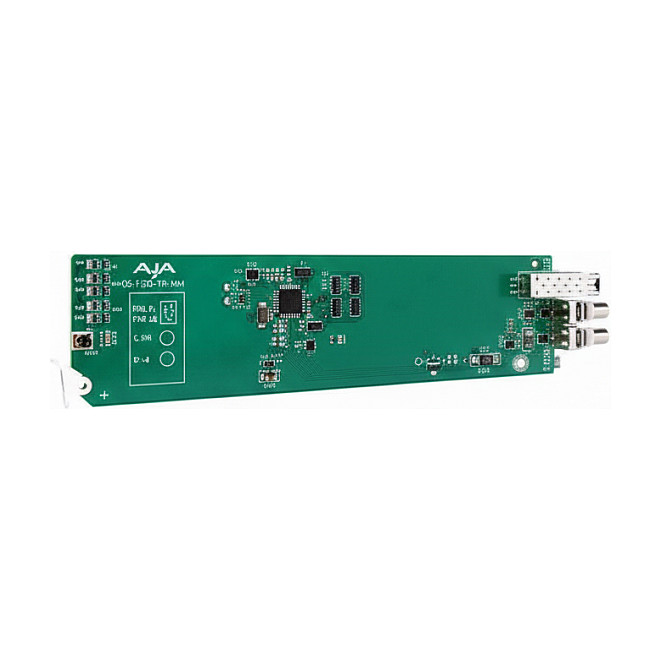

AJA OG-FIDO-TR-MM openGear 1-Channel 3G-SDI/LC Multi-Mode Fiber Transceiver
Product Code: 1173700981
Available in 4 - 6 days
1.958,08 €
or
61,15€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 5875 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The AJA OG-FIDO-TR-MM is an openGear 1-channel 3G-SDI <-> LC multi-mode fiber transceiver. It supports 150 Mbps to 3 Gbps (format agnostic), automatic SDI rate selection (270 Mbps, 1.483/1.485 Gbps, 2.966/2.970 Gbps), bidirectional conversion between 3G-SDI and multi-mode fiber (LC), and provides Input Present / Input SMPTE Lock LEDs. Designed for openGear frames (OGX, OG3, DFR-8321), it supports DashBoard monitoring (Windows, macOS, Linux), automatic detection and reclocking, and helps eliminate ground loop problems. The module is hot-swap capable and optimized for high-density openGear 2RU frames.
-
BrandAJA Video Systems
-
ModelOG-FIDO-TR-MM (OG-FiDO-TR-MM)
-
Product TypeopenGear 1-channel 3G-SDI <-> LC multi-mode fiber transceiver
-
Video Formats150 Mbps to 3 Gbps (format agnostic)
-
SDI Rates Supported270 Mbps; 1.483 Gbps; 1.485 Gbps; 2.966 Gbps; 2.970 Gbps (auto-select)
-
Conversion Directions3G-SDI to fiber and fiber to 3G-SDI (bidirectional)
-
SDI Connectors1x 3G-SDI BNC input, 1x 3G-SDI BNC output
-
Fiber TypeMulti-mode LC (LC connectors)
-
Nominal Wavelength850 nm
-
Optical Power-7 dBm min / -2 dBm max
-
Optical Sensitivity-15 dBm min
-
Extinction Ratio7.5 dB (typical)
-
Reach on OM4Up to 700 m (2296 ft)
-
Reach on OM3Up to 300 m (984 ft)
-
Power Consumption2.5 watts
-
Hot-Swap CapableTrue
-
MonitoringopenGear DashBoard (Windows, macOS, Linux)
-
IndicatorsInput Present LED, Input SMPTE Lock LED
-
ReclockingAutomatic detection and reclocking
-
openGear CompatibilityOGX, OG3, DFR-8321 frames
-
Form FactoropenGear standard card (front slot, rear card) - occupies two slots
-
WarrantyFive-year international warranty (AJA openGear products)
-
MPNOG-FIDO-TR-MM
-
SKU21169614
-
EAN / Barcode0812321031812
-
MSRP ReferenceApproximately $1,153 USD (manufacturer MSRP)
Ratings
Description
The AJA OG-FIDO-TR-MM is an openGear 1-channel 3G-SDI <-> LC multi-mode fiber transceiver. It supports 150 Mbps to 3 Gbps (format agnostic), automatic SDI rate selection (270 Mbps, 1.483/1.485 Gbps, 2.966/2.970 Gbps), bidirectional conversion between 3G-SDI and multi-mode fiber (LC), and provides Input Present / Input SMPTE Lock LEDs. Designed for openGear frames (OGX, OG3, DFR-8321), it supports DashBoard monitoring (Windows, macOS, Linux), automatic detection and reclocking, and helps eliminate ground loop problems. The module is hot-swap capable and optimized for high-density openGear 2RU frames.
Technical Specifications
-
BrandAJA Video Systems
-
ModelOG-FIDO-TR-MM (OG-FiDO-TR-MM)
-
Product TypeopenGear 1-channel 3G-SDI <-> LC multi-mode fiber transceiver
-
Video Formats150 Mbps to 3 Gbps (format agnostic)
-
SDI Rates Supported270 Mbps; 1.483 Gbps; 1.485 Gbps; 2.966 Gbps; 2.970 Gbps (auto-select)
-
Conversion Directions3G-SDI to fiber and fiber to 3G-SDI (bidirectional)
-
SDI Connectors1x 3G-SDI BNC input, 1x 3G-SDI BNC output
-
Fiber TypeMulti-mode LC (LC connectors)
-
Nominal Wavelength850 nm
-
Optical Power-7 dBm min / -2 dBm max
-
Optical Sensitivity-15 dBm min
-
Extinction Ratio7.5 dB (typical)
-
Reach on OM4Up to 700 m (2296 ft)
-
Reach on OM3Up to 300 m (984 ft)
-
Power Consumption2.5 watts
-
Hot-Swap CapableTrue
-
MonitoringopenGear DashBoard (Windows, macOS, Linux)
-
IndicatorsInput Present LED, Input SMPTE Lock LED
-
ReclockingAutomatic detection and reclocking
-
openGear CompatibilityOGX, OG3, DFR-8321 frames
-
Form FactoropenGear standard card (front slot, rear card) - occupies two slots
-
WarrantyFive-year international warranty (AJA openGear products)
-
MPNOG-FIDO-TR-MM
-
SKU21169614
-
EAN / Barcode0812321031812
-
MSRP ReferenceApproximately $1,153 USD (manufacturer MSRP)
