The AJA OG-3G-AMD is an openGear‑compatible 3G‑SDI dual embedder/disembedder module that provides 8 channels of 24‑bit AES audio. It supports up to 3G‑SDI video (1080p60 / 2048x1080p60), offers four AES inputs and four AES outputs on BNC, selectable embedding on a channel‑pair basis, automatic...
More

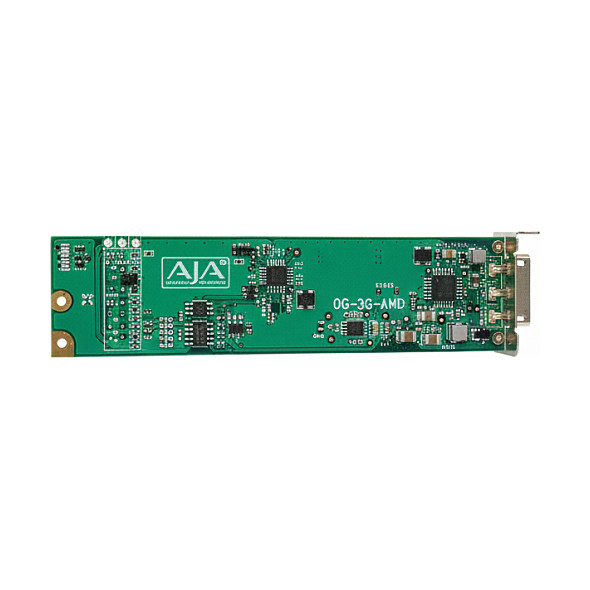

AJA OG-3G-AMD openGear 3G‑SDI 8-Channel 24-bit AES Audio Embedder/Disembedder
Product Code: 1173700980
Available in 4 - 6 days
1.754,11 €
or
54,78€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 5263 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The AJA OG-3G-AMD is an openGear‑compatible 3G‑SDI dual embedder/disembedder module that provides 8 channels of 24‑bit AES audio. It supports up to 3G‑SDI video (1080p60 / 2048x1080p60), offers four AES inputs and four AES outputs on BNC, selectable embedding on a channel‑pair basis, automatic video standard detection, AES sample‑rate conversion to 48 kHz locked to video, low latency operation, and control/monitoring via AJA DashBoard (Windows/macOS/Linux). Designed for use in openGear frames (high density 2RU frames) and uses an openGear rear connector module with BNCs.
-
BrandAJA Video Systems, Inc.
-
ModelOG-3G-AMD
-
MPNOG-3G-AMD
-
SKU21169602
-
EAN0812321031928
-
Product TypeopenGear 3G‑SDI AES Audio Embedder / Disembedder
-
Form FactoropenGear card (fits openGear frames, hot‑swappable)
-
Video Support3G‑SDI up to 2048x1080p60 / 1080p60
-
Supported Standards3G‑SDI (Level A/B supported)
-
Audio Channels8 channels AES (24‑bit)
-
Audio FormatAES3 / SMPTE ST 337
-
AES Connectors4 AES BNC inputs, 4 AES BNC outputs (rear module)
-
Embedded Audio SupportPass, remove or override incoming embedded audio; embed AES per channel pair
-
Sample Rate ConversionAES inputs SRC to 48 kHz synchronous to video
-
LatencyEmbed SRC on: ~1500 µs; SRC off: ~400 µs; De‑embed: ~210 µs
-
Power Consumption~5 W
-
Control / SoftwareAJA DashBoard (Windows, macOS, Linux); local and remote configuration
-
Rear ConnectoropenGear rear module with BNCs (10x BNC module included/used)
-
CompatibilityFits openGear frames (OG‑X‑FR, OGX, OG3, DFR‑8321 etc.)
-
FeaturesAutomatic video standard detection; channel pair embedding selection; low latency; hot‑swappable
-
MaterialsStandard PCB electronics with metal card bracket (openGear form factor)
-
Dimensions (manufacturer not specified)Card fits standard openGear slot (physical card dimensions not explicitly provided by AJA)
-
Weight (manufacturer not specified)Product weight not specified by AJA (estimated typical card weight ~250 g)
-
Included ItemsOG‑3G‑AMD module (openGear card); rear openGear connector module (BNC connections) — packaging and bundle vary by reseller
Ratings
Description
The AJA OG-3G-AMD is an openGear‑compatible 3G‑SDI dual embedder/disembedder module that provides 8 channels of 24‑bit AES audio. It supports up to 3G‑SDI video (1080p60 / 2048x1080p60), offers four AES inputs and four AES outputs on BNC, selectable embedding on a channel‑pair basis, automatic video standard detection, AES sample‑rate conversion to 48 kHz locked to video, low latency operation, and control/monitoring via AJA DashBoard (Windows/macOS/Linux). Designed for use in openGear frames (high density 2RU frames) and uses an openGear rear connector module with BNCs.
Technical Specifications
-
BrandAJA Video Systems, Inc.
-
ModelOG-3G-AMD
-
MPNOG-3G-AMD
-
SKU21169602
-
EAN0812321031928
-
Product TypeopenGear 3G‑SDI AES Audio Embedder / Disembedder
-
Form FactoropenGear card (fits openGear frames, hot‑swappable)
-
Video Support3G‑SDI up to 2048x1080p60 / 1080p60
-
Supported Standards3G‑SDI (Level A/B supported)
-
Audio Channels8 channels AES (24‑bit)
-
Audio FormatAES3 / SMPTE ST 337
-
AES Connectors4 AES BNC inputs, 4 AES BNC outputs (rear module)
-
Embedded Audio SupportPass, remove or override incoming embedded audio; embed AES per channel pair
-
Sample Rate ConversionAES inputs SRC to 48 kHz synchronous to video
-
LatencyEmbed SRC on: ~1500 µs; SRC off: ~400 µs; De‑embed: ~210 µs
-
Power Consumption~5 W
-
Control / SoftwareAJA DashBoard (Windows, macOS, Linux); local and remote configuration
-
Rear ConnectoropenGear rear module with BNCs (10x BNC module included/used)
-
CompatibilityFits openGear frames (OG‑X‑FR, OGX, OG3, DFR‑8321 etc.)
-
FeaturesAutomatic video standard detection; channel pair embedding selection; low latency; hot‑swappable
-
MaterialsStandard PCB electronics with metal card bracket (openGear form factor)
-
Dimensions (manufacturer not specified)Card fits standard openGear slot (physical card dimensions not explicitly provided by AJA)
-
Weight (manufacturer not specified)Product weight not specified by AJA (estimated typical card weight ~250 g)
-
Included ItemsOG‑3G‑AMD module (openGear card); rear openGear connector module (BNC connections) — packaging and bundle vary by reseller
