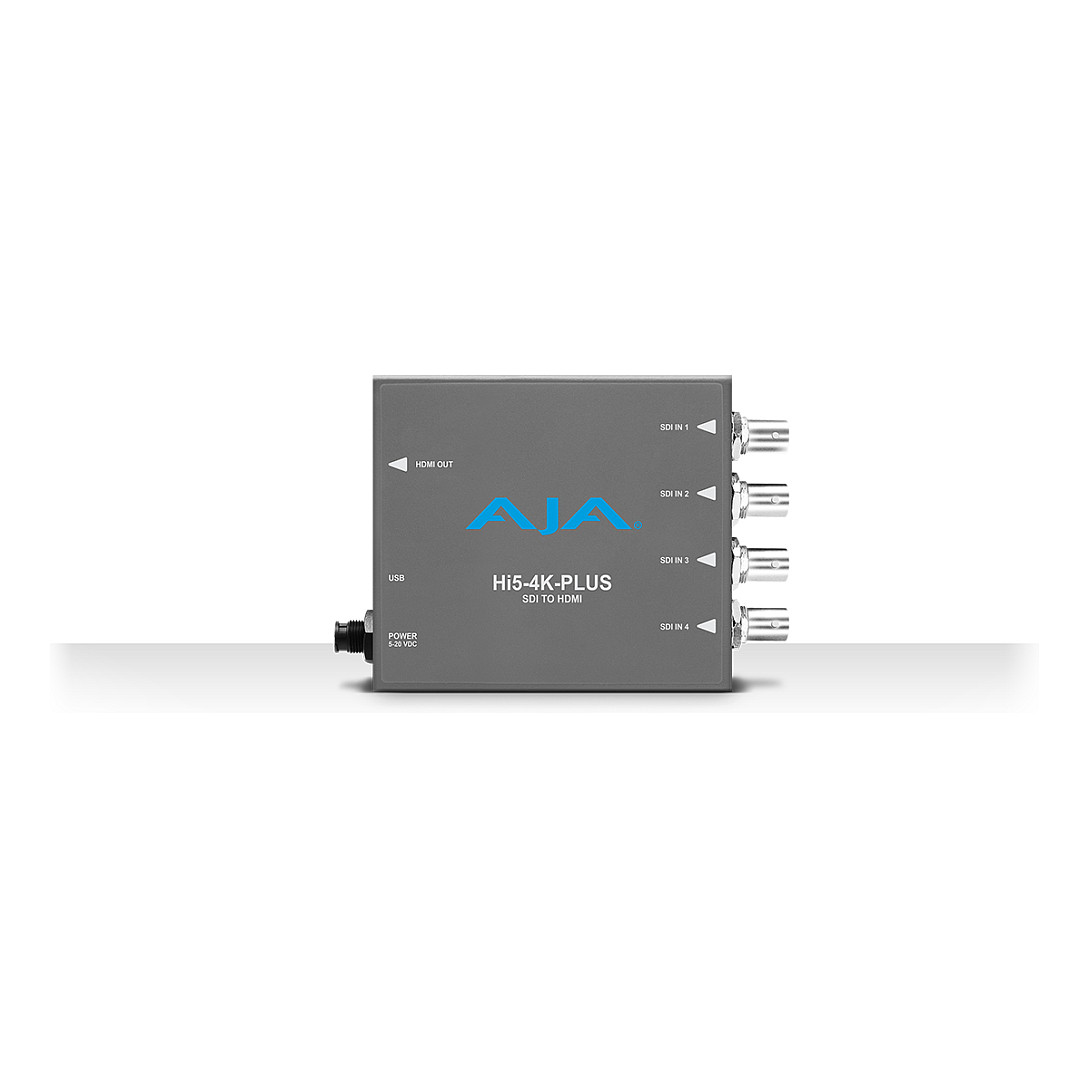

AJA Hi5-4K-Plus 3G-SDI to HDMI 2.0 Converter

Description

Technical Specifications

• Brand
  AJA Video Systems
• Model
  Hi5-4K-Plus (HI5-4K PLUS)
• MPN
  HI5-4K PLUS
• SKU
  21169461
• EAN / Barcode
  0892448000090
• Product Type
  3G-SDI to HDMI 2.0 video and audio converter
• Inputs
  Quad 3G-SDI (supports Quad 3G-SDI, Quad 1.5G-SDI, Dual 3G-SDI workflows)
• Outputs
  HDMI 2.0b (single HDMI output)
• Maximum Resolution
  Up to 4K60p (3840x2160p @60Hz and 4096x2160p support)
• Supported Formats
  4K/UHD, 2K, HD (1080i/720p) and SD
• Color Sampling
  4:4:4, 4:2:2, 4:2:0 over HDMI
• Bit Depth
  Supports 12-bit workflows
• HDR Support
  HDR10 and HLG; HDMI CTA-861.3 HDR metadata generation and pass-through with optional override
• Audio (HDMI)
  Embedded HDMI audio up to 8 channels, 24-bit
• Audio Pass-Through
  Passes compressed embedded audio (AC-3, E-AC-3, DD+ Atmos / DD+ JOC)
• USB Configuration
  USB port for configuration via AJA Mini-Config (Windows/macOS); Mini-Matrix iOS app supported
• Power
  5–20V DC input; includes universal power supply
• Latency
  Low-latency conversion suitable for monitoring (manufacturer emphasizes pristine conversion and low-latency performance)
• Connectors
  4 x 3G-SDI BNC inputs, 1 x HDMI 2.0 output, USB for configuration, DC power input
• Use Cases
  Broadcast, live production, professional AV monitoring, SDI-to-HDMI monitoring workflows
• Dimensions (approx.)
  Compact enclosure, approx. 11.7 x 6.1 x 2.5 cm (4.6" x 2.4" x 1")
• Weight (product)
  Approx. 200 g
• Package Contents
  Hi5-4K-Plus unit, universal DC power supply, USB configuration cable (typical), quick start documentation
• Environmental
  Designed for professional use; robust compact housing
