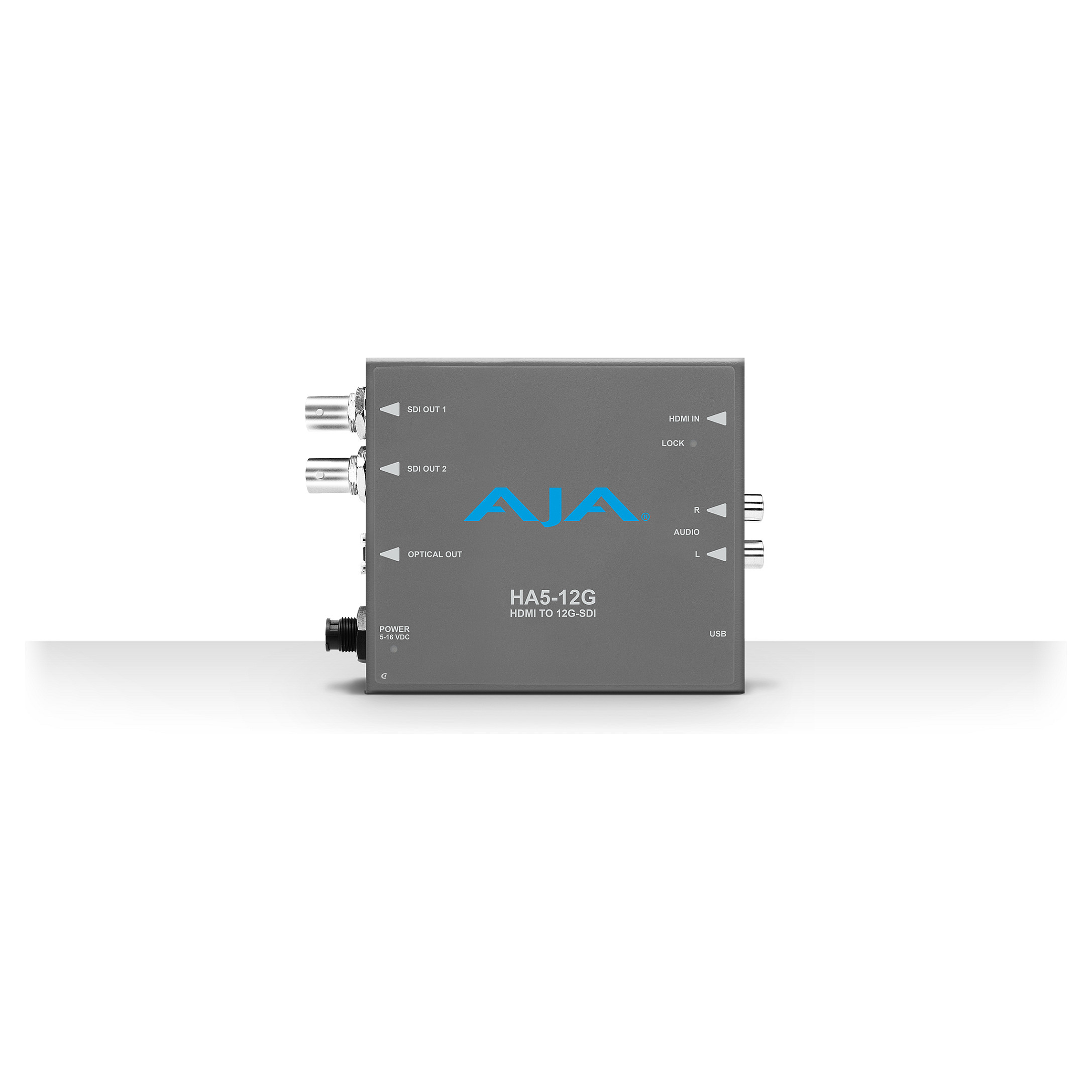

AJA HA5-12G HDMI 2.0 to 12G-SDI Active Video Converter (Grey)

Description

Technical Specifications

• Brand
  AJA
• Model/MPN
  HA5-12G
• EAN / Barcode
  0812321031492
• SKU
  21169452
• Color
  Grey
• Product Type
  Active HDMI 2.0 to 12G-SDI mini-converter
• HDMI Input
  1 × HDMI 2.0 / HDMI 2.0b
• SDI Outputs
  2 × 12G-SDI (mirrored outputs)
• Max Resolution
  4096 × 2160 (DCI 4K) and 3840 × 2160 (UHD 4K) up to 60p
• Frame Rates
  Supports up to 60p; supports 4:4:4, 4:2:2, 4:2:0; simple frame-rate conversion between fractional and integer rates
• Audio Support
  Up to 8-channel HDMI-embedded audio; 2-channel analog audio via RCA; SDI-embedded output supports 8 or 2 channels depending on mode
• HDR
  HDR InfoFrame analysis; HDR metadata pass-through and optional override
• 4K Mapping
  Supports Two Sample Interleave (2SI) source mapping
• EDID
  EDID emulation supported
• Compressed Audio Passthrough
  AC-3 (Dolby Digital), E-AC-3 (Dolby Digital Plus), including DD+ JOC / Atmos passthrough
• Configuration
  USB-configurable via AJA Mini-Config software
• Power Input
  5–16 VDC regulated; universal power supply included
• Power Consumption
  Approximately 11 watts
• Warranty
  Five-year warranty
• Package Contents
  HA5-12G unit, universal power supply, documentation (software via AJA)
• Physical Construction
  Compact metal enclosure (grey)
• Variants
  HA5-12G-T (fiber SFP transmitter) and HA5-12G-T-ST (ST fiber variant)
• Special Features
  Mirrored 12G-SDI outputs, single-link 4K/UltraHD SDI output, HDR metadata handling, EDID emulation, USB configuration
