The AJA 12GDA is a compact, miniature 1x6 12G‑SDI reclocking distribution amplifier designed for professional broadcast and live production. It supports 12G/6G/3G/HD/SD‑SDI (100 Mbps to 12 Gbps), with one 12G‑SDI BNC input and six separately buffered 12G‑SDI BNC outputs. Features include auto input...
More

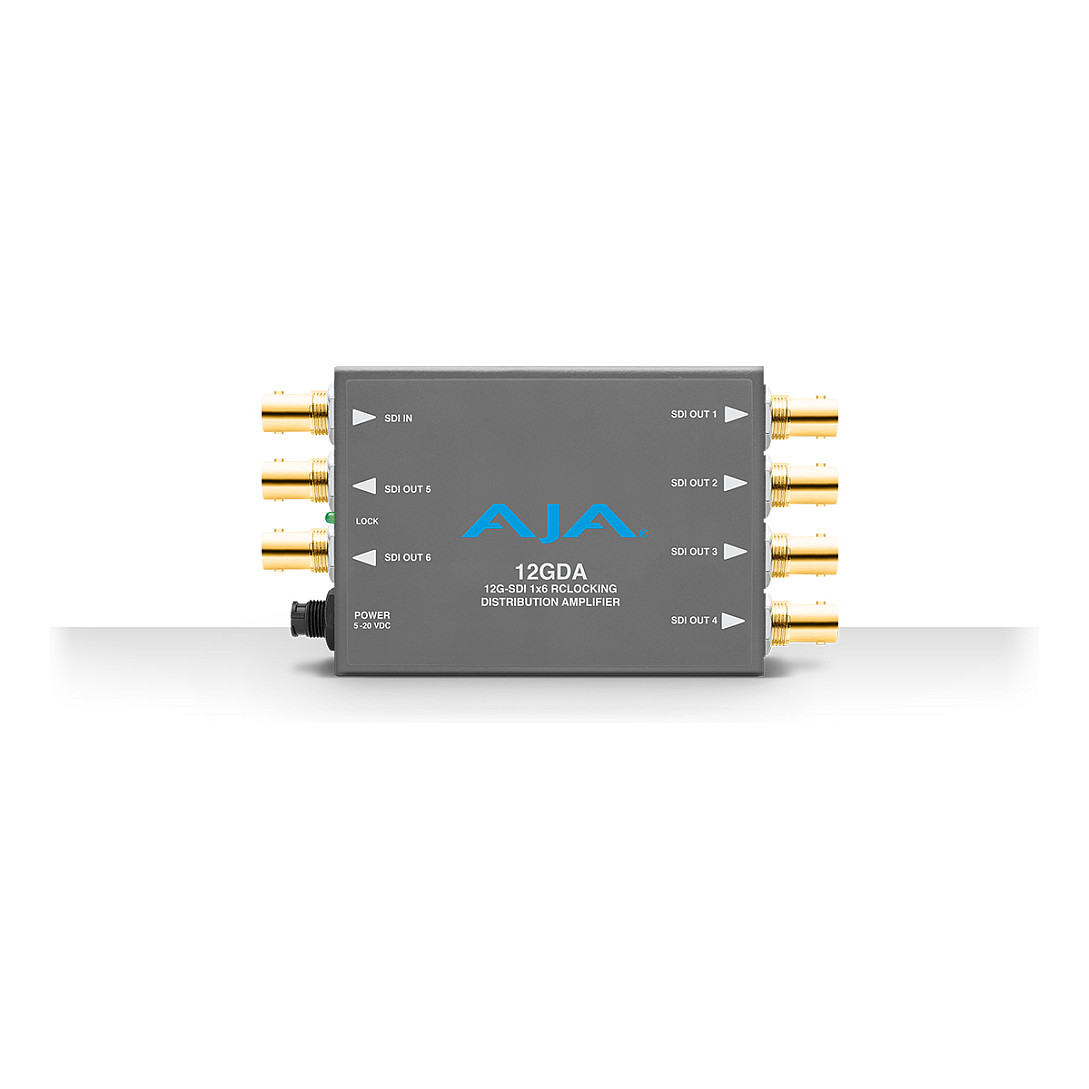

AJA 12GDA 12G‑SDI 1x6 Reclocking Distribution Amplifier
Product Code: 1173700971
Available in 4 - 6 days
1.070,04 €
or
33,42€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 3211 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The AJA 12GDA is a compact, miniature 1x6 12G‑SDI reclocking distribution amplifier designed for professional broadcast and live production. It supports 12G/6G/3G/HD/SD‑SDI (100 Mbps to 12 Gbps), with one 12G‑SDI BNC input and six separately buffered 12G‑SDI BNC outputs. Features include auto input detection/auto‑sensing, reclocking, cable equalization (Belden 1694A distances supported), ancillary data pass‑through, and a universal DWP‑U‑R1 power adapter (100–240 VAC). Small form factor for portable or rack/throw‑down use. Five‑year warranty.
-
BrandAJA Video Systems
-
Model12GDA
-
MPN12GDA-R0
-
EAN/Barcode0892448000991
-
Product Type1x6 12G‑SDI Reclocking Distribution Amplifier
-
Supported SDI Rates270 Mbps, 1.5 Gbps (HD‑SDI), 3 Gbps, 6 Gbps, 12 Gbps
-
Data Rate Range100 Mbps to 12 Gbps
-
Input1 x 12G‑SDI BNC
-
Outputs6 x 12G‑SDI BNC (separately buffered)
-
SMPTE Standards SupportedSMPTE 259/292/424/2081/2082
-
Cable Equalization (Belden 1694A)405 m @ 270 Mbps; 195 m @ 1.5 Gbps; 190 m @ 3 Gbps; 120 m @ 6 Gbps; 70 m @ 12 Gbps
-
ReclockingYes (reclocking on outputs, recovered input equals outputs)
-
Ancillary DataPasses all ancillary data
-
Auto FeaturesAuto input detection / auto‑sensing
-
Power Input+5–20 VDC regulated (adapter included)
-
Included Power SupplyAJA DWP‑U‑R1 universal input adapter (100–240 VAC, 50/60 Hz)
-
Power Consumption~3 W
-
Dimensions (W x D x H)147 x 79 x 25 mm (5.8 x 3.1 x 1.0 in)
-
Product Weight~0.3 kg (0.7 lb)
-
Operating Temperature0 to 40 °C
-
Storage Temperature-40 to 60 °C
-
Operating Humidity10–90% noncondensing
-
Operating Altitude< 3,000 m
-
WarrantyFive‑year warranty
-
Use Cases4K/UltraHD single‑link workflows, broadcast, live production, portable/throw‑down distribution
Ratings
Description
The AJA 12GDA is a compact, miniature 1x6 12G‑SDI reclocking distribution amplifier designed for professional broadcast and live production. It supports 12G/6G/3G/HD/SD‑SDI (100 Mbps to 12 Gbps), with one 12G‑SDI BNC input and six separately buffered 12G‑SDI BNC outputs. Features include auto input detection/auto‑sensing, reclocking, cable equalization (Belden 1694A distances supported), ancillary data pass‑through, and a universal DWP‑U‑R1 power adapter (100–240 VAC). Small form factor for portable or rack/throw‑down use. Five‑year warranty.
Technical Specifications
-
BrandAJA Video Systems
-
Model12GDA
-
MPN12GDA-R0
-
EAN/Barcode0892448000991
-
Product Type1x6 12G‑SDI Reclocking Distribution Amplifier
-
Supported SDI Rates270 Mbps, 1.5 Gbps (HD‑SDI), 3 Gbps, 6 Gbps, 12 Gbps
-
Data Rate Range100 Mbps to 12 Gbps
-
Input1 x 12G‑SDI BNC
-
Outputs6 x 12G‑SDI BNC (separately buffered)
-
SMPTE Standards SupportedSMPTE 259/292/424/2081/2082
-
Cable Equalization (Belden 1694A)405 m @ 270 Mbps; 195 m @ 1.5 Gbps; 190 m @ 3 Gbps; 120 m @ 6 Gbps; 70 m @ 12 Gbps
-
ReclockingYes (reclocking on outputs, recovered input equals outputs)
-
Ancillary DataPasses all ancillary data
-
Auto FeaturesAuto input detection / auto‑sensing
-
Power Input+5–20 VDC regulated (adapter included)
-
Included Power SupplyAJA DWP‑U‑R1 universal input adapter (100–240 VAC, 50/60 Hz)
-
Power Consumption~3 W
-
Dimensions (W x D x H)147 x 79 x 25 mm (5.8 x 3.1 x 1.0 in)
-
Product Weight~0.3 kg (0.7 lb)
-
Operating Temperature0 to 40 °C
-
Storage Temperature-40 to 60 °C
-
Operating Humidity10–90% noncondensing
-
Operating Altitude< 3,000 m
-
WarrantyFive‑year warranty
-
Use Cases4K/UltraHD single‑link workflows, broadcast, live production, portable/throw‑down distribution
