The ACS ACR1281U C1 DualBoost II is a dual interface smart card reader that supports both contact and contactless cards. It is designed for applications such as e-government, e-payment, healthcare, transportation, and access control. The device supports ISO 7816 and ISO 14443 standards and connects...
More

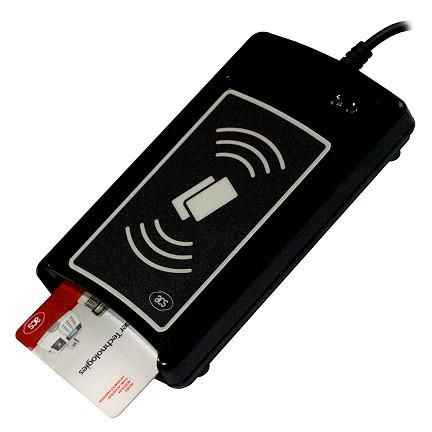

ACS ACR1281U C1 Dual Interface Reader DualBoost II USB
Product Code: 1200657275
Available in 4 - 10 days
64,84 €
or
2,02€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The ACS ACR1281U C1 DualBoost II is a dual interface smart card reader that supports both contact and contactless cards. It is designed for applications such as e-government, e-payment, healthcare, transportation, and access control. The device supports ISO 7816 and ISO 14443 standards and connects via USB 2.0 Full Speed with CCID and PC/SC compliance. Contactless operation runs at 13.56 MHz with data transfer up to 848 kbps and a reading distance of up to 50 mm depending on the tag or card. Contact card support includes ISO 7816 Class A/B/C cards, T=0 and T=1 protocols, memory cards, CAC and PIV. The reader includes one full-sized contact card slot and one SIM-sized SAM slot for secure module applications. It also features a built-in antenna, intelligent hybrid card detection, two user-controllable LEDs, a monotone buzzer, USB-powered 5V operation, RoHS compliance, and USB firmware upgradability. Typical product color is black.
-
BrandACS
-
ModelACR1281U-C1 DualBoost II
-
SKUACR1281U-C1ACSA
-
MPNACR1281U-C1ACSA
-
EAN4897129310068
-
Product TypeDual Interface Smart Card Reader
-
InterfaceUSB 2.0 Full Speed 12 Mbps
-
ComplianceCCID compliant, PC SC compliant
-
Supported StandardsISO 7816, ISO 14443
-
Operating Frequency13.56 MHz
-
Contactless Data RateUp to 848 kbps
-
Contactless Reading DistanceUp to 50 mm depending on tag/card
-
Contact Card SupportISO 7816 Class A B C 5V 3V 1.8V
-
ProtocolsT=0, T=1, PPS
-
Memory Card SupportYes
-
CAC PIV SupportYes
-
Contact Card Slot1 full-sized card slot
-
SAM Slot1 SIM-sized slot
-
AntennaBuilt-in antenna
-
Card DetectionIntelligent hybrid combi card detection
-
Indicators2 user-controllable LEDs, monotone buzzer
-
Power Supply5V DC from USB port
-
Operating Current200 mA
-
Standby Current50 mA
-
Operating Temperature0 to 50 C
-
CableFixed 2.0 m USB cable with Type A connector
-
ColorBlack
-
Dimensions120.5 x 72.0 x 20.4 mm
-
Weight140 g
-
CertificationsCE, FCC, RoHS
-
FirmwareUSB firmware upgradable
-
OS SupportPC SC, Android 3.1+
-
ApplicationsE-government, e-payment, healthcare, transportation, access control
Ratings
Description
The ACS ACR1281U C1 DualBoost II is a dual interface smart card reader that supports both contact and contactless cards. It is designed for applications such as e-government, e-payment, healthcare, transportation, and access control. The device supports ISO 7816 and ISO 14443 standards and connects via USB 2.0 Full Speed with CCID and PC/SC compliance. Contactless operation runs at 13.56 MHz with data transfer up to 848 kbps and a reading distance of up to 50 mm depending on the tag or card. Contact card support includes ISO 7816 Class A/B/C cards, T=0 and T=1 protocols, memory cards, CAC and PIV. The reader includes one full-sized contact card slot and one SIM-sized SAM slot for secure module applications. It also features a built-in antenna, intelligent hybrid card detection, two user-controllable LEDs, a monotone buzzer, USB-powered 5V operation, RoHS compliance, and USB firmware upgradability. Typical product color is black.
Technical Specifications
-
BrandACS
-
ModelACR1281U-C1 DualBoost II
-
SKUACR1281U-C1ACSA
-
MPNACR1281U-C1ACSA
-
EAN4897129310068
-
Product TypeDual Interface Smart Card Reader
-
InterfaceUSB 2.0 Full Speed 12 Mbps
-
ComplianceCCID compliant, PC SC compliant
-
Supported StandardsISO 7816, ISO 14443
-
Operating Frequency13.56 MHz
-
Contactless Data RateUp to 848 kbps
-
Contactless Reading DistanceUp to 50 mm depending on tag/card
-
Contact Card SupportISO 7816 Class A B C 5V 3V 1.8V
-
ProtocolsT=0, T=1, PPS
-
Memory Card SupportYes
-
CAC PIV SupportYes
-
Contact Card Slot1 full-sized card slot
-
SAM Slot1 SIM-sized slot
-
AntennaBuilt-in antenna
-
Card DetectionIntelligent hybrid combi card detection
-
Indicators2 user-controllable LEDs, monotone buzzer
-
Power Supply5V DC from USB port
-
Operating Current200 mA
-
Standby Current50 mA
-
Operating Temperature0 to 50 C
-
CableFixed 2.0 m USB cable with Type A connector
-
ColorBlack
-
Dimensions120.5 x 72.0 x 20.4 mm
-
Weight140 g
-
CertificationsCE, FCC, RoHS
-
FirmwareUSB firmware upgradable
-
OS SupportPC SC, Android 3.1+
-
ApplicationsE-government, e-payment, healthcare, transportation, access control
