ACO CDNP7ACC ST (G3) door entry central unit (master and slave). Supports up to 255 apartments and up to 6144 proximity keyfobs. Features individual 4-digit apartment call codes, automatic door opening, illuminated keys, acoustic and visual signaling. Can operate standalone or as an expansion unit....
More

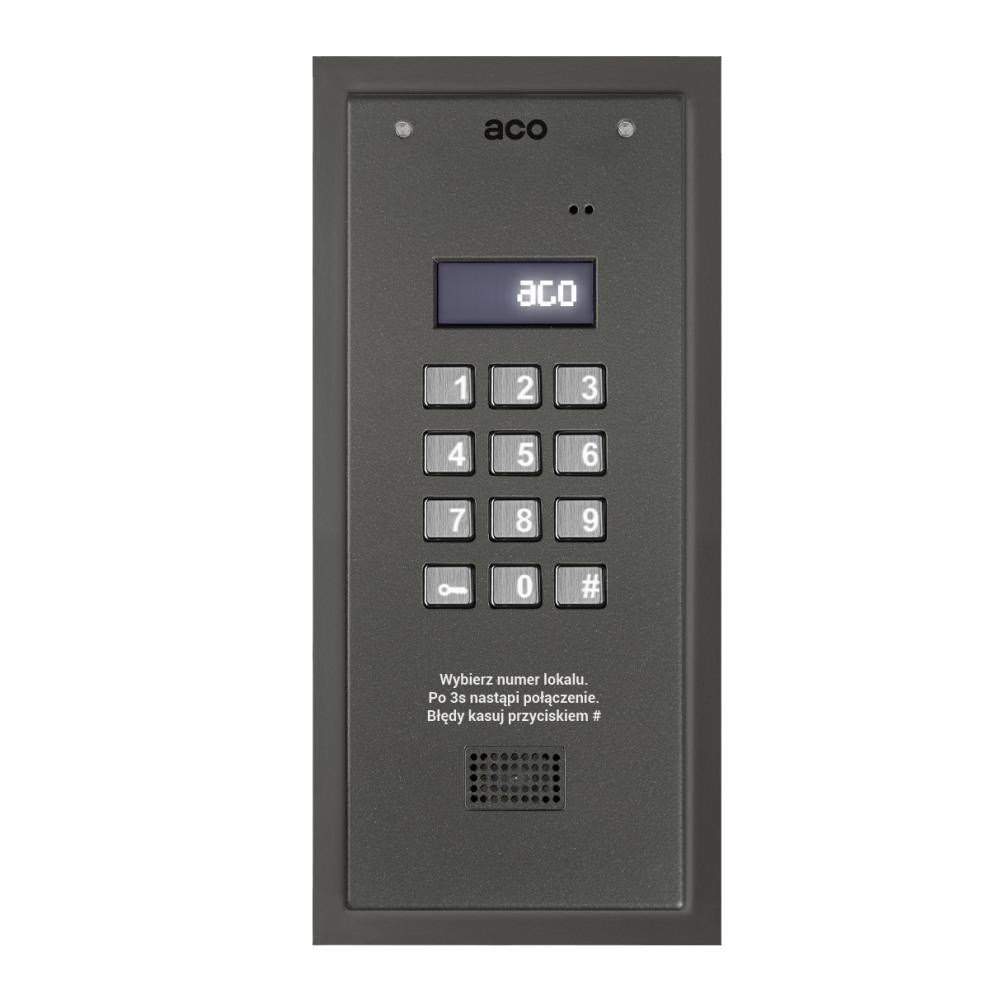

ACO CDNP7ACC ST (G3) Door Entry Central Unit (Master and Slave)
Product Code: 1127745871
Upon Order
296,17 €
or
9,25€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 889 Loyalty Points
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
ACO CDNP7ACC ST (G3) door entry central unit (master and slave). Supports up to 255 apartments and up to 6144 proximity keyfobs. Features individual 4-digit apartment call codes, automatic door opening, illuminated keys, acoustic and visual signaling. Can operate standalone or as an expansion unit. Dimensions: 206 x 88 x 29.3 mm. Wiring: 2-wire shielded/unshielded or UTP Cat5e/6. Maximum cable length 1000 m. Power supply: 15V DC / 200mA or 12V ±0.5V AC. Power consumption ~1W. Outputs: 2 x ELOCK screw terminals, 2 x audio screw terminals, 2 x relay screw terminals. Inputs: 4 x exit/button screw terminals, 1 x INPUT screw terminal. Enclosure: aluminum alloy with powder coating. Protection: IK07, IP42. Operating temperature: -20°C to 50°C. Supported language packs: PL-EN-DE-FR, PL-EN-DE-SV, EN-LT-IT-HU, UA-EN-DE-PL.
-
BrandAco
-
ModelCDNP7ACC (G3)
-
Product typeDoor entry central unit (master & slave)
-
Supported apartmentsmax 255 apartments
-
Supported proximity keyfobs6144 proximity keyfobs
-
Apartment call codeIndividual 4-digit code per apartment
-
Door openingAutomatic door opening supported
-
KeypadIlluminated keys
-
SignalingAcoustic and visual signaling
-
Operation modeStandalone or expansion (master/slave)
-
Wiring2-core shielded/unshielded or UTP Cat5e/6
-
Maximum cable length1000 m
-
Power supply15V DC / 200mA or 12V ±0.5V AC
-
Power consumption~1W
-
Outputs2 x ELOCK screw terminals; 2 x audio screw terminals; 2 x relay screw terminals
-
Inputs4 x exit/button screw terminals; 1 x INPUT screw terminal
-
Enclosure materialAluminum alloy with powder coating
-
MountingFlush or surface mounting (unit suitable for installation in panel)
-
Protection ratingsIK07, IP42
-
Operating temperature range-20 °C to 50 °C
-
Dimensions206 mm x 88 mm x 29.3 mm
-
Languages supportedPL-EN-DE-FR, PL-EN-DE-SV, EN-LT-IT-HU, UA-EN-DE-PL
Ratings
Description
ACO CDNP7ACC ST (G3) door entry central unit (master and slave). Supports up to 255 apartments and up to 6144 proximity keyfobs. Features individual 4-digit apartment call codes, automatic door opening, illuminated keys, acoustic and visual signaling. Can operate standalone or as an expansion unit. Dimensions: 206 x 88 x 29.3 mm. Wiring: 2-wire shielded/unshielded or UTP Cat5e/6. Maximum cable length 1000 m. Power supply: 15V DC / 200mA or 12V ±0.5V AC. Power consumption ~1W. Outputs: 2 x ELOCK screw terminals, 2 x audio screw terminals, 2 x relay screw terminals. Inputs: 4 x exit/button screw terminals, 1 x INPUT screw terminal. Enclosure: aluminum alloy with powder coating. Protection: IK07, IP42. Operating temperature: -20°C to 50°C. Supported language packs: PL-EN-DE-FR, PL-EN-DE-SV, EN-LT-IT-HU, UA-EN-DE-PL.
Technical Specifications
-
BrandAco
-
ModelCDNP7ACC (G3)
-
Product typeDoor entry central unit (master & slave)
-
Supported apartmentsmax 255 apartments
-
Supported proximity keyfobs6144 proximity keyfobs
-
Apartment call codeIndividual 4-digit code per apartment
-
Door openingAutomatic door opening supported
-
KeypadIlluminated keys
-
SignalingAcoustic and visual signaling
-
Operation modeStandalone or expansion (master/slave)
-
Wiring2-core shielded/unshielded or UTP Cat5e/6
-
Maximum cable length1000 m
-
Power supply15V DC / 200mA or 12V ±0.5V AC
-
Power consumption~1W
-
Outputs2 x ELOCK screw terminals; 2 x audio screw terminals; 2 x relay screw terminals
-
Inputs4 x exit/button screw terminals; 1 x INPUT screw terminal
-
Enclosure materialAluminum alloy with powder coating
-
MountingFlush or surface mounting (unit suitable for installation in panel)
-
Protection ratingsIK07, IP42
-
Operating temperature range-20 °C to 50 °C
-
Dimensions206 mm x 88 mm x 29.3 mm
-
Languages supportedPL-EN-DE-FR, PL-EN-DE-SV, EN-LT-IT-HU, UA-EN-DE-PL
