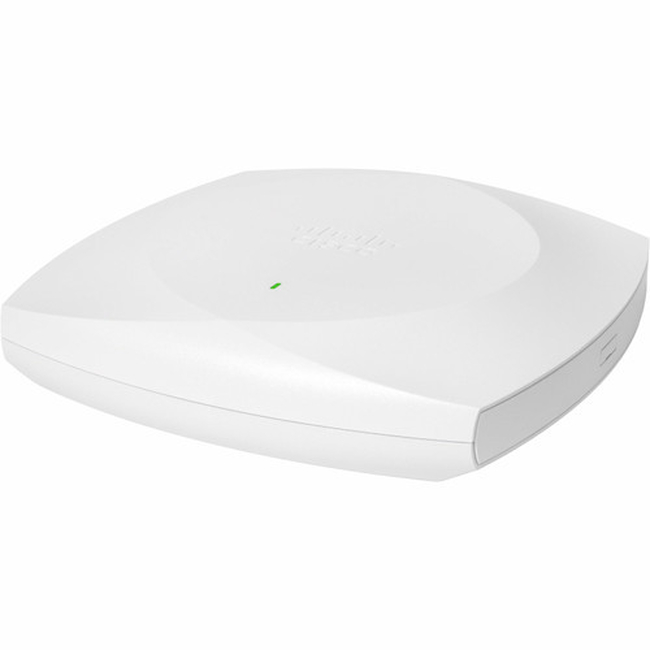

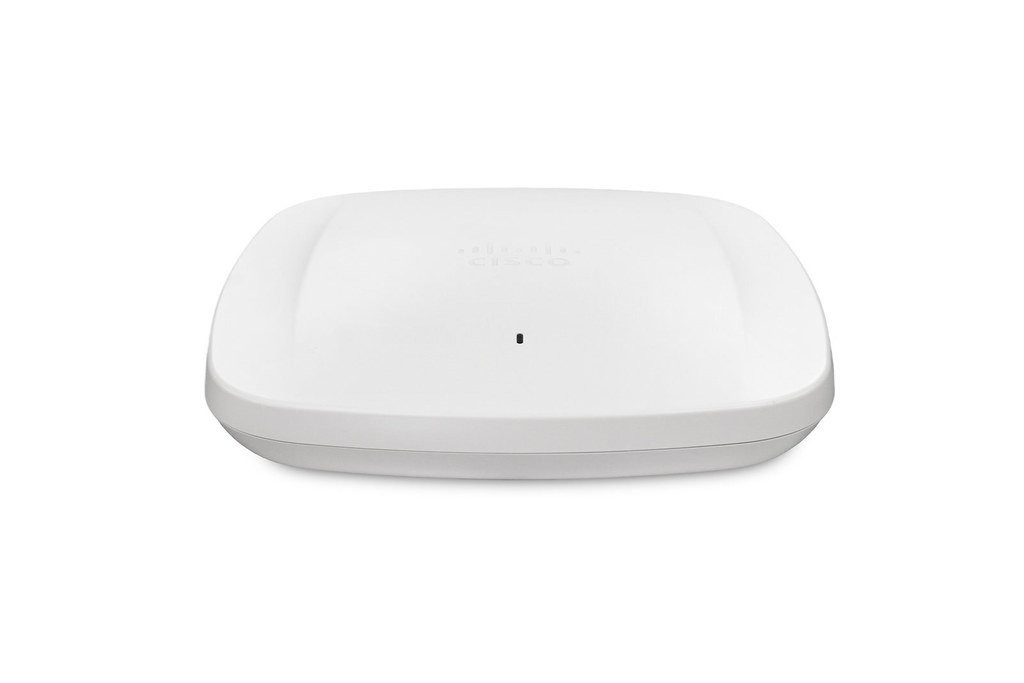

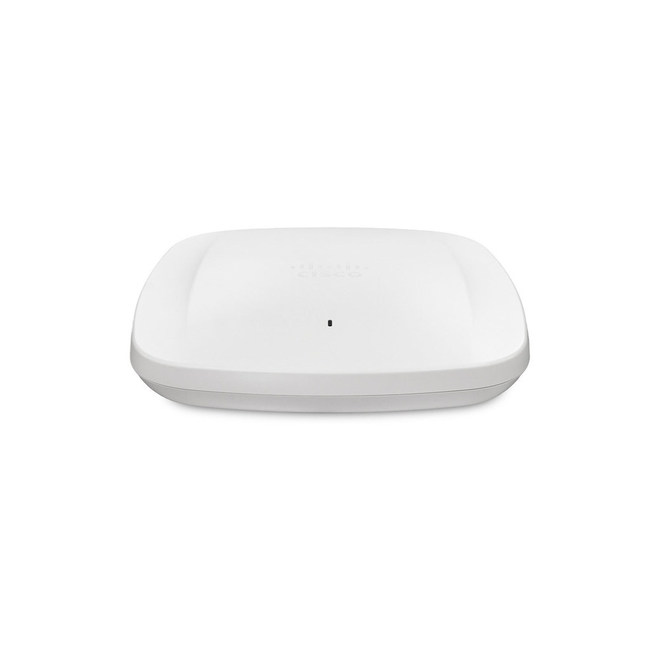

The Cisco Wireless 9172H (W73 RADIO3) is a cutting-edge indoor wall-mounted access point designed to deliver high-performance wireless connectivity utilizing Wi-Fi 7 technology. Its innovative features make it ideal for enterprise environments that demand reliable and fast connections.

This access point supports tri-band, tri-radio operation across the 2.4 GHz, 5 GHz, and 6 GHz frequency bands, thanks to its six integrated omnidirectional antennas. Its capabilities include 2x2:2 MU-MIMO on all bands, providing a total of six spatial streams for ultra-fast simultaneous data transmission.

Key Technical Specifications

• Wi-Fi Standard: 802.11be (Wi-Fi 7), fully backward compatible with 802.11ax and 802.11ac clients.
• Radio Configuration: Tri-concurrent radios each supporting 2x2:2 MIMO, achieving 6 spatial streams.
• Aggregate Frame Rate: Up to 9 Gbps tri-radio throughput.
• Ethernet Ports:
  • One 2.5 Gbps multigigabit Ethernet port.
  • Three 1 Gbps wired LAN ports, one with Power over Ethernet (PoE).
  • One passthrough port.
• Bluetooth: Integrated Bluetooth Low Energy (BLE) 5 for tracking and scanning.
• Security: Enterprise-grade security with real-time WIDS/WIPS monitoring.
• Management: Easy setup with support for various network management platforms.
• Dimensions: Approximately 20 x 20 x 5.3 cm, weighing about 874 grams.
• Additional Features: Application-aware traffic shaping for optimized communication.

In summary, the Cisco Wireless 9172H provides a robust wireless infrastructure solution tailored for modern office environments, focusing on performance, manageability, and advanced security.
