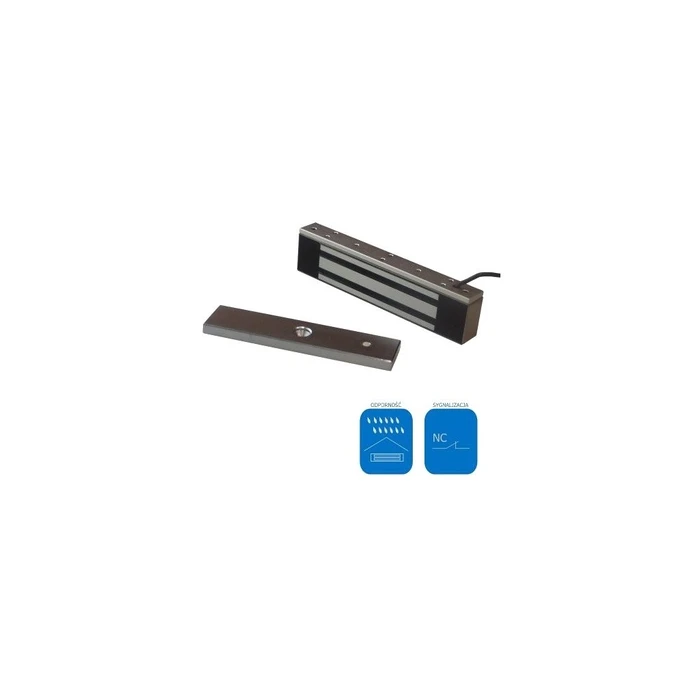

The Access Control Scot EL-800WS zew is a robust solution for secure outdoor access control.
With a remarkable holding force of 350 kg, this electromagnetic lock is specifically engineered to withstand significant pressure while ensuring maximum security.
Key Features
- Intended Use: Designed for external applications with an IP68 protection rating, guaranteeing its performance in harsh environmental conditions.
- Power Supply: Operates at 12V DC (500mA) or 24V DC (250mA) for flexible use.
- Signaling: Integrated signaling through a normally closed (NC) contact for effective monitoring of the lock status.
Dimensions
The lock body measures:
- 228 mm (W) x 52 mm (H) x 27 mm (D)
Additionally, the mounting plate dimensions are:
- 190 mm x 45 mm x 11.5 mm
Operating Conditions
- Temperature Range: -20°C to +55°C
- Maximum Surface Temperature: ?+20°C during operation
- Humidity: Functions in environments with 0 to 95% relative humidity, without condensation.
This electromagnetic lock is ideal for outdoor environments requiring secure locking mechanisms and reliable operational signaling.
-
Holding Force350 kg
-
Power Supply12V DC / 24V DC
-
Power Consumption500mA / 250mA
-
Dimensions (Electromagnet Lock Body)228 mm x 52 mm x 27 mm
-
Dimensions (Mounting Plate)190 mm x 45 mm x 11.5 mm
-
Operating Temperature Range-20°C to +55°C
-
Maximum Lock Surface Temperature?+20°C
-
Relative Humidity0 to 95%
-
Mounting MethodInstalled in the door frame space
Ratings
Description
The Access Control Scot EL-800WS zew is a robust solution for secure outdoor access control.
With a remarkable holding force of 350 kg, this electromagnetic lock is specifically engineered to withstand significant pressure while ensuring maximum security.
Key Features
- Intended Use: Designed for external applications with an IP68 protection rating, guaranteeing its performance in harsh environmental conditions.
- Power Supply: Operates at 12V DC (500mA) or 24V DC (250mA) for flexible use.
- Signaling: Integrated signaling through a normally closed (NC) contact for effective monitoring of the lock status.
Dimensions
The lock body measures:
- 228 mm (W) x 52 mm (H) x 27 mm (D)
Additionally, the mounting plate dimensions are:
- 190 mm x 45 mm x 11.5 mm
Operating Conditions
- Temperature Range: -20°C to +55°C
- Maximum Surface Temperature: ?+20°C during operation
- Humidity: Functions in environments with 0 to 95% relative humidity, without condensation.
This electromagnetic lock is ideal for outdoor environments requiring secure locking mechanisms and reliable operational signaling.
Technical Specifications
-
Holding Force350 kg
-
Power Supply12V DC / 24V DC
-
Power Consumption500mA / 250mA
-
Dimensions (Electromagnet Lock Body)228 mm x 52 mm x 27 mm
-
Dimensions (Mounting Plate)190 mm x 45 mm x 11.5 mm
-
Operating Temperature Range-20°C to +55°C
-
Maximum Lock Surface Temperature?+20°C
-
Relative Humidity0 to 95%
-
Mounting MethodInstalled in the door frame space
