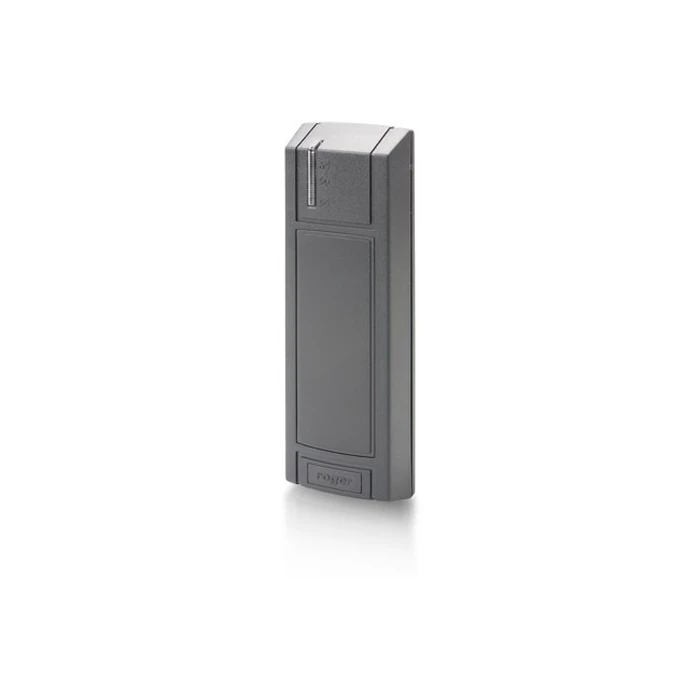

Access Control Roger MCT12E-BK proximity Reader
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
The Roger MCT12E-BK Proximity Reader is a robust and versatile access control terminal designed for the RACS 5 system. It is engineered to provide secure and efficient identification of users through both proximity cards and PIN entry.
Key Features
- Identification Methods: The MCT12E-BK supports identification using EM125kHz (UNIQUE) proximity cards and PIN entry, ensuring high security and flexibility in user access management.
- Communication Interface: It communicates via an RS485 interface for seamless integration with the RACS 5 access controller, enabling centralized management of access permissions.
- LED Indicators and Buzzer: Features three LED indicators and a buzzer for visual and auditory feedback during user authentication and system status.
- Keypad and Function Keys: Includes a silicone rubber keypad with backlight for secure PIN entry and two function keys for additional control options.
Inputs and Outputs: The MCT12E-BK has three NO/NC inputs and two transistor outputs, along with one relay output to control external devices.
Power Supply and Dimensions: Operates on a 12 VDC power supply. It measures 152.5 mm x 46 mm x 23 mm, designed for compactness and durability.
Environmental Class and IP Code: Classified as IP65, it provides high protection against dust and water, operating in temperatures from -25°C to +60°C.
Tamper Protection: Features anti-sabotage protection to prevent unauthorized access and tampering.
Firmware Updates: Supports firmware updates to enhance functionality and security over time.
-
Card Reading Range7 cm
-
Average Current Consumption40 mA
-
Card SupportEM125kHz
Ratings
Description
The Roger MCT12E-BK Proximity Reader is a robust and versatile access control terminal designed for the RACS 5 system. It is engineered to provide secure and efficient identification of users through both proximity cards and PIN entry.
Key Features
- Identification Methods: The MCT12E-BK supports identification using EM125kHz (UNIQUE) proximity cards and PIN entry, ensuring high security and flexibility in user access management.
- Communication Interface: It communicates via an RS485 interface for seamless integration with the RACS 5 access controller, enabling centralized management of access permissions.
- LED Indicators and Buzzer: Features three LED indicators and a buzzer for visual and auditory feedback during user authentication and system status.
- Keypad and Function Keys: Includes a silicone rubber keypad with backlight for secure PIN entry and two function keys for additional control options.
Inputs and Outputs: The MCT12E-BK has three NO/NC inputs and two transistor outputs, along with one relay output to control external devices.
Power Supply and Dimensions: Operates on a 12 VDC power supply. It measures 152.5 mm x 46 mm x 23 mm, designed for compactness and durability.
Environmental Class and IP Code: Classified as IP65, it provides high protection against dust and water, operating in temperatures from -25°C to +60°C.
Tamper Protection: Features anti-sabotage protection to prevent unauthorized access and tampering.
Firmware Updates: Supports firmware updates to enhance functionality and security over time.
Technical Specifications
-
Card Reading Range7 cm
-
Average Current Consumption40 mA
-
Card SupportEM125kHz
