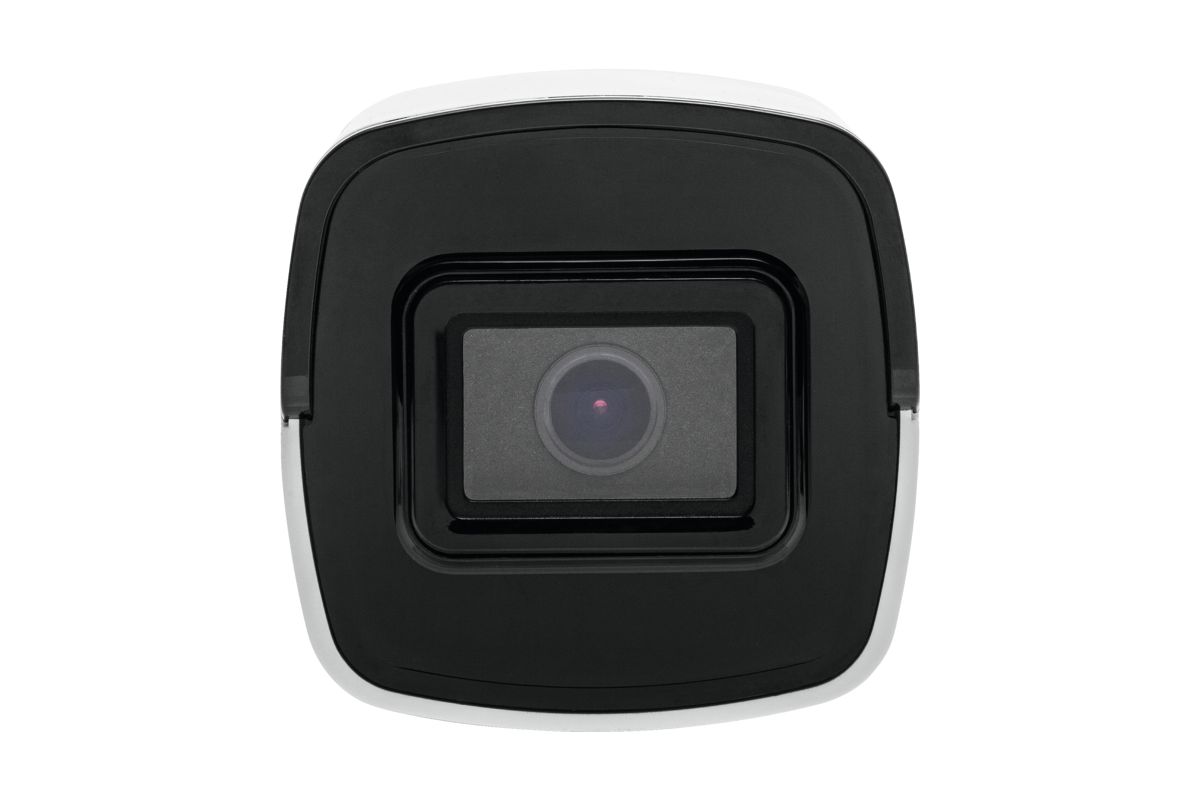

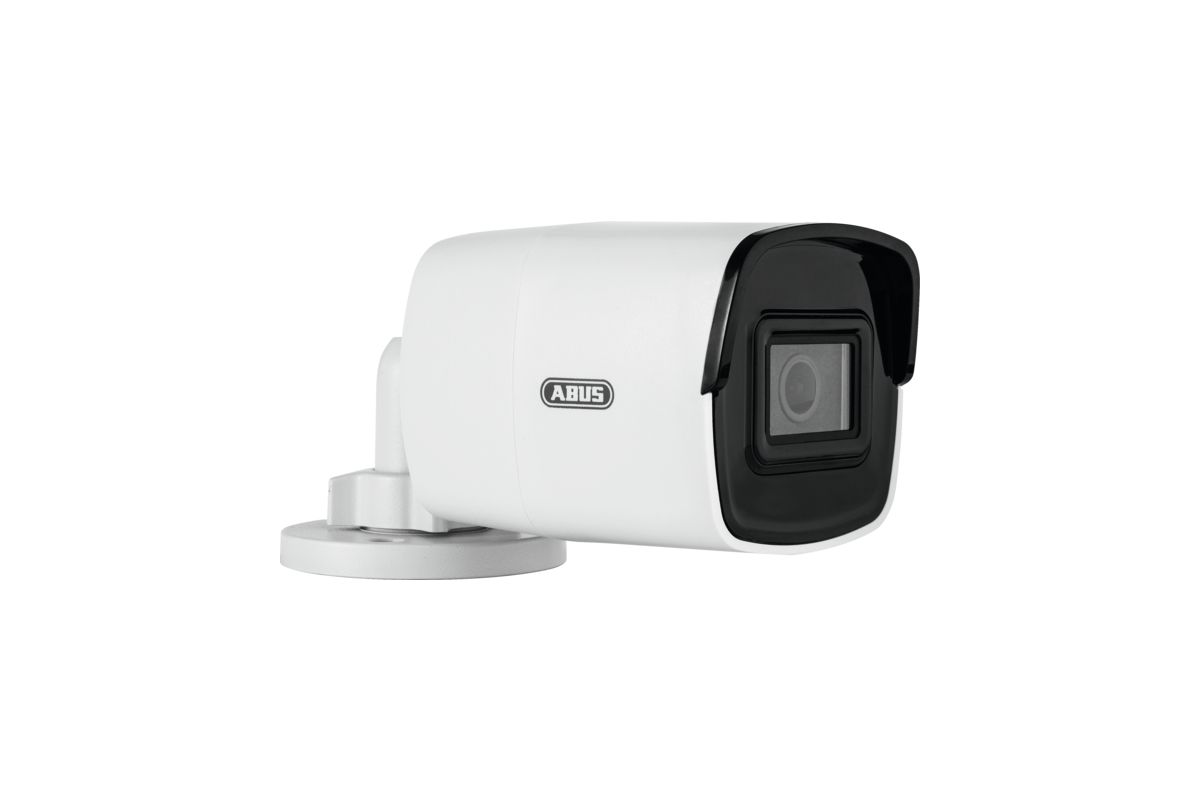

ABUS 8 MP PoE IP Mini-Tube Camera - TVIP68511

Description

Technical Specifications

• Brand
  ABUS
• Model / MPN
  TVIP68511
• SKU
  600148
• EAN / Barcode
  4043158200478
• Category
  IP camera / Network surveillance camera / Mini-Tube
• Maximum resolution
  8 MP (3840 x 2160)
• Maximum frame rate
  Up to ~20 fps at 4K (variant dependent)
• Video compression
  H.264, H.265, MJPEG
• Sensor
  Progressive Scan CMOS
• Lens
  Fixed lens (4 mm common for this SKU; 2.8 mm and 6 mm variants exist in the family)
• Viewing angle
  Variant dependent (e.g. ~107° for 2.8 mm variant)
• WDR
  True WDR 120 dB
• Night vision
  IR LEDs (range variant dependent: ~10 m to ~40 m on product-sheet variants)
• Day/Night
  IR cut filter / Night mode support
• PoE standard
  IEEE 802.3af (PoE)
• Power input
  12 V DC and PoE
• Protection class
  IP67 (weatherproof)
• Storage
  microSD card slot (local storage)
• Streams
  Multiple simultaneous streams supported (including lower-resolution secondary streams)
• Motion detection
  Yes (motion detection supported)
• Housing / Form factor
  Mini-tube, compact weatherproof housing, suitable for wall/ceiling mount
• Dimensions
  Approx. 155 x 74 x 74 mm (variant listing) / 170 x 70 x 69 mm (product sheet variant)
• Weight
  Approximately 300 g (camera only)
• Materials
  Robust weatherproof housing (metal/plastic construction typical)
• Use case
  Outdoor/Indoor professional monitoring / 24/7 surveillance
