The ABB SA/S8.16.5.2 is a KNX/i-bus switching actuator (Schaltaktor) with 8 independent outputs, designed for switching electrical consumers — optimized for C-loads with high inrush currents (e.g. lighting with capacitive compensation, fluorescent lamp loads). It features 8 potential-free contacts,...
More

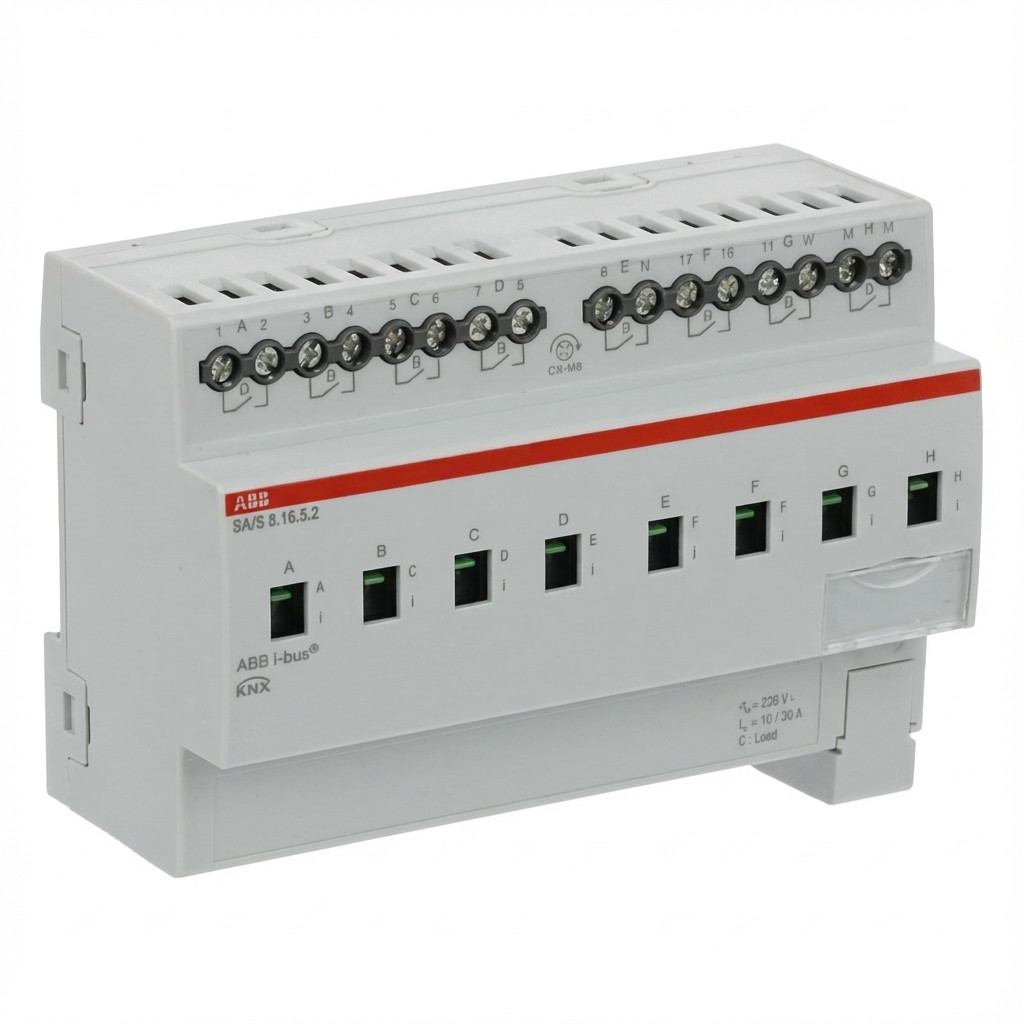

ABB SA/S8.16.5.2 Switching Actuator (Schaltaktor) 8-fold 16 A C-load REG — 2CDG110267R0011
Product Code: 1173703624
Available in 4 - 6 days
524,71 €
or
16,39€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The ABB SA/S8.16.5.2 is a KNX/i-bus switching actuator (Schaltaktor) with 8 independent outputs, designed for switching electrical consumers — optimized for C-loads with high inrush currents (e.g. lighting with capacitive compensation, fluorescent lamp loads). It features 8 potential-free contacts, manual local control per output, switch-state indication LEDs, DIN-rail (REG) mounting and KNX (TP) bus compatibility. Name indicates 16 A switching per channel; some datasheet entries reference up to 20 A in specific ratings — consult manufacturer datasheet for load-specific limits. Max switching power listed 3680 W, standby power approx. 8 W. Dimensions: 140 mm × 90 mm × 63.5 mm, installation depth 64.5 mm, width 8 TE, weight ≈ 452 g, IP20, ambient temperature -5 °C to +45 °C. MPN: 2CDG110267R0011, EAN: 4016779066495, SKU: 21316924.
-
BrandABB
-
Model / TypeSA/S8.16.5.2 (Schaltaktor)
-
MPN2CDG110267R0011
-
SKU21316924
-
EAN / Barcode4016779066495
-
Product typeKNX / i-bus switching actuator (Schaltaktor)
-
Number of outputs8 independent outputs
-
Contact typePotential-free contacts (relays)
-
Rated current (name)16 A (per product name)
-
Rated / max current (datasheet variants)Datasheet references up to 20 A in some entries — check manufacturer datasheet for exact load ratings
-
Max switching power3680 W
-
Supported bus systemKNX (TP)
-
Supply / operating voltage230 V AC (KNX bus powered)
-
Load types supportedOhmic, capacitive and inductive loads; optimized for C-loads / high inrush currents
-
Manual local controlYes (manual operation per output)
-
Switch indicationLED for switching state
-
Standby / loss powerApprox. 8 W
-
Mounting typeDIN-rail (REG)
-
Width8 TE (8 Teilungseinheiten)
-
Dimensions (W×H×D)140 mm × 90 mm × 63.5 mm
-
Installation depth64.5 mm
-
Weight (product)≈ 452 g
-
ColorLight gray
-
Protection ratingIP20
-
Operating ambient temperature-5 °C to +45 °C
-
Number of LEDs1
-
Number of batteries0
Ratings
Description
The ABB SA/S8.16.5.2 is a KNX/i-bus switching actuator (Schaltaktor) with 8 independent outputs, designed for switching electrical consumers — optimized for C-loads with high inrush currents (e.g. lighting with capacitive compensation, fluorescent lamp loads). It features 8 potential-free contacts, manual local control per output, switch-state indication LEDs, DIN-rail (REG) mounting and KNX (TP) bus compatibility. Name indicates 16 A switching per channel; some datasheet entries reference up to 20 A in specific ratings — consult manufacturer datasheet for load-specific limits. Max switching power listed 3680 W, standby power approx. 8 W. Dimensions: 140 mm × 90 mm × 63.5 mm, installation depth 64.5 mm, width 8 TE, weight ≈ 452 g, IP20, ambient temperature -5 °C to +45 °C. MPN: 2CDG110267R0011, EAN: 4016779066495, SKU: 21316924.
Technical Specifications
-
BrandABB
-
Model / TypeSA/S8.16.5.2 (Schaltaktor)
-
MPN2CDG110267R0011
-
SKU21316924
-
EAN / Barcode4016779066495
-
Product typeKNX / i-bus switching actuator (Schaltaktor)
-
Number of outputs8 independent outputs
-
Contact typePotential-free contacts (relays)
-
Rated current (name)16 A (per product name)
-
Rated / max current (datasheet variants)Datasheet references up to 20 A in some entries — check manufacturer datasheet for exact load ratings
-
Max switching power3680 W
-
Supported bus systemKNX (TP)
-
Supply / operating voltage230 V AC (KNX bus powered)
-
Load types supportedOhmic, capacitive and inductive loads; optimized for C-loads / high inrush currents
-
Manual local controlYes (manual operation per output)
-
Switch indicationLED for switching state
-
Standby / loss powerApprox. 8 W
-
Mounting typeDIN-rail (REG)
-
Width8 TE (8 Teilungseinheiten)
-
Dimensions (W×H×D)140 mm × 90 mm × 63.5 mm
-
Installation depth64.5 mm
-
Weight (product)≈ 452 g
-
ColorLight gray
-
Protection ratingIP20
-
Operating ambient temperature-5 °C to +45 °C
-
Number of LEDs1
-
Number of batteries0
