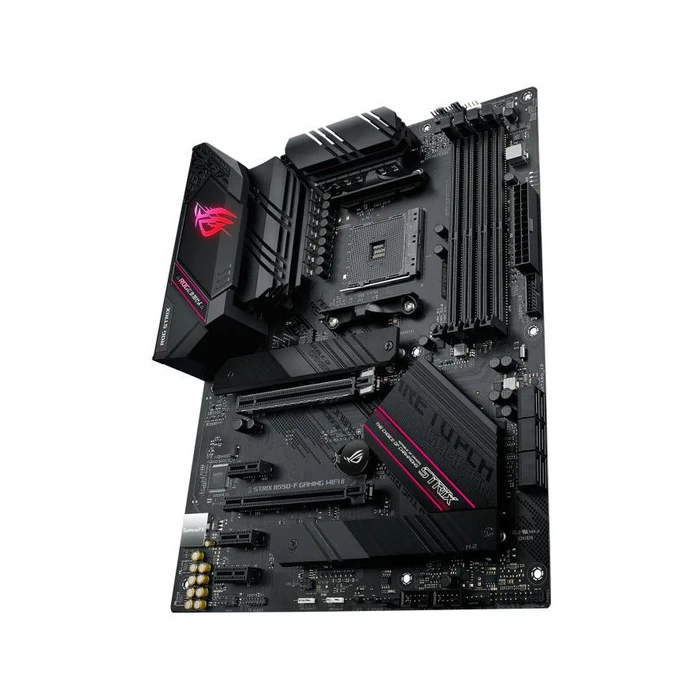

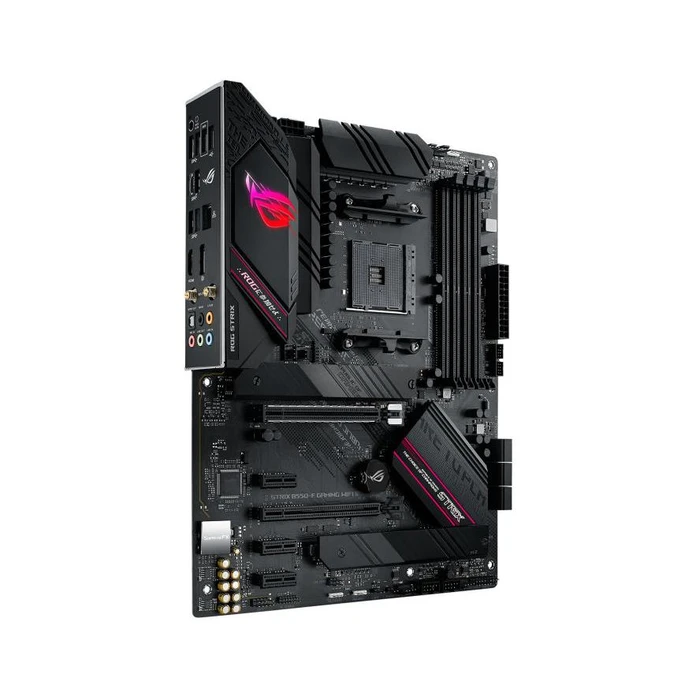

Motherboard Asus ROG STRIX B550-F GAMING (WI-FI II)(AMD,AM4,DDR4,ATX)

Technical Specifications

• BIOS type
  UEFI AMI
• BIOS memory size
  256 Mbit
• processor manufacturer
  AMD
• processor socket
  Socket AM4
• Compatible processors
  3rd Gen AMD Ryzen™ 3, 3rd Gen AMD Ryzen™ 5, 3rd Gen AMD Ryzen™ 7, 3rd Gen AMD Ryzen™ 9
• Maximum number of SMP processors
  1
• Supported memory
  DDR4 SDRAM
• Number of memory slots
  4
• memory type
  DIMM
• Supported memory speed
  2133,2400,2666,2800,3000,3200,3466,3600,3866,4000,4133,4400,4600MHz
• RAM memory maximum
  128GB
• Supported storage drives
  HDD & SSD
• Supported storage drive interfaces
  M.2,SATA III
• Maximum supported number of HDD
  6
• RAID levels
  0,1,10
• Parallel processing technology
  Unsupported
• Number of USB 2.0 interfaces
  2
• USB 3.2 Gen 1 (3.1 Gen 1) ports
  1
• USB 3.2 Gen 2 (3.1 Gen 2) ports
  1
• SATA III connectors
  6
• Number of EATX power plugs
  1
• CPU fan connector
  yes
• Number of chassis fan plugs
  3
• Number of Molex connectors 4pin
  1
• EPS power connector (8-pin)
  yes
• 12V power connection
  yes
• Thunderbolt headers
  1
• RGB LED header
  yes
• Number of USB 2.0 ports
  2
• USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports
  4
• USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports
  1
• USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C ports
  1
• Number of Ethernet LAN ports (RJ-45)
  1
• Number of HDMI ports
  1
• HDMI version
  2.1
• Number of DisplayPort connections
  1
• DisplayPorts version
  1.2
• headphone outputs
  1
• Microphone input
  yes
• S/PDIF output
  yes
• Built-in Ethernet port
  yes
• Ethernet interfaces type
  2.5 Gigabit Ethernet
• LAN controller
  Intel I225-V
• Wake on LAN ready
  yes
• WIRELESS INTERNET ACCESS
  yes
• Top WLAN standard
  WiFi 6 (802.11ax)
• WLAN standards
  802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
• Bluetooth
  yes
• Bluetooth version
  5.2
• component for
  personal computer
• motherboard form factor
  ATX
• Motherboard chipset family
  AMD
• motherboard chipset
  AMD B550
• audio channels
  7.1 channels
• cooling
  active
• energy source
  ATX
• Supports Windows operating systems
  Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10x64
• PCI Express x1 (Gen 3.x) connectors
  3
• PCI Express x16 slots (Gen 4.x)
  1
• PCI Express x16 (Gen 3.x) connectors
  1
• Number of M.2 (M) slots
  2
• Supplied cables
  SATA
• drivers included
  yes
• broad
  305mm
• depth
  244mm
