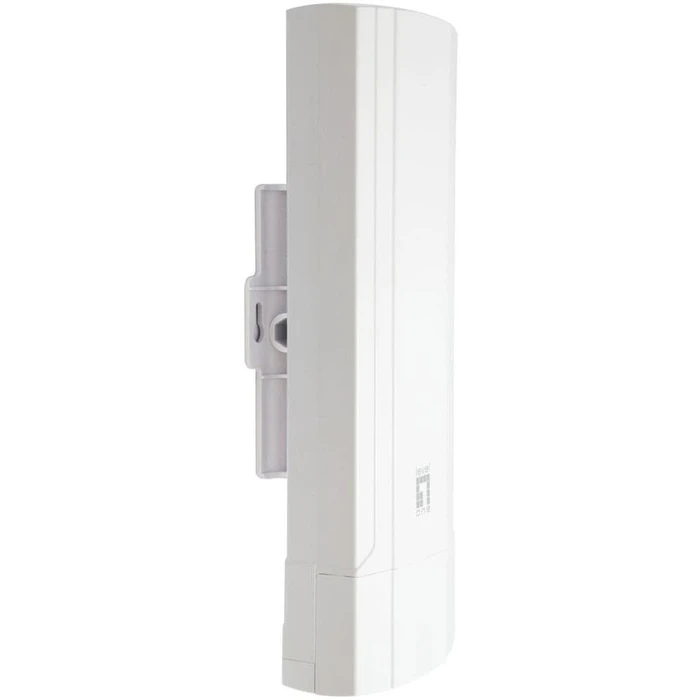

Access Point LevelOne WLAN & Extender outdoor 5GHz PoE

Technical Specifications

• Supported security algorithms
  WEP,WPA,WPA2
• Number of SSID support
  4

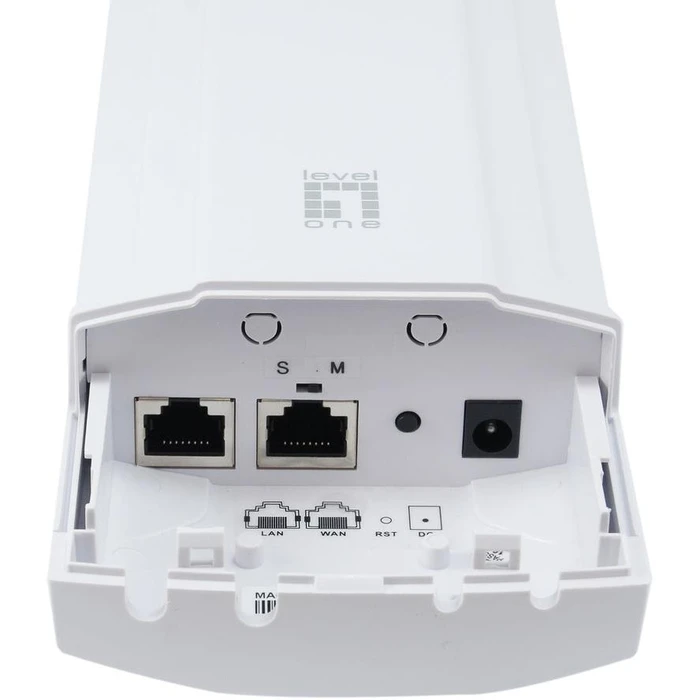

• Number of Ethernet LAN ports (RJ-45)
  1
• WAN port
  Ethernet (RJ-45)
• DC connection
  yes
• Power over Ethernet (PoE)
  yes
• AC input voltage
  12v
• input current
  1.5A
• placement
  pole
• product color
  White
• International degree of protection (IP code)
  IP65
• LED indicators
  LAN, system, WAN
• country of origin
  China
• antenna type
  Internal
• number of antennas
  1
• Antenna gain level (max)
  14dBi
• Built-in processor
  yes
• processor manufacturer
  Qualcomm
• Flash memory
  16MB
• RAM
  128MB
• Internal storage type
  DDR2
• 2.4GHz
  no
• 5GHz
  yes
• Maximum data transfer rate
  867 Mbps
• Ethernet LAN data transfer rates
  10,100,1000Mbps
• frequency band
  4.92 - 5.92GHz
• mesh standard
  IEEE 802.11a,IEEE 802.11ac,IEEE 802.11n,IEEE 802.3af,IEEE 802.3at
• wiring technology
  10/100/1000Base-T(X)
• number of channels
  165 channels
• MIMO
  yes
• MIMO type
  Multi-user MIMO
• Maximum outside distance
  5000m
• Operating relative humidity
  10 - 90%
• operating temperature range
  -30 - 45?
• Storage temperature range
  -40 - 75?
• humidity during storage
  5 - 95%
• pallet net depth
  80 cm
• pallet net height
  164 cm
• sustainability certificates
  CE, RoHS
• Number of boxes per pallet (air)
  24 piece(s)
• pallet net width
  120 cm
• Shipping box width
  35 cm
• Shipping carton length
  49.5 cm
• Shipping carton height
  45.5 cm
• Shipping carton weight
  15kg
• Quantity per shipping carton
  20 piece(s)
• Supplied cables
  LAN (RJ-45)
• assembly set
  yes
• Quick Start Overview
  yes
• packaging width
  106mm
• packing depth
  332mm
• packing height
  95mm
• package weight
  660g
• broad
  87mm
• depth
  257mm
• height
  45mm
• Weight
  440g
