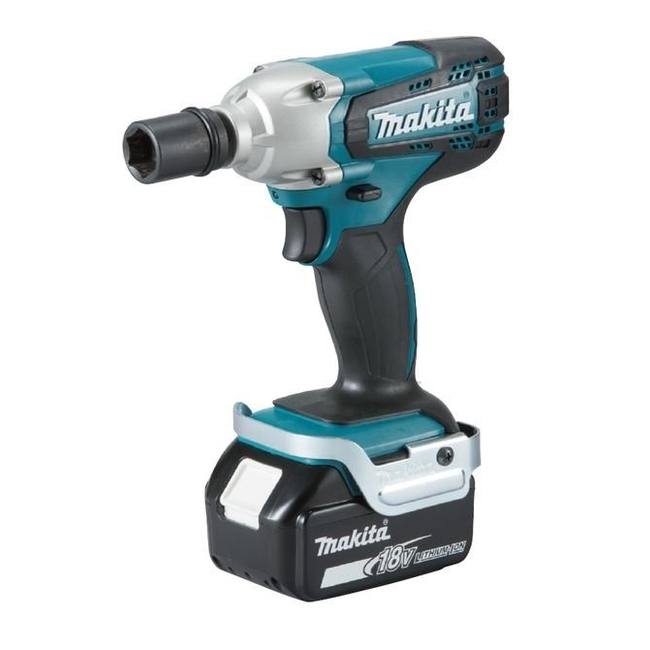

The Makita 18V DTW190RFJ is a high-performance cordless impact wrench designed for demanding fastening tasks. It is part of the reputable LXT series, recognized for its reliability and efficiency.

This impact wrench is compact and lightweight, making it easy to maneuver in tight spaces. Its robust design features a square drive of 12.7 mm (1/2 inch), suitable for a wide range of applications.

Technical Specifications

• Nominal Battery Voltage: 18 V
• Max Fastening Torque: 190 N·m (1680 in·lbs)
• No Load Speed: 0 – 2,300 RPM
• Impacts Per Minute (IPM): 0 – 3,000
• Tightening Capacity:
• Standard Bolt: M8 – M16 (5/16 inch – 5/8 inch)
• High Strength Bolt: M8 – M12 (5/16 inch – 1/2 inch)
• Square Drive: 12.7 mm (1/2 inch)
• Dimensions: 176 x 79 x 219 mm (with battery)
• Net Weight: 1.4 kg (3.0 lbs)
• Sound Power Level: 105 dB(A)
• Sound Pressure Level: 94 dB(A)
• Noise Uncertainty (K Factor): 3 dB(A)
• Vibration Level (Impact Tightening): 8.5 m/s²
• Vibration Uncertainty (K Factor): 1.5 m/s²
• Max Output Power: 210 W
• Battery Protection Circuit: Designed to prevent over-discharge and over-charge of the batteries.

Standard Accessories

• DTW190RFE: Includes Rapid Charger (DC18RC) and 2 x 18V – 3.0Ah Batteries (BL1830B)
• DTW190Z: Bare Tool (Battery and charger sold separately)

Additional Features

• Electric Brake: Provides quick and secure stopping of the tool.
• Variable Speed Control Trigger: Allows for precise control over the tool's speed.
• Forward/Reverse Rotation: Enables easy handling of bolts and nuts.
• LED Job Light: Enhances visibility in low-light environments.
• Shoulder Strap & Tool Catcher: Optional accessories for added convenience.

The Makita DTW190RFJ is an ideal tool for professionals and DIY enthusiasts who require a reliable and powerful impact wrench for various fastening tasks. Its robust design, high torque output, and efficient battery life make it a valuable addition to any toolkit.
