Detailed Description

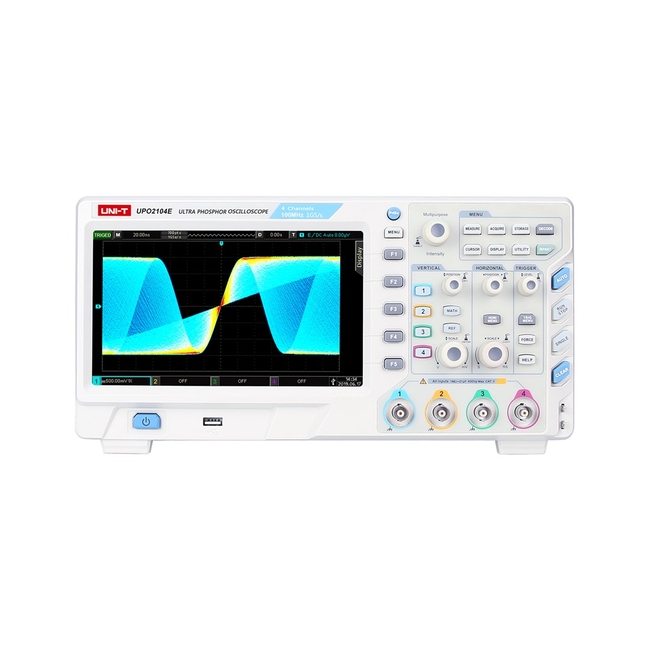

The Uni-T UPO2104E oscilloscope is a cutting-edge device specifically engineered for high-performance signal analysis. It belongs to the renowned UPO2000E Series, a name synonymous with innovation and superior specifications.

One of the standout features of the UPO2104E is its impressive bandwidth. It boasts a frequency capacity of 100 MHz, allowing for the precise measurement of a variety of signals. Users benefit from:

  • Four analog channels for simultaneous measurements.
  • A real-time sample rate of 1 GSa/s to ensure high-fidelity signal capture.
  • A substantial memory depth of 56 Mpts with one channel engaged.

Moreover, the oscilloscope features an 8-inch TFT LCD display with a resolution of 800x480 pixels, offering crystal-clear waveform visualization. The capture rate is another highlight, reaching up to 80,000 waveforms per second, making it exceptionally capable of handling rapid signal changes.

Designed with precision in mind, the UPO2104E ensures minimal signal distortion, thanks to its 1 MΩ input impedance and a capacitance of 21 pF. This contributes to its reliability across various applications.

Specifications

  • Bandwidth
    • 100 MHz
  • Channels
    • 4
  • Sample Rate
    • 1 GSa/s
  • Memory Depth (one channel)
    • 56 Mpts
  • Memory Depth (all channels)
    • 28 Mpts per channel
  • Capture Rate
    • 80,000 wfms/s
  • Rise Time
    • < 3.5 ns
  • Input Impedance
    • 1 MΩ ± 2%
  • Input Capacitance
    • 21 pF ± 3 pF
  • Dimensions
    • 108 mm x 336 mm x 164 mm
  • Weight
    • 3.5 kg
  • Warranty
    • 3 years
