Μετρητής Uni-T Insulation Resistance Meter UT502A

137,45 €
TBI Bank
Up to 36 instalments by credit card x 4,29€ / month
Product Availability
call us
Need help?

Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.

Call us now!
Shop now
Methods of Pickup/Shipment
  • Pickup from the store:
    El. Ave. Venizelou 73 (formerly Theseos), Kallithea
  • Pick up from a BoxNow machine:
    With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
  • Shipping to your location (Calculate shipping):

Detailed Description

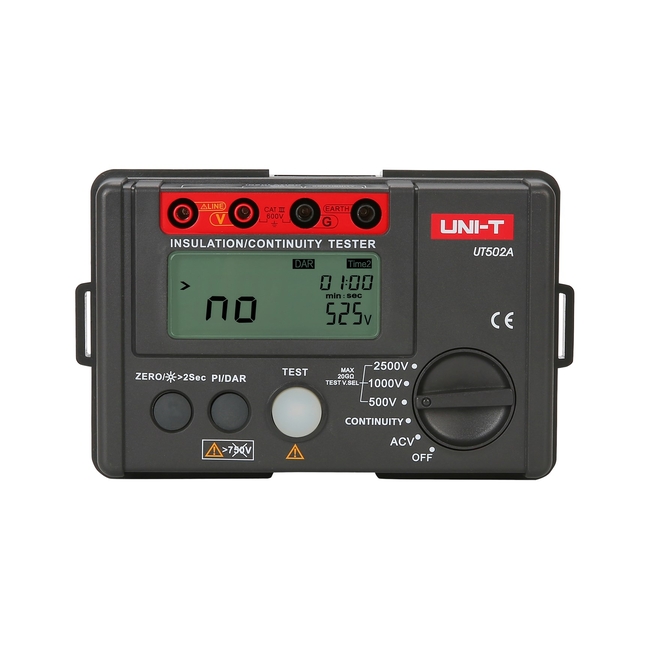

The UNI-T Insulation Resistance Meter UT502A is a specialized digital device designed to measure insulation resistance in electrical equipment and household appliances. This meter is a part of the renowned UT500 series that emphasizes high accuracy and stable performance.

Key Features

  • Measuring Range: The UT502A measures insulation resistance from 0 MΩ to 20 GΩ.
  • Test Voltages: Choose from 500 V, 1000 V, and 2500 V for your measurements.
  • Accuracy: With precision ranging from ±(3%+5) to ±(10%+5), this meter ensures your readings are reliable.

Additional Specifications

  • Display: Features a 2000-count LCD display with backlight for easy reading.
  • Indications: Low battery, high voltage, and overload indications promote safe operation.
  • Functions: Includes auto range, auto discharge, and AC voltage measurement capabilities.

Safety Precautions

It is essential to adhere to safety guidelines when using the UT502A, particularly concerning high voltage measurements.

Accessories

Typically, the UT502A includes standard accessories like batteries, test leads, and test probes specific to the model.

Specifications

  • Measuring Range
    • 0 MΩ to 20 GΩ
  • Test Voltages
    • 500 V, 1000 V, 2500 V
  • Accuracy 500V and 1000V (up to 99.9 MΩ)
    • ±(3%+5)
  • Accuracy 500V and 1000V (100 MΩ to 5.5 GΩ)
    • ±(5%+5)
  • Accuracy 2500V (up to 99.9 MΩ)
    • ±(3%+5)
  • Accuracy 2500V (100 MΩ to 9.9 GΩ)
    • ±(5%+5)
  • Accuracy 2500V (10.0 GΩ to 20.0 GΩ)
    • ±(10%+5)
  • Display
    • 2000-count LCD with backlight
  • Indications
    • Low battery, high voltage, overload
  • Functions
    • Auto range, auto discharge, AC voltage measurement
