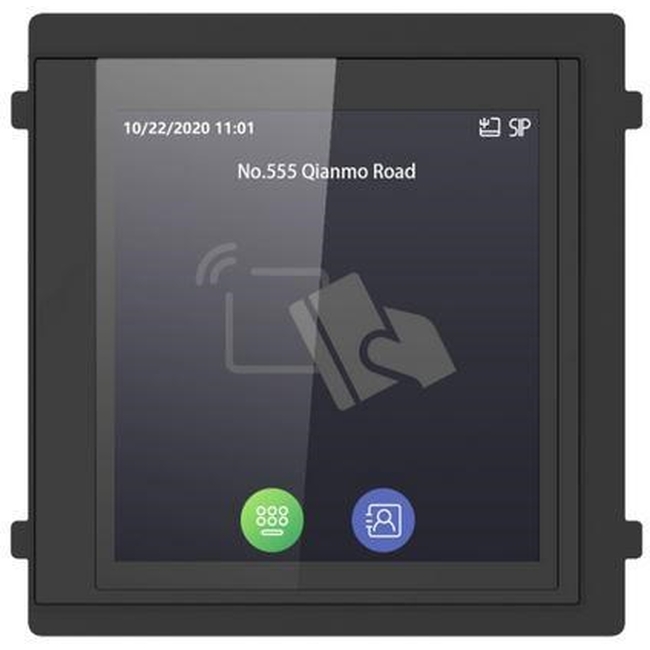

The Hikvision DS-KD-TDM Video Touch&Display Module is a versatile and feature-rich intercom system designed for various applications, including residential and commercial settings. This modular door station integrates a touch display module with an M1 card reader, providing a comprehensive solution for secure and convenient communication.

Key Features

• Touch Display Module: The DS-KD-TDM features a 4-inch touch screen that offers a rich information display. Users can easily dial numbers, enter pin codes for unlocking, and view contact lists. The intuitive interface ensures seamless navigation and operation.
• Card Reader: Equipped with an M1 card reader, the module supports secure access control. Users can swipe their cards to unlock the door, enhancing security and convenience.
• Customizable Installation: The DS-KD-TDM is designed to be modular, allowing for customizable installation options to suit various setups. This flexibility makes it suitable for different environments and configurations.
• Durability: The module is rated IP65, meaning it is dustproof and can withstand harsh weather conditions. Additionally, it has an anti-vandal rating of IK08, ensuring it can withstand physical impacts.

Technical Specifications

• Operating System: Linux
• ROM: 32 MB
• RAM: 128 MB
• Screen Size: 4 inches
• Screen Resolution: 480 x 480 pixels
• Dimensions: 100 H x 100 L x 35 D (mm)
• Power Source: 12V DC (provided by the modular door station)
• Power Consumption: 10W

Additional Details

• Compatibility: The DS-KD-TDM is compatible with the Hikvision 2nd generation modular door station, HIK-KD8003x, making it an all-in-one module that integrates seamlessly with the door station.
• Warranty and Support: The product comes with a 3-year warranty and support, providing peace of mind for users.

The Hikvision DS-KD-TDM Video Touch&Display Module is an ideal solution for those seeking a reliable, secure, and user-friendly intercom system. Its robust design, customizable installation options, and advanced features make it suitable for a wide range of applications.
