Detailed Description

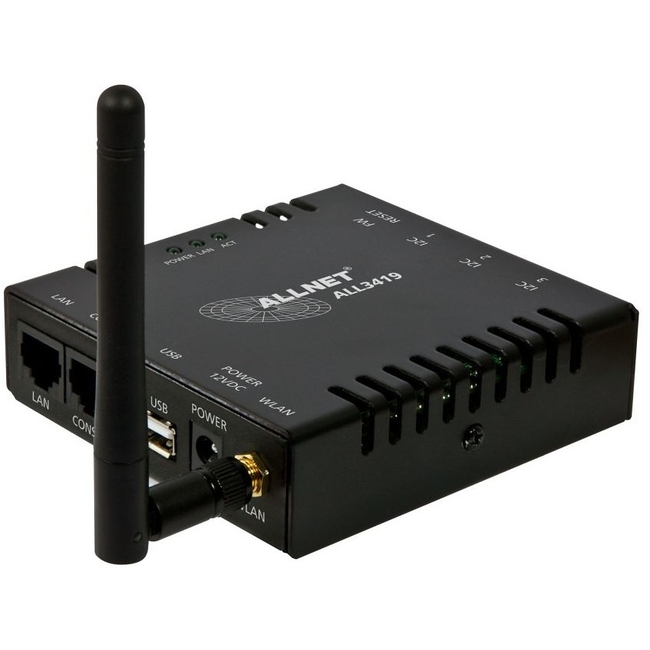

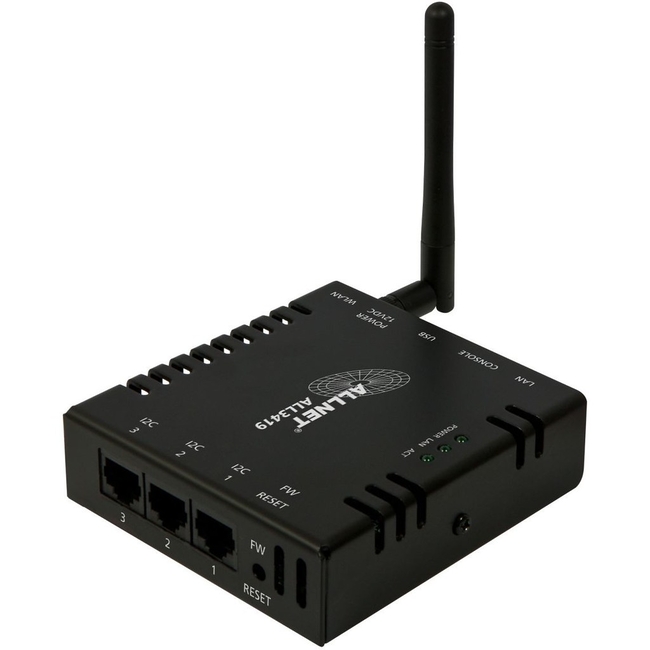

The ALLNET MSR Zentrale ALL3419 is a versatile and economical solution for temperature measurement and automation in building environments. Designed to integrate into a computer network via cable or wireless LAN, this IP thermometer/sensor center ensures easy access through an IP address. Housed in a robust metal casing, it provides protection against mechanical damage and ensures straightforward installation in confined spaces.
Key Features
- Temperature Measurement: Equipped with the ALL3006 temperature sensor, it measures temperature through an I2C RJ45 interface and features an internal sensor for monitoring system temperature.
- Humidity Detection: An optional ALL3018 sensor allows for humidity detection, enhancing monitoring capabilities.
- Flexible Installation: Supports multiple installations of various ALLNET units controlled through a single web GUI using JSON API.
- Network Connectivity: Features 3x RJ45 ports for sensor/actor modules, and a USB 2.0 port for additional wireless dongles.
- Wireless LAN: Supports 2.4 GHz wireless N with speeds up to 150 Mbps, complying with various security protocols.
- Power Supply: Operates on an external power supply (100~240 VAC, 50/60 Hz) with low power consumption.
- Environmental Specifications: Functions in a temperature range of 0~40 °C and stores within -20~60 °C, with specified humidity levels.
Additional Capabilities
- Software Modules: Supports optional free-software modules including SNMP and FTP Upload through JSON API.
- Web-Based Access: No extra software needed; access measured values directly through a web browser on the device.
Packaging Contents
- ALLNET ALL3419 IP Thermometer/Automation-Building-Main-Unit
- ALLNET ALL3006 temperature sensor
- WLAN antenna
- External power supply (12V, 1A)
- User instructions
The ALLNET MSR Zentrale ALL3419 stands out as a comprehensive solution for building automation. It combines robust temperature measurement with flexible installations and seamless network integration.
Specifications
-
Temperature Sensor
- ALL3006
-
I2C Interface
- RJ45
-
Internal Temperature Sensor
- Yes
-
Optional Humidity Sensor
- ALL3018
-
Network Ports
- 3x RJ45
-
USB Ports
- 1x USB 2.0
-
WLAN Frequency
- 2.4 GHz
-
Maximum WLAN Speed
- 150 Mbps
-
Power Supply
- 100~240 VAC
-
Power Consumption
- < 3 watts
-
Operating Temperature Range
- 0 ~ 40 °C
-
Storage Temperature Range
- -20 ~ 60 °C
-
Operating Humidity Range
- 10% ~ 85%
-
Storage Humidity Range
- 5% ~ 90%
