Detailed Description

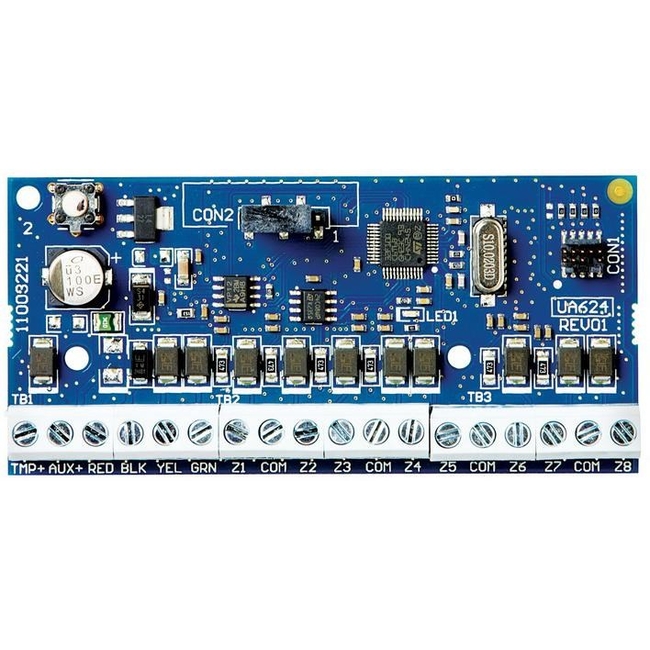

The DSC NEO 8 Zone Expand HSM2108 is a vital accessory designed for enhancing the functionality of your DSC PowerSeries NEO hardwired security system. This expansion module adds an additional 8 hardwired input zones, making it perfect for systems requiring more than the initial 8 zones offered by the main control panel.
One of the notable features of the HSM2108 is its flexible configuration. It supports various zone loop types, including no end-of-line, single end-of-line, and double end-of-line loops, using 5,600 Ohm resistors for each zone. This adaptability ensures that your security system can be customized to fulfill specific requirements.
Key Features
- Compatibility: Works with all DSC PowerSeries NEO control panels including HS2016, HS2032, HS2064, and HS2128.
- Installation Options: Can be installed within the same metallic cabinet as the alarm controller or in a separate enclosure.
- Compact Design: Measures 45mm by 92mm for easy integration.
- Power Efficiency: Operates on a voltage range of 10.8 to 12.5 VDC with a low board current draw of 40 mA.
The HSM2108 also includes a built-in tamper switch for enhanced security against unauthorized access. Moreover, the module allows for the connection of up to 15 units within the PowerSeries NEO system, facilitating extensive expansion.
Environmental Specifications
Operates within a temperature range of -10°C to 55°C and has a relative humidity of 93% non-condensing, ensuring optimal performance in various conditions.
Specifications
-
Compatibility
- All DSC PowerSeries NEO control panels (HS2016, HS2032, HS2064, HS2128)
-
Installation
- Within the same metallic cabinet or a separate enclosure (PC5003C)
-
Dimensions
- 45 mm x 92 mm
-
Voltage Range
- 10.8 to 12.5 VDC
-
Input Rating
- 130 mA
-
Board Current Draw
- 40 mA
-
Tamper Switch
- Built-in
-
Maximum Modules
- 15
-
Operating Temperature
- -10°C to 55°C
-
Humidity
- 93% non-condensing
-
Maximum Wire Length
- 305 meters
