The Victron Energy BlueSolar MPPT 100/30 is an MPPT solar charge controller designed for 24V battery systems. It provides up to 30 A charge current and uses Maximum Power Point Tracking (MPPT) for high conversion efficiency. Key features include electronic protections (overload, short-circuit,...
More

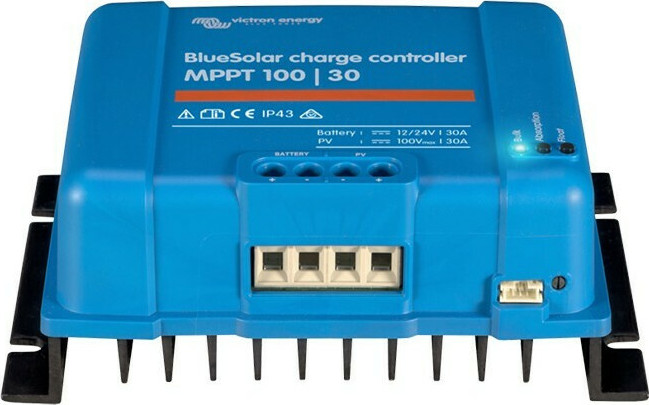

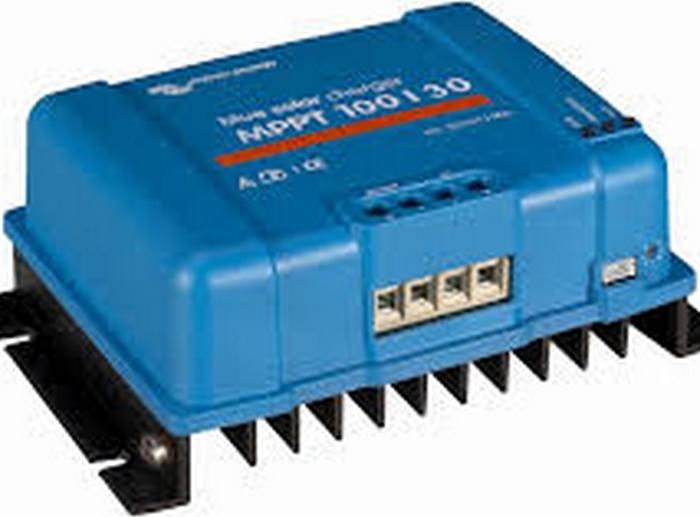

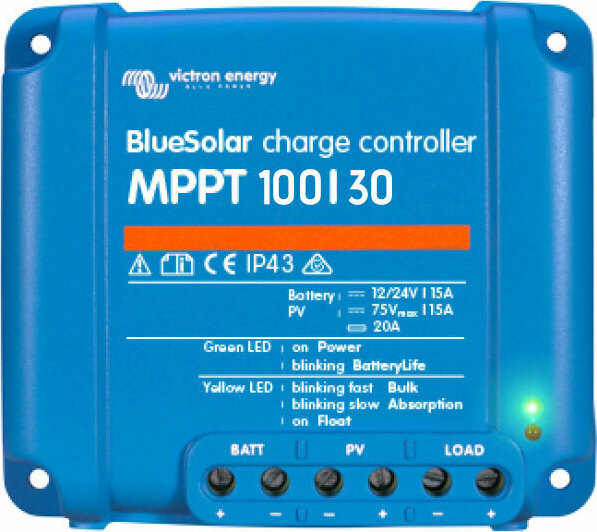

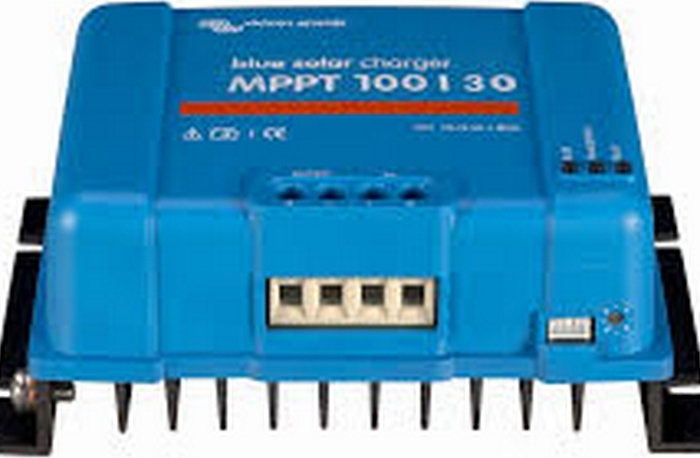

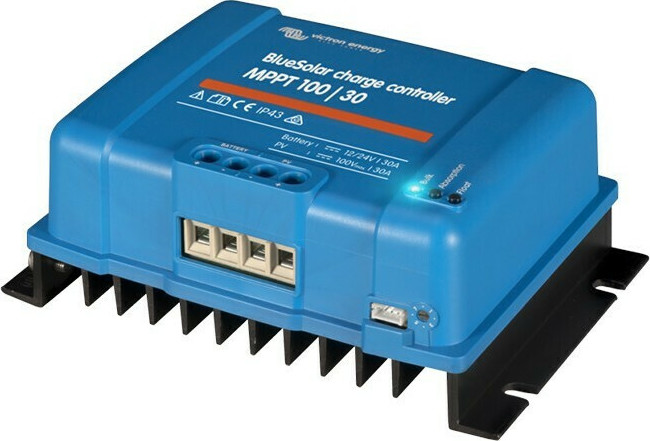

Victron Energy BlueSolar MPPT 100/30 Charge Controller 24V 30A (MPN: SCC020030200, EAN: 8719076025542)
Product Code: 1127684559
Available in 4 - 10 days
147,25 €
or
4,60€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Victron Energy BlueSolar MPPT 100/30 is an MPPT solar charge controller designed for 24V battery systems. It provides up to 30 A charge current and uses Maximum Power Point Tracking (MPPT) for high conversion efficiency. Key features include electronic protections (overload, short-circuit, reverse polarity, over-temperature), VE.Direct communication port for monitoring/configuration, temperature compensation, and an aluminum heatsink with plastic housing for thermal management. Model: BlueSolar MPPT 100/30. MPN: SCC020030200. EAN: 8719076025542. SKU: WLONONWCROF47.
-
TypeMPPT
-
Nominal Battery Voltage24 V
-
Nominal Charge Current30 A
-
ModelBlueSolar MPPT 100/30
-
Manufacturer Part Number (MPN)SCC020030200
-
EAN8719076025542
-
SKUWLONONWCROF47
-
Maximum PV open circuit voltage (Voc)100 V (model designation)
-
Communication PortVE.Direct (for monitoring and configuration)
-
Supported Battery TypesLead-acid (FLA, AGM, GEL) and Li-ion (configurable)
-
ProtectionsOverload, Short-circuit, Reverse polarity, Over-temperature
-
Thermal ManagementAluminum heatsink with vented plastic housing
-
MountingWall or panel mounting (screw mount)
-
Typical ApplicationOff-grid and standalone PV systems for 24V batteries
-
Dimensions (approx.)18.5 x 11.5 x 4.5 cm (L x W x H)
-
Product Weight1200 g
-
Package Weight1500 g
-
MaterialAluminum base heatsink and plastic enclosure
-
Compliance / CertificationCE (typical for Victron devices)
-
Operating Temperature RangeTypical industrial range (manufacturer spec recommended)
-
Display / LEDsStatus LEDs for operation and fault indication
Ratings
Description
The Victron Energy BlueSolar MPPT 100/30 is an MPPT solar charge controller designed for 24V battery systems. It provides up to 30 A charge current and uses Maximum Power Point Tracking (MPPT) for high conversion efficiency. Key features include electronic protections (overload, short-circuit, reverse polarity, over-temperature), VE.Direct communication port for monitoring/configuration, temperature compensation, and an aluminum heatsink with plastic housing for thermal management. Model: BlueSolar MPPT 100/30. MPN: SCC020030200. EAN: 8719076025542. SKU: WLONONWCROF47.
Technical Specifications
-
TypeMPPT
-
Nominal Battery Voltage24 V
-
Nominal Charge Current30 A
-
ModelBlueSolar MPPT 100/30
-
Manufacturer Part Number (MPN)SCC020030200
-
EAN8719076025542
-
SKUWLONONWCROF47
-
Maximum PV open circuit voltage (Voc)100 V (model designation)
-
Communication PortVE.Direct (for monitoring and configuration)
-
Supported Battery TypesLead-acid (FLA, AGM, GEL) and Li-ion (configurable)
-
ProtectionsOverload, Short-circuit, Reverse polarity, Over-temperature
-
Thermal ManagementAluminum heatsink with vented plastic housing
-
MountingWall or panel mounting (screw mount)
-
Typical ApplicationOff-grid and standalone PV systems for 24V batteries
-
Dimensions (approx.)18.5 x 11.5 x 4.5 cm (L x W x H)
-
Product Weight1200 g
-
Package Weight1500 g
-
MaterialAluminum base heatsink and plastic enclosure
-
Compliance / CertificationCE (typical for Victron devices)
-
Operating Temperature RangeTypical industrial range (manufacturer spec recommended)
-
Display / LEDsStatus LEDs for operation and fault indication
