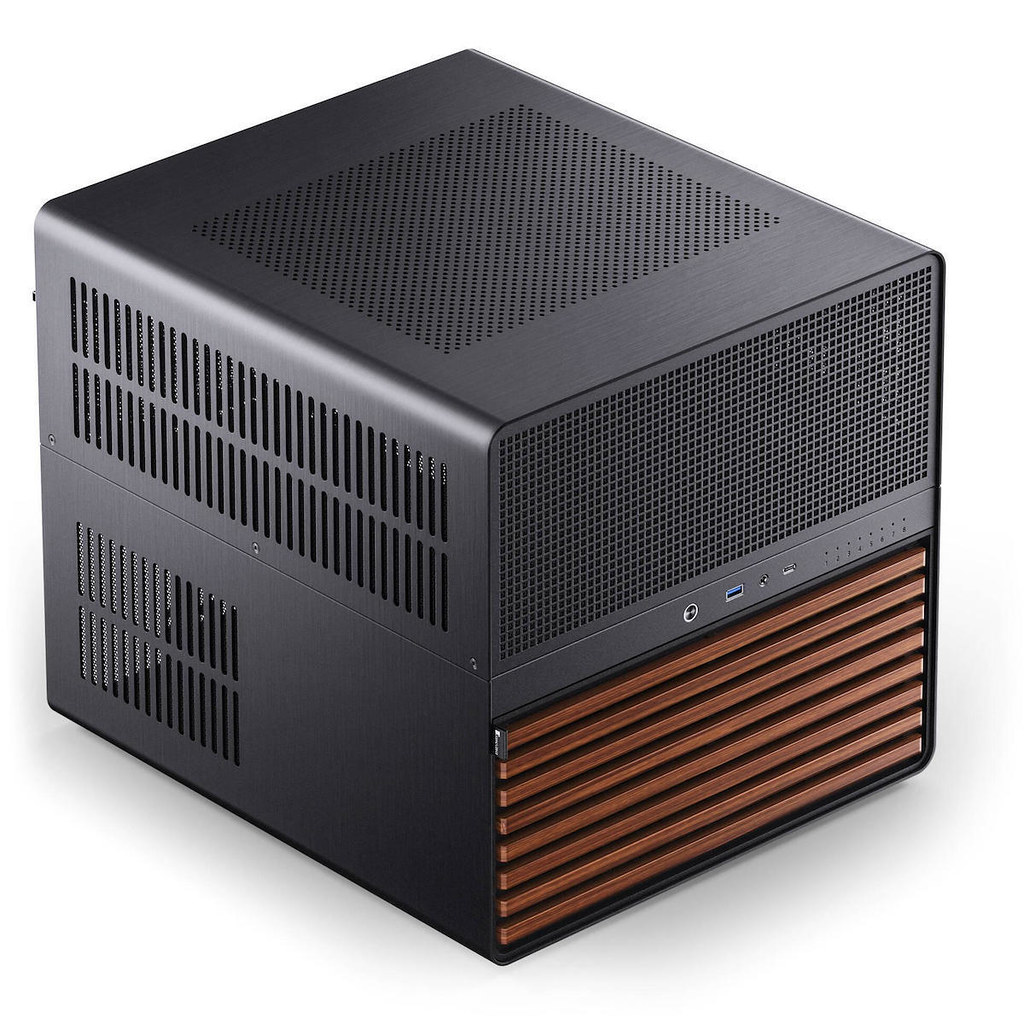

The Jonsbo N5 NAS-Enclosure is a high-performance NAS (Network Attached Storage) case that excels in extensive multi-drive storage configurations and rigorous computing setups. With dimensions measuring 355mm (W) x 403mm (D) x 350mm (H) (including a 6mm tall base), this chassis supports up to 12 x 3.5" HDDs and 4 x 2.5" SSDs, making it perfect for demanding NAS deployments.

Constructed from a combination of 1mm steel, 2.0mm aluminum alloy, and 8mm wood, the case guarantees durability and superior build quality. The innovative dual-compartment design separates storage from computing components, effectively optimizing cooling and cable management.

It accommodates a variety of motherboards, including ITX, Micro-ATX, ATX, and E-ATX, providing unmatched flexibility for diverse system builds. Moreover, the enclosure can support ATX power supplies measuring between 170mm to 240mm in length.

Cooling is a key consideration, with multiple fan mounting options available:

• Front: 2 x 120mm or 2 x 140mm fans
• Left: 3 x 120mm fans
• Right: 3 x 120mm fans
• Rear: 3 x 120mm fans (built-in)
• Additionally supports front radiators of 240mm or 280mm for liquid cooling.

The maximum hardware compatibility includes a CPU cooler height of up to 160mm and graphics card lengths between 325mm and 350mm, allowing for the installation of high-performance components.

Connectivity is facilitated through the front I/O, which includes USB 3.2 Gen2 Type-C (10Gbps) x1, USB 3.0 Type-A x1, and a combined audio jack for headset and microphone. With 8 PCI expansion slots, users can easily incorporate multi-GPU setups or additional expansion cards.

A standout internal feature is the drive bay design, which includes:

• Eight vertically stacked 3.5" HDDs connected to an internal PCB with dedicated SATA and power connectors
• A removable four-drive cage for extra 3.5" HDDs or SSDs, easily accessible from the front for hassle-free installation and maintenance.

Weighing in at approximately 7.5 kg (net), the case is finished in a sleek black with an aluminum top cover and a front mesh panel that enhances airflow.

In summary, the Jonsbo N5 NAS-Enclosure stands out as a versatile and robust choice for demanding NAS/storage and GPU computing environments, supporting a high number of drives and advanced cooling options.
