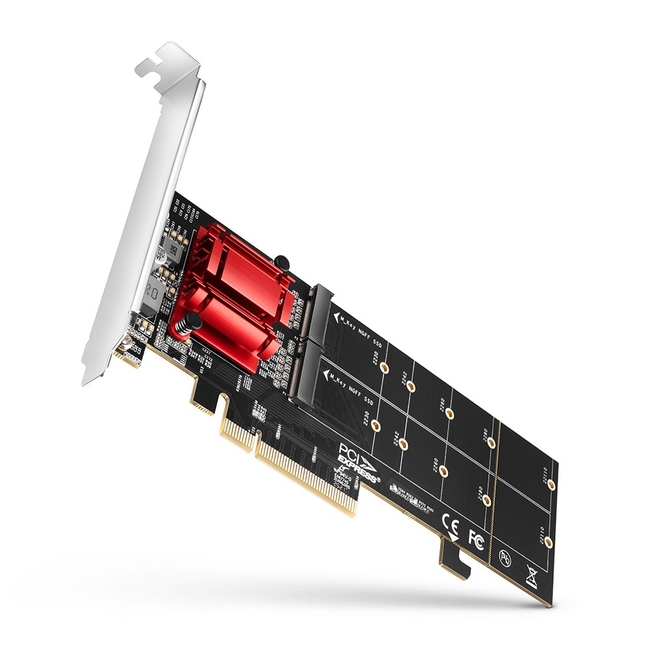

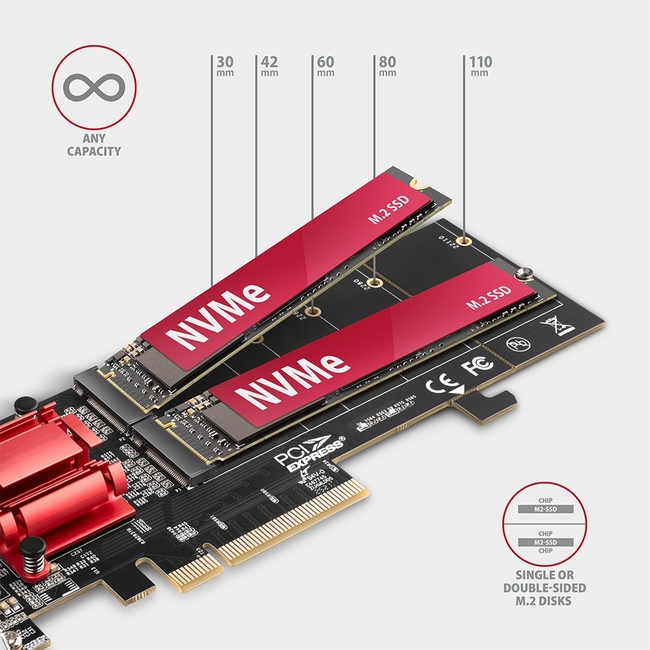

The Axagon PCEM2-ND is a remarkable internal PCIe adapter card that serves the purpose of connecting two NVMe M.2 SSDs to your desktop computer with ease. Designed with versatility in mind, this adapter card supports multiple M.2 SSD sizes including 2230, 2242, 2260, 2280, and 22110 mm.

Key Features:

• Compatible with M key and B+M key NVMe SSDs.
• No limitations on SSD capacity, allowing for expansive storage options.
• Facilitates booting from SSDs for enhanced performance.

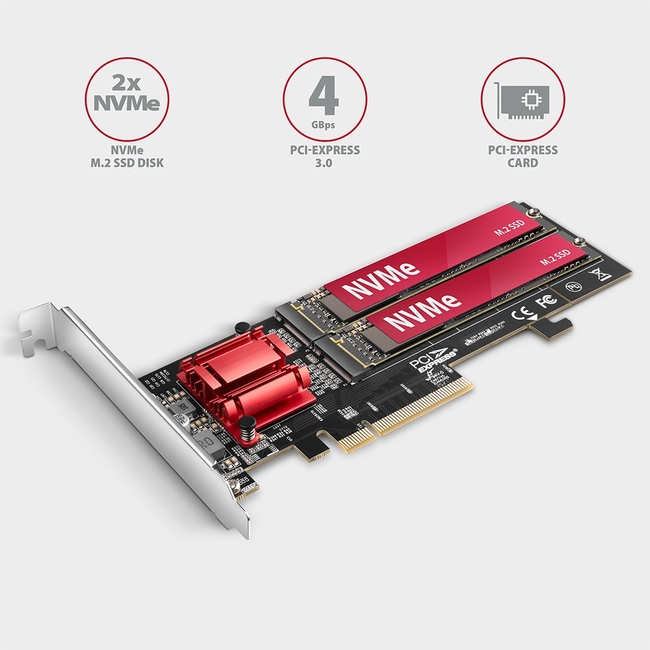

The PCEM2-ND leverages a high-quality Asmedia chip which guarantees universal compatibility with various motherboards. It operates seamlessly, even in systems that lack PCIe bifurcation support. Its PCI-Express 3.0 interface is backward compatible with PCIe 4.0, 2.x, and other versions, utilizing an 8-lane connection suitable for x8 and x16 PCIe slots.

Technical Specifications:

• Max data transfer rates reach up to 4000 MB/s, with real-world performance averaging around 3500 MB/s.

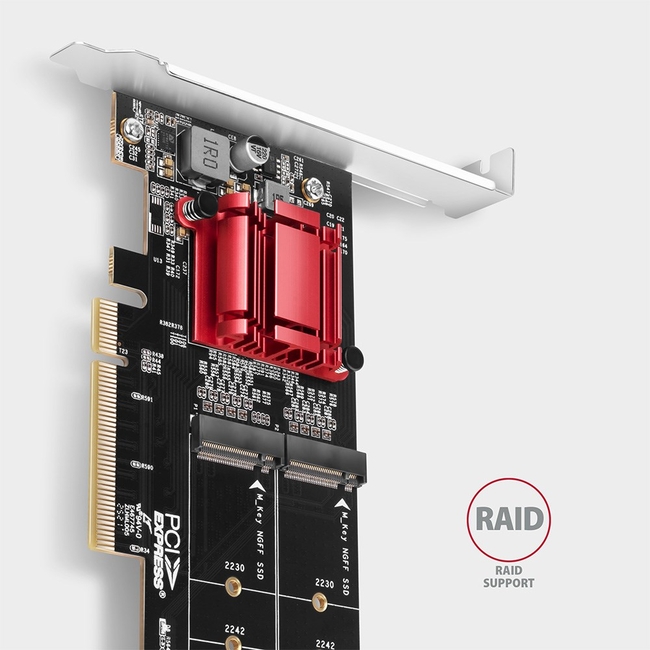

• Supports software RAID setups through the operating system.
• Features effective thermal management with coppered vents and a thermally conductive pad.
• Dual LED indicators show connection and data transfer status.

The adapter is powered solely through the PCIe slot, eliminating the need for external power sources, and it operates with a plug-and-play capability that requires no driver installation. With approximate dimensions of 180 mm (length), 64 mm (width), and 20 mm (height), this card is lightweight at around 75 grams, representing an efficient solution for enhancing desktop storage.
