Transceiver Origin Storage Origin 10Gbase-Lr Sfp+ Optical
| Installment plan | Amount / month |
|---|---|
| 2 | 25,91 € |
| 4 | 13,02 € |
| 6 | 8,73 € |
| 8 | 6,58 € |
| 10 | 5,29 € |
| 12 | 4,43 € |
| 18 | 3,00 € |
| 24 | 2,29 € |
| 36 | 1,57 € |
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description

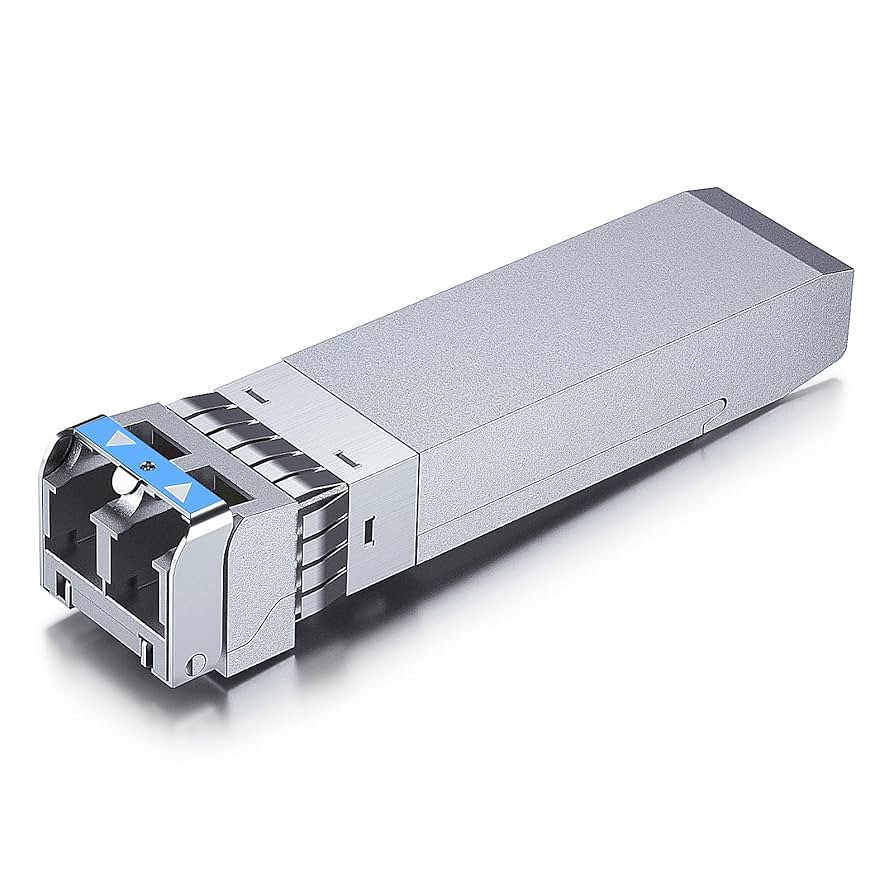

The ORIGIN 10GBASE-LR SFP+ OPTICAL is a high-performance fiber optic transceiver module designed for long-range 10 Gigabit Ethernet connectivity. It operates using the SFP+ form factor, making it suitable for integration in modern network switches, servers, and data center equipment.
This module supports data transmission rates up to 10.3125 Gbps, compliant with the IEEE 802.3ae 10GBASE-LR standard. This ensures reliable, high-speed data transfers over long distances. It is optimized for single-mode fiber (SMF) connections and operates at a wavelength of 1310 nm, allowing it to transmit data over fiber optic cables up to 10 kilometers without signal degradation.
The transceiver features a multiplexed design with a Distributed Feedback (DFB) laser transmitter and a PIN photodiode receiver, providing superior signal quality and stable performance. The optical interface uses a duplex LC connector for easy fiber cable attachment.
Key Technical Specifications
- Form Factor: SFP+ (Small Form-factor Pluggable Plus)
- Data Rate: Up to 10.3125 Gbps
- Wavelength: 1310 nm
- Maximum Link Distance: 10 km
- Transmitter Type: DFB laser
- Receiver Type: PIN photodiode
- Optical Connector: Duplex LC
- Power Consumption: ≤ 1 Watt
This transceiver is an excellent choice for enterprise networking, data centers, and telecom infrastructure where long-distance, high-speed fiber connectivity is required.
Specifications
-
Form Factor
- SFP+ (Small Form-factor Pluggable Plus)
-
Data Rate
- Up to 10.3125 Gbps
-
Wavelength
- 1310 nm
-
Maximum Link Distance
- 10 km
-
Transmitter Type
- DFB laser
-
Receiver Type
- PIN photodiode
-
Optical Connector
- Duplex LC
-
Power Consumption
- ≤ 1 Watt
-
Operating Case Temperature
- 0°C to 70°C
-
Storage Temperature Range
- -40°C to 85°C
-
Voltage Supply
- 3.3 V ± 0.16 V
-
Compliance Standards
- IEEE 802.3ae 10GBASE-LR, SFF-8431, SFF-8432, SFF-8472, RoHS, Class 1 Laser Safety
-
Diagnostics
- Digital Diagnostics Monitoring (DDM/DOM) supported
-
Bit Error Rate (BER)
- < 1E-15
-
Hot-Pluggable
- Yes
