Sku: 1116553953
Τόρνος Holzmann ED300ECO 230V Table lathe
1.037,59 €
Up to 36 instalments by credit card x 32,40€ / month
| Installment plan | Amount / month |
|---|---|
| 2 | 533,62 € |
| 4 | 268,23 € |
| 6 | 179,77 € |
| 8 | 135,54 € |
| 10 | 109,01 € |
| 12 | 91,32 € |
| 18 | 61,85 € |
| 24 | 47,12 € |
| 36 | 32,40 € |
Product Availability
για καλύτερη τιμή!
Need help?
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
Call us now!
Methods of Pickup/Shipment
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Shipping to your location (Calculate shipping):
Share this:
Detailed Description

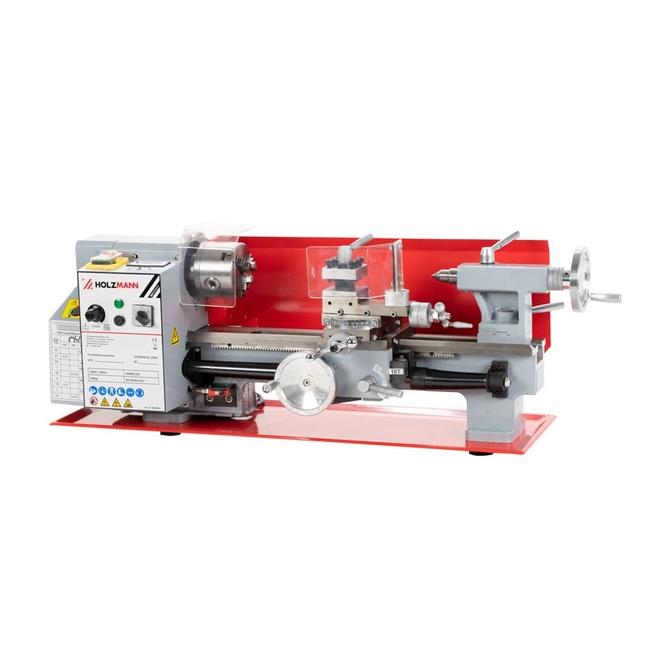

The Holzmann ED300ECO 230V Tischdrehmaschine is a compact and versatile metal lathe, perfect for precision machining and DIY projects. Designed for both professional and amateur machinists, this machine combines functionality with a small footprint, making it ideal for limited workshop spaces.
Key features of the Holzmann ED300ECO include:
- High Precision: The prism guide ways are inductively hardened and precision ground, ensuring exceptional durability.
- Adjustable Spindle: The main spindle is hardened and supported by adjustable precision ball bearings, achieving less than 0.009 mm roundness accuracy.
- Versatile Operation: This lathe allows for threading and automatic longitudinal turning thanks to its lead screw.
- Continuous Speed Regulation: Users can adjust the spindle speed between 50 to 2,500 RPM, offering precise control.
The machine is equipped with a maintenance-free motor and a user-friendly control panel that facilitates right-hand and left-hand operation.
Furthermore, the design allows for moving the reaper for keel turning tasks. With a range of compatible accessories, the Holzmann ED300ECO is suited for a multitude of metalworking endeavors.
Specifications
-
Motor Power (S1)
- 400W
-
Motor Power (S6)
- 560W
-
Voltage
- 230V, 50Hz
-
Total Dimensions
- 760 x 230 x 254 mm
-
Bed Width
- 85 mm
-
Distance Between Centers
- 300 mm
-
Enter Height
- 90 mm
-
Max. Swing Over Bed
- 300 mm
-
Spindle Speed Range
- 50 to 2500 RPM
-
Spindle Speed Regulation
- Continuous
-
Weight
- 40 kg
-
Product Group
- Metal Lathe
-
Series
- Holzmann ED
-
Color Options
- Grey and Red
-
Spindle Type
- MK 3 Spindle
-
Max. Workpiece Diameter
- 80 mm
-
Max. Workpiece Length
- 300 mm
-
Spitzenh?he (Spindle Height)
- 90 mm
-
Spitzenweite (Spindle Width)
- 300 mm
-
Functions
- Turning, Drilling
-
Included Accessories
- Metal Change Gears, Reaper
-
Operating Voltage
- 230V
