Detailed Description

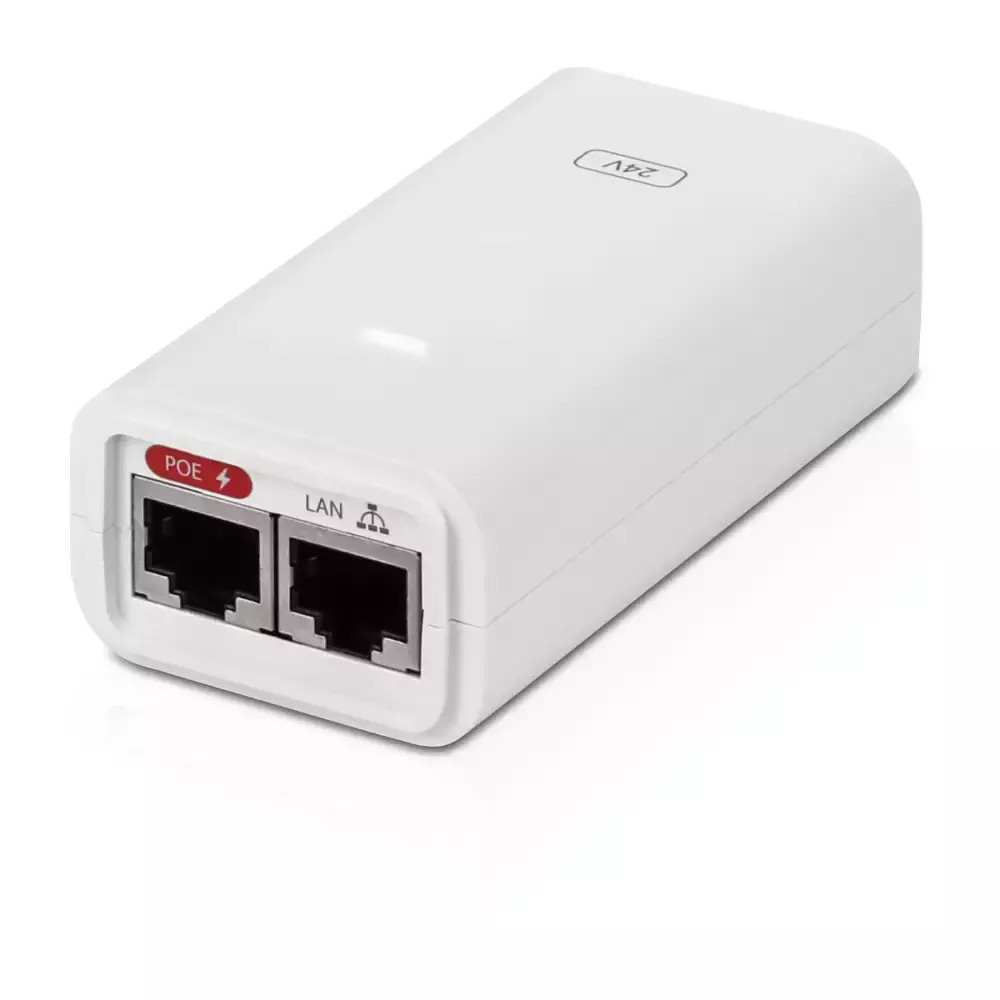

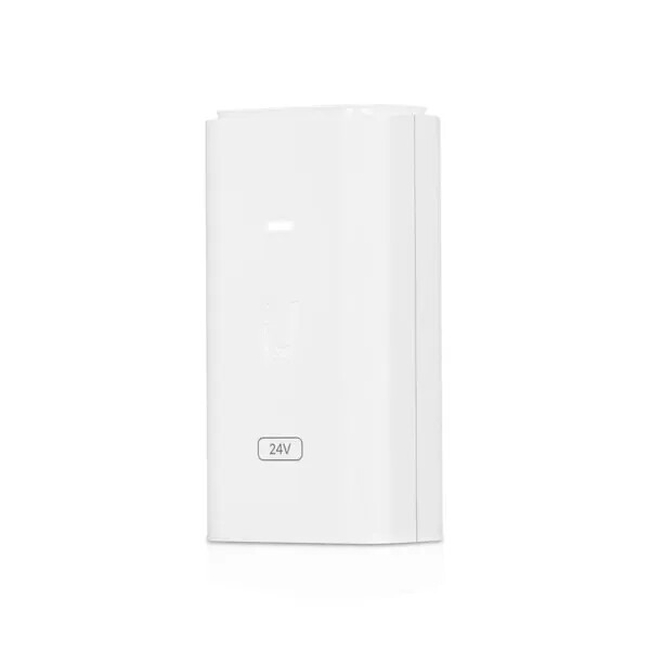

The Ubiquiti Networks POE-24-12W-G-WH is a high-efficiency Power over Ethernet (PoE) adapter designed to deliver stable power and data connectivity.
This adapter is perfect for establishing a reliable connection with Ubiquiti devices, requiring 24V passive PoE.
Here are some of its key features:
- Compact and lightweight, with dimensions of 89 x 46 x 33 mm and a weight of 75 grams.
- Universal input voltage range of 100-240V AC at 50/60 Hz, making it suitable worldwide.
- Steady 24V DC output at 0.5A, providing a total power output of 12W.
- Plug-and-play design for easy installation.
- Compatible with a wide range of Ubiquiti devices.
This PoE adapter is built with multiple safety features:
- Surge and clamping protection to safeguard connected devices.
- Maximum surge discharge of 1500A to handle high surge currents.
- AC cable with earth ground for additional safety.
Overall, the POE-24-12W-G-WH is a reliable and efficient solution for powering your Ubiquiti products.
Specifications
-
Dimensions
- 89 x 46 x 33 mm
-
Weight
- 75 grams
-
Output Voltage
- 24V DC @ 0.5A
-
Power Output
- 12W
-
Rated Voltage
- 100-240V AC @ 50/60Hz
-
Input Current
- 0.3A @ 120V AC, 0.2A @ 240V AC
-
Inrush Current
- <30A peak @ 120V AC, <60A peak @ 230V AC
-
Efficiency
- 80%+
-
Output Ripple
- 1% Max.
-
Switching Frequency
- 50 kHz
-
Line Regulation
- ? 3%
-
Load Regulation
- ? 5%
-
Storage Temperature
- -30 to 70°C
-
Ambient Operating Temperature
- 0 to 40°C
-
Operating Humidity
- 35 to 95% noncondensing
-
AC connector
- IEC-320 C6
-
Data IN / PoE
- RJ45 shielded socket
-
Surge protection
- Difference and common mode
-
Clamping protection
- 11V data, 60V power
-
Max. surge discharge
- 1500A (8/20 μs) power
-
Peak pulse current
- 36A (10/1000 μs) data
-
Shunt capacitance
- <5 pF data
-
Response time
- <1 ns
-
Certifications
- CE, FCC, IC, UL
