Καλώδιο Οπτικής Ίνας Good Connections LWL Dpx Patchk. OM5 MM 50/125? LC/LC 0,5m
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description

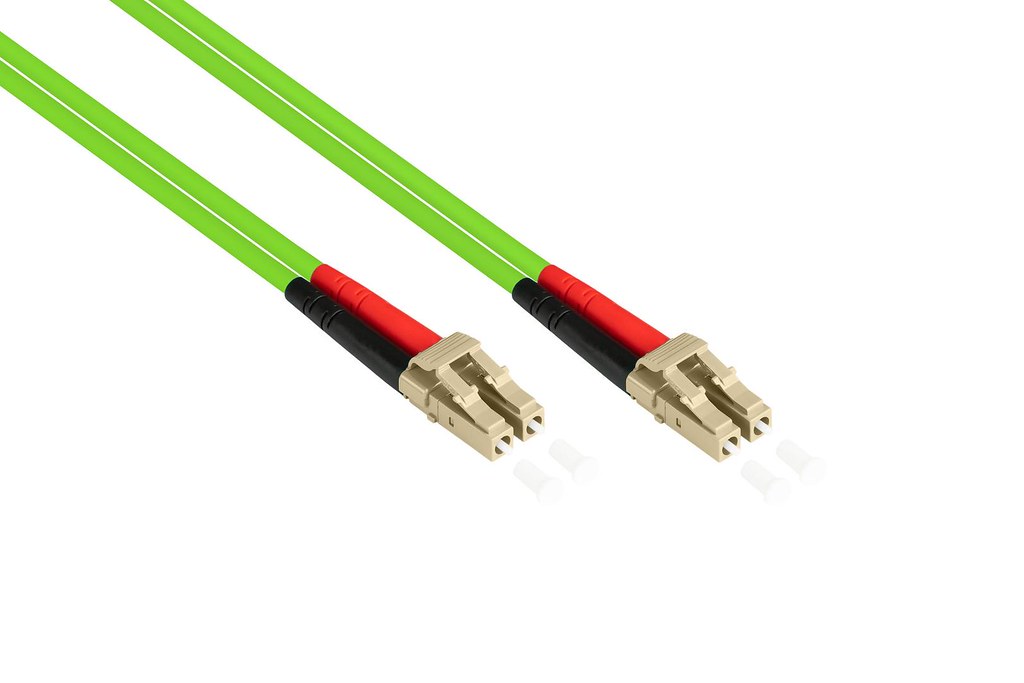

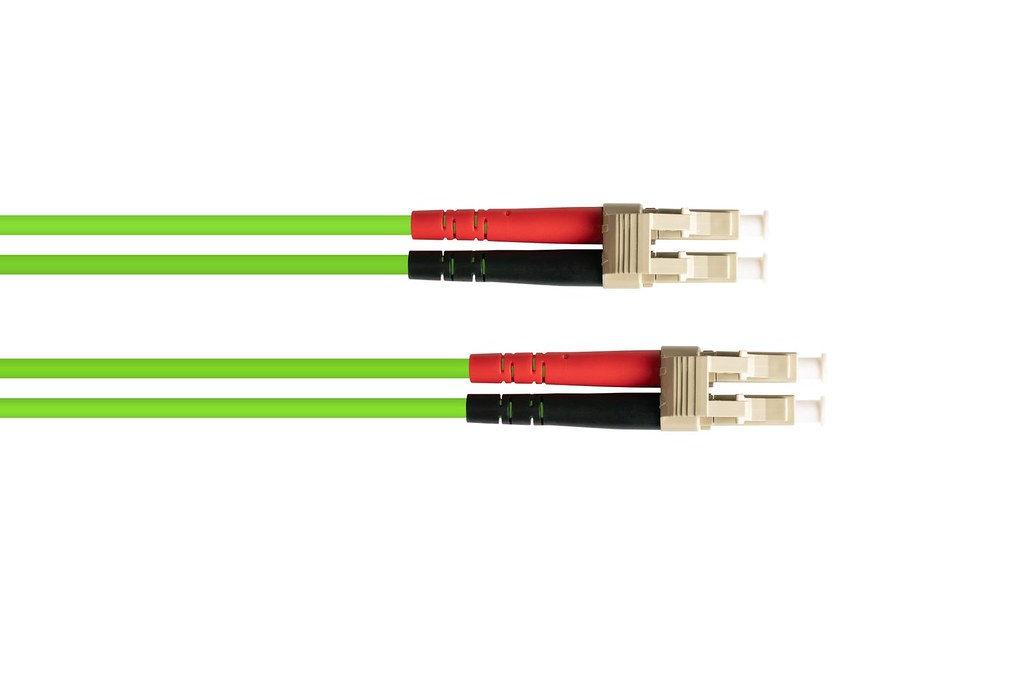

The Good Connections LWL Dpx Patchk. OM5 MM 50/125? LC/LC 0.5m is a high-performance multimode fiber optic patch cable designed to support the latest data transmission standards. This product is specifically rated as OM5, which stands for "Wideband Multimode Fiber" and is optimized for applications requiring higher bandwidth and longer transmission distances.
Key Features:
- Fiber Type: OM5 Wideband Multimode Fiber
- Core Diameter: 50 micrometers (΅m)
- Cladding Diameter: 125 ΅m
- Connectors: Duplex LC connectors on both ends
Its safety features include a Low-Smoke Zero-Halogen (LSZH) jacket material, reducing smoke emission during combustion. The cable's lime green color makes it easily identifiable as an OM5-rated cable.
Optical Specifications:
- Minimum OFL Bandwidth: 3,500 MHz*km at 850 nm
- Minimum EMB: 4,700 MHz*km at 850 nm
- Supports Shortwave Wavelength Division Multiplexing (SWDM)
This patch cable is backward compatible with OM3 and OM4-rated fiber solutions, ensuring seamless integration with existing networks and is ideal for high-speed data networks, including 40/100 Gb Ethernet applications.
Specifications
-
Fiber Type
- OM5 Wideband Multimode Fiber
-
Core Diameter
- 50 micrometers (΅m)
-
Cladding Diameter
- 125 micrometers (΅m)
-
Connectors
- Duplex LC connectors
-
Cable Length
- 0.5 meters
-
Jacket Material
- Low-Smoke Zero-Halogen (LSZH)
-
Jacket Color
- Lime green
-
Endface Polish
- PC (Precision Polish)
-
Minimum Bend Radius (dynamic)
- 20 mm
-
Minimum Bend Radius (static)
- 10 mm
-
Backward Compatibility
- OM3 and OM4-rated solutions
-
OFL Bandwidth
- Minimum 3,500 MHz*km at 850 nm
-
Effective Modal Bandwidth
- Minimum 4,700 MHz*km at 850 nm
