Καλώδιο Οπτικής Ίνας Equip LWL PatchCable LC->ST 2.00m Singlemode Duplex OS2 ge polybag
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description

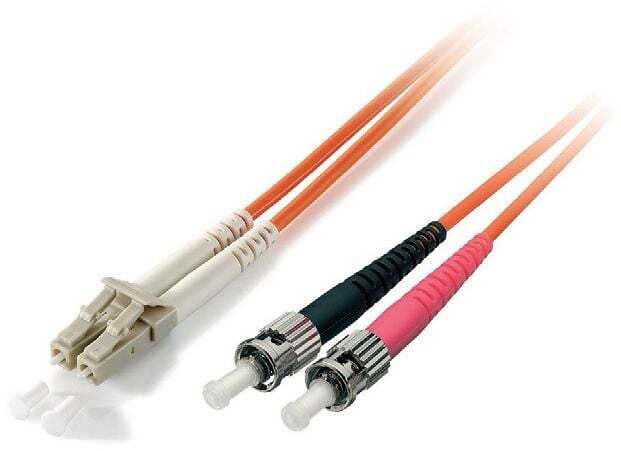

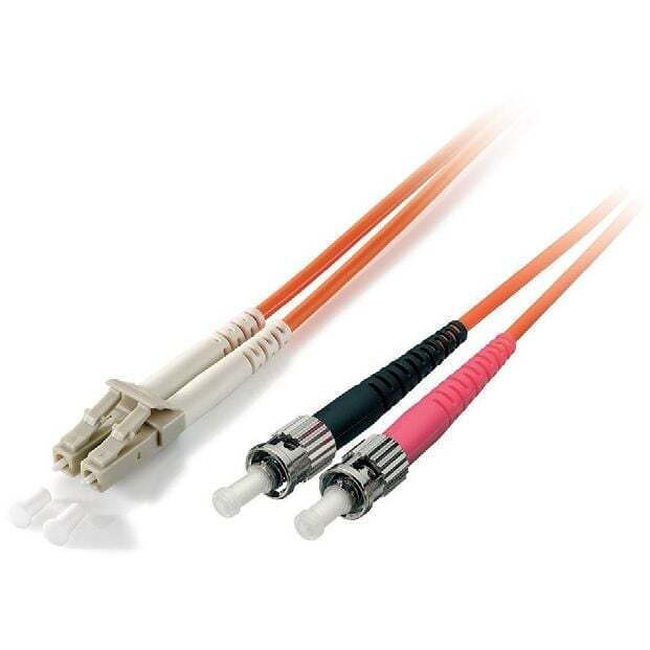

The Equip LWL Patchkabel LC->ST 2.00m Singlemode Duplex OS2 ge Polybeutel is a high-quality, pre-terminated fiber optic patch cable designed for single-mode fiber optic networks. This product connects LC connectors to ST connectors with ease.
Made from superior materials, it provides low return and insertion loss. Below are key features:
- Fiber Type: OS2 Single-mode Fiber
- Core Diameter: 9 microns
- Cladding Diameter: 125 microns
- Maximum Attenuation: 0.3 dB/km at 1550 nm and 1310 nm
This cable is versatile, suitable for various deployment needs, especially in high-speed data transmission scenarios. Its connectors include:
- Connector 1 (LC): Ceramic Ferrule, 1.25mm UPC polish
- Connector 2 (ST): Long cylindrical, spring-loaded connector with a 2.5mm ferrule
In addition, it features a low smoke zero halogen jacket, ensuring safety during installation. The performance characteristics highlight its reliability:
- Maximum Connector Loss: 0.50 dB
- Typical Return Loss: -55 dB
Overall, the Equip LWL Patchkabel offers enhanced data transmission capabilities, making it suitable for data centers and telecommunications networks.
Specifications
-
Fiber Type
- OS2 Single-mode Fiber
-
Core Diameter
- 9 microns
-
Cladding Diameter
- 125 microns
-
Bandwidth
- 500 MHz km at 1310 nm
-
Maximum Attenuation
- 0.3 dB/km at 1550 nm
-
Optical Mode Type
- Single-mode
-
Connector 1 (LC)
- Ceramic Ferrule, 1.25mm UPC
-
Connector 2 (ST)
- 2.5mm UPC
-
Cable Spec
- I-VH 2 x 1E
-
Jacket Material
- Low Smoke Zero Halogen (LSZH/LSOH)
-
Jacket Color
- Yellow
-
Jacket OD
- 2.0mm
-
Maximum Connector Loss
- 0.50 dB
-
Typical Connector Loss
- 0.30 dB
-
Typical Return Loss
- -55 dB
-
Cable Length
- 2 meters
-
Strand Count
- 2 Fiber Strands
-
UL Rating
- OFNR
-
Compliance
- ROHS compliant
