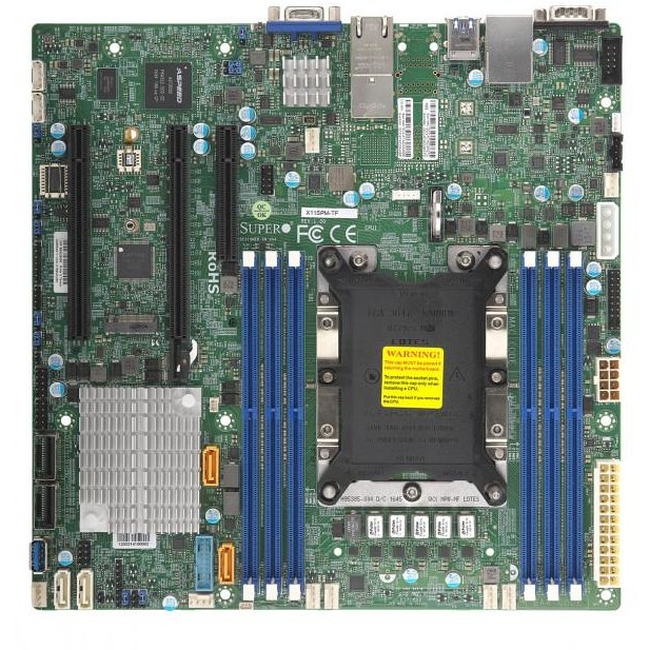

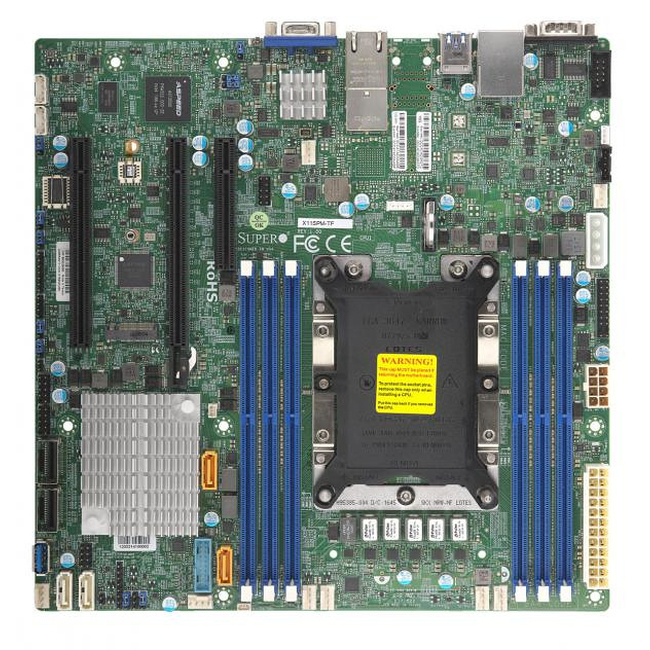

The Supermicro MBD-X11SPM-TF-B is an exceptional motherboard tailored for high-performance computing in embedded and data center environments. It is designed under the Supermicro X11SPM series, which provides support for 2nd Generation Intel Xeon Scalable Processors. With a single socket LGA-3647 and a CPU TDP support of up to 165W, it is well-equipped for demanding workloads.

Key Features

• CPU Support: Compatible with Intel Xeon Scalable Processors up to 165W TDP, enabling handling of up to 28 cores.
• Memory: Six DIMM slots support up to 1.5TB of 3DS ECC RDIMM or LRDIMM at DDR4-2933MHz.
• Chipset: Utilizes Intel C622 chipset, providing 12 SATA3 ports at 6Gbps.
• Expansion Slots: Includes two PCIe 3.0 x16 slots and one PCIe 3.0 x8 slot for various cards.
• Networking: Features two 10GbE LAN ports for swift networking, powered by Intel controllers.

Additional Features

• Power Management: Supports 12V DC input with advanced management features.
• Fan Control: Eight 4-pin fan headers for efficient cooling management.
• Operating Environment: Withstands temperatures from 0°C to 60°C.
• Software Support: Comes with SuperDoctor 5, NMI, and other management utilities.
