Sku: 1173522813
Μικροηλεκτρονικά Allnet Radxa CM3i industrial embedded SOM 4GB RAM /16GB EMMC Wifi/BT
182,79 €
Up to 36 instalments by credit card x 5,71€ / month
| Installment plan | Amount / month |
|---|---|
| 2 | 94,01 € |
| 4 | 47,25 € |
| 6 | 31,67 € |
| 8 | 23,88 € |
| 10 | 19,20 € |
| 12 | 16,09 € |
| 18 | 10,90 € |
| 24 | 8,30 € |
| 36 | 5,71 € |
Product Availability
για καλύτερη τιμή!
Need help?
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
Call us now!
Methods of Pickup/Shipment
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Share this:
Detailed Description

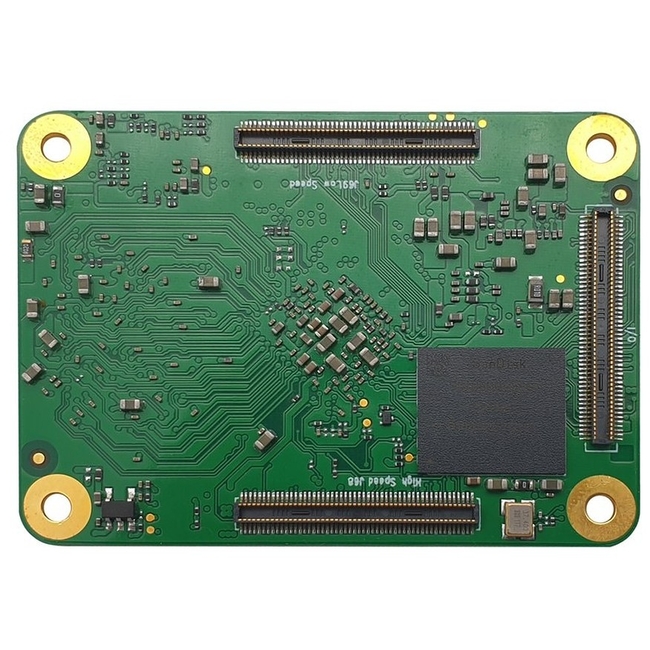

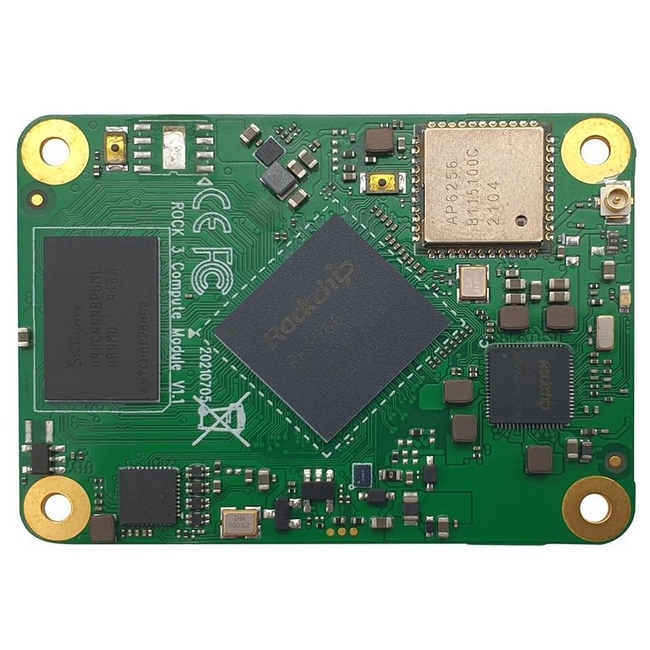

The ALLNET RADXA CM3i industrial embedded System on Module (SoM) offers a remarkable blend of performance and versatility, making it ideal for numerous industrial applications. This compact module integrates several core components to deliver exceptional computing capabilities.
Key Features:
- Processor: Powered by the Rockchip RK3568(J) SoC, featuring a 64-bit Quad Cortex-A55 core running at 2.0 GHz.
- Memory: Up to 8GB LPDDR4 RAM, with variants including 4GB.
- Storage: Supports up to 128GB eMMC storage, with models having 16GB.
- Connectivity: Optional wireless capabilities include dual-band Wi-Fi (2.4GHz and 5.0GHz) and Bluetooth 5.0, along with Gigabit Ethernet.
Expanded Interfaces:
- USB: 1 x USB 2.0 and 1 x USB 3.0.
- PCIe: 1 x PCIe Gen 2 and Gen 3 support.
- SATA: Two SATA ports, ideal for storage expansion.
- GPIO: 50 GPIO pins available for further connectivity.
The CM3i also boasts multimedia capabilities, supporting high-definition video formats and multiple display interfaces. Its compact form factor of 70mm x 40mm, along with a wide operating temperature range of -40°C to 85°C, ensures reliable performance across diverse environments.
Specifications
-
Processor
- Rockchip RK3568(J) SoC, 64-bit Quad Cortex-A55, 2.0 GHz
-
Memory
- 4GB LPDDR4 RAM (up to 8GB available)
-
Storage
- 16GB eMMC (up to 128GB available)
-
Wireless LAN
- 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac
-
Bluetooth
- Bluetooth 5.0
-
Ethernet
- Gigabit Ethernet PHY
-
USB
- 1 x USB 2.0, 1 x USB 3.0
-
PCIe
- 1 x PCIe 1-lane Host Gen 2, 1 x PCIe 2-lane Host Gen 3
-
SATA
- 2 x SATA ports
-
GPIO
- 50 x GPIO pins
-
Display
- 1 x HDMI 4K x 2K@60Hz, 1 x eDP, 2 x MIPI DSI
-
Audio
- LINEOUT, I2S, PDM interfaces
-
Video Decoding
- VP9/H.264/H.265 at 4K@60fps
-
Video Encoding
- H.264/H.265 at 1080P@100fps
-
Form Factor
- 70mm x 40mm
-
Input Voltage
- 5V DC
-
Operating Temperature
- -40°C to 85°C
