Μικροηλεκτρονικά Allnet Radxa CM3 Model A Rock3 RK3566 8GB RAM /32GB EMMC, Wifi+BT, RM116-D8E32W2
| Installment plan | Amount / month |
|---|---|
| 2 | 109,57 € |
| 4 | 55,08 € |
| 6 | 36,91 € |
| 8 | 27,83 € |
| 10 | 22,38 € |
| 12 | 18,75 € |
| 18 | 12,70 € |
| 24 | 9,67 € |
| 36 | 6,65 € |
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description

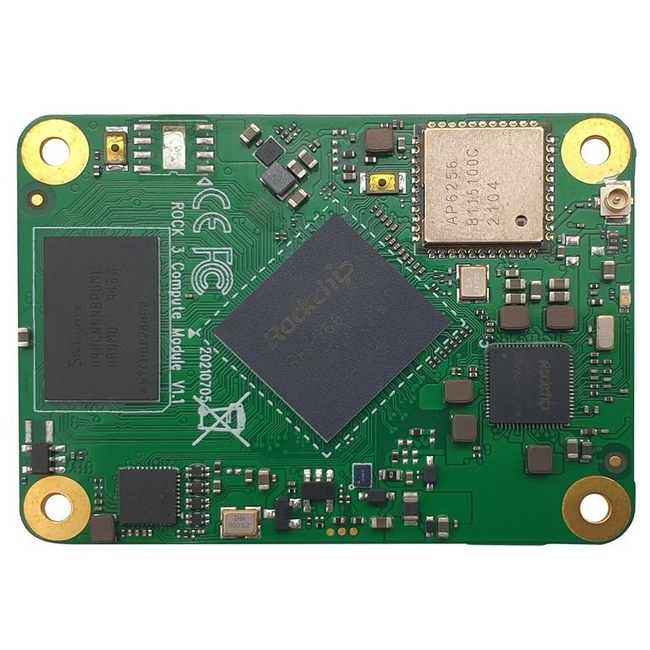

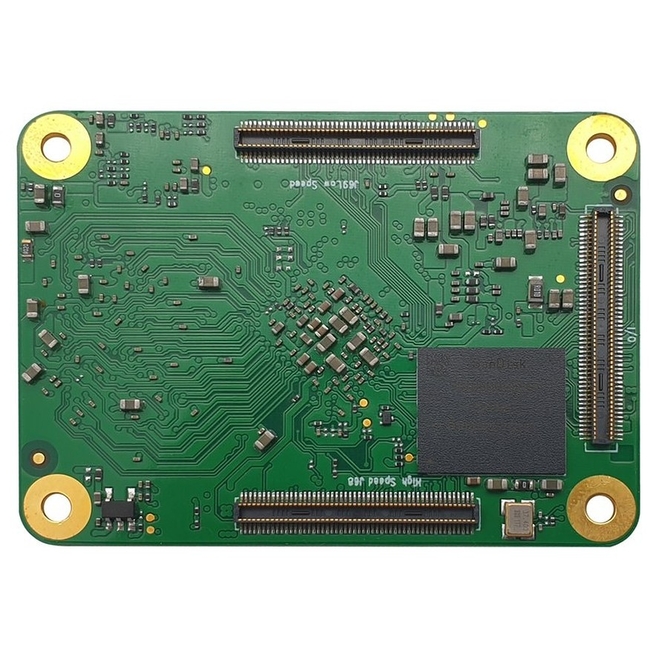

The ALLNET Radxa CM3 Model A Rock3 RK3566 Compute Module is a powerful and versatile development board tailored for Internet of Things (IoT) projects. This module is based on the Rockchip RK3566 System on Chip (SoC), featuring a quad-core Arm Cortex-A55 CPU, a Mali-G52 GPU, and an advanced Neural Processing Unit (NPU) that achieves 1 TOPs@INT8 performance.
With an optimal operating temperature ranging from 0°C to 80°C, it is well-suited for demanding applications. However, for sustained high-performance use, incorporating external cooling mechanisms like heat sinks or fans may be essential.
Key Technical Specifications
- CPU: Quad-core Arm Cortex-A55 (ARMv8) 64-bit @ 2.0GHz
- GPU: Arm Mali-G52-2EE
- NPU: 1 TOPs@INT8
- Memory: Up to 8GB LPDDR4X
- Storage: 512GB eMMC 5.1
Connectivity and Interfaces
- Wireless: Wi-Fi 5 and Bluetooth 5.0
- Ethernet: 1000M Ethernet PHY
- USB: USB 3.0, SATA, PCIe, USB 2.0
This makes the ALLNET Radxa CM3 Model A an ideal choice for developers looking to implement innovative solutions in various IoT domains.
Specifications
-
CPU
- Quad-core Arm Cortex-A55 (ARMv8) 64-bit @ 2.0GHz
-
GPU
- Arm Mali-G52-2EE
-
NPU
- 1 TOPs@INT8
-
Memory
- Up to 8GB LPDDR4X
-
Storage
- 512GB eMMC 5.1
-
Display
- HDMI 2.0, eDP 1.3, Dual MIPI-DSI
-
Multi-Media
- 4K H.265/H.264/VP9 video decoder
-
Video Input
- 8M Pixel ISP
-
Audio Interface
- I2S0/I2S1 with 8 channels
-
Wireless
- Wi-Fi 5 and Bluetooth 5.0
-
Ethernet
- 1000M Ethernet PHY
-
USB Interfaces
- One USB 3.0 host, two SATA 3.0, one PCIe 2.1, two USB 2.0 host
-
Other Interfaces
- 8 x I2C, 4 x SPI, 8 x UART
Άμεσα Διαθέσιμα
